ansi 60 degree pipe fitting flanged elbow dimensions
Production Name |
Slip-on welding flange;welding nece flange;socket welding flange;threaded flange;lapped flange;blind ;spectacle blind,etc. |
Size Range |
From ½” up to 300” |
Material Code: | |
1CARBON STEEL |
ASTM A105, ASTM A350 LF1/ LF2/LF3, ASTM |
|
ASTM A694 F42/F46/F52/F56/F60/F65/F70 |
2 ALLOY STEEL |
ASTM A182 F1, F5, F7, F9, F11, F12, F22, F91 |
3 SPECIAL ALLOY |
Inconel 600, Inconel 625, Inconel 718, Inconel X750, Incoloy 800, |
|
Incoloy 800H, Incoloy 825, Hastelloy C276, Monel 400, Monel K500 |
|
WPS 31254 S32750, UNS S32760 |
4 STAINLESS STEEL |
ASTM A182 F304/304L, F316/316L, F321, F347, |
5 Duplex super duplex stainless steel |
ASTM A 182 F51/UNS S31803, F53/UNS S32F50, F55/UNS S32F60 |
STANDARDS |
ANSI, ISO, JIS, DIN, BS,GB, SH, HG,QOST,ETC. |
CE and certification: |
ISO9001:2000 , API , BV , SGS, LOIYD |
Applications range: |
Petroleum,chemical,power,gas,metallurgy,nstruction,water and nuclear power etc. |
package |
seaworthy package,Plywood Cases or pallet or as per customers requirement |
quality |
High level |
The third party inspection: |
BV,SGS,LOIYD,TUV,and other party alloyed by clients. |
Delivery Time: |
At the earliest ,within the period required by customer. |
Remark: |
Specialized NACE & HIC Fittings for Off-Shore Applications |

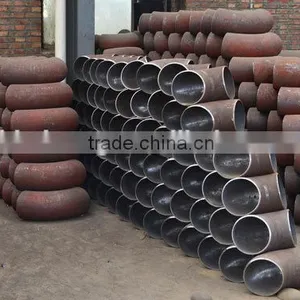

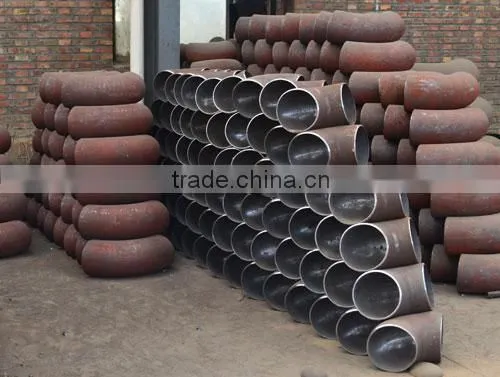

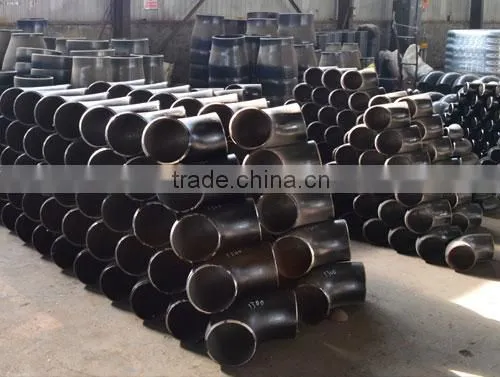

are mainly used for connecting two pipes or tubes.Short radius elbows and long radius elbows are available here.Pipe elbows are made of carbon steel,alloy steel,stainless steel,or others.
Size
Seamless elbow:1/2" - 24" DN15-DN600
Welded Elbow: 4"-72" DN150-DN1800
Wall Thinkness
sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s
Maximum thickness: 120mm
Materials
Carbon steel: ASTM/ASME A234 WPB
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stanless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Low-temperature steel:ASTM/ASME A402 WPL 3-WPL 6
High performance: ASTM/ASME A860 WPHY 42-46-52-60-65-70
Specifications for Pipe Elbow
Production range
Outside diameter 1/2"-72" DN150-DN1800
Wall thickness 2mm~120mm
Bending radius R=1D~10D
Product angle 0-180deg
