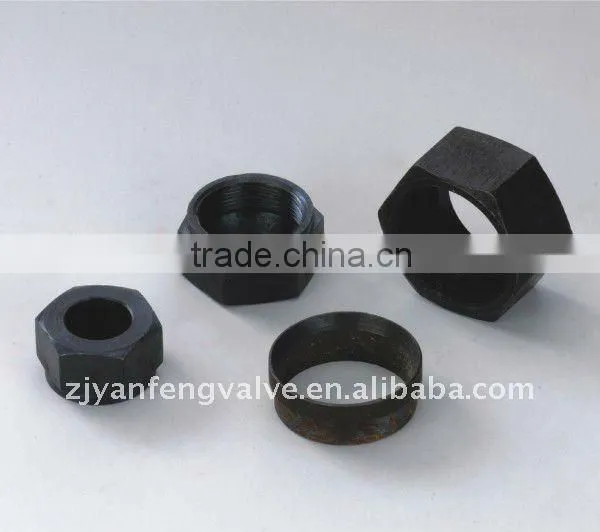

Female Check Nut

Name: Female Check Nut
Brand: OEM/YanFeng
SKU: 109394563
Availability: InStock

Negotiable MOQ: 3000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Iron

Technics:

Casting

Type:

Union

Zhuji City Yanfeng Valve Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo shanghai

Delivery Detail:

Delivery time depends on order quantity.

Material Iron

Technics Casting

Type Union

Place of Origin China

Model Number yf-008164

Brand Name OEM/YanFeng

Connection Female

Shape Equal

Head Code Hexagon

Specifications

Union Set Used on Pump Malleable Iron Pipe Fitting
1. Professional Manufacturer of Union
2. High quality with SGS, BSI, ISO

Union Set Used on Pump Malleable Iron Pipe Fitting

Size	1/8”-6”
Finishing	Galvanized, Electro Galvanized, Epoxy, Black
Threads	DIN, BS, NPT, G Thread, Metric etc
Shape	Banded, Beaded, Plain Malleable iron Pipe Fitting union
Ribs	with Rib or without Rib
Brand	OEM/Yanfeng
Material	Malleable iron of ISO 5922, ASTM A197
Dimension	EN 10242, ASME B16.3, ISO 49, BS 143, SI 255, ES 888
Pressure	Class 150, Class 300, PN10, PN16
Usage	Convey Water, Oil, Gas, Steam and so on
Malleable Iron Materials	KTH 350~10, KTH 300~06, KTH 330-08 Black Heart
Thread Standard	ISO 7/1, NPT ANSI B1.20.1, DIN2999
Mechanical Properties	Tensile Strength ≥ 330MPa Elongation ≥ 8% Hardness < 163
Hydraulic Test	Working Pressure: Max 1.5MPa Test Pressure: Max 2.5MPa
Temperature:	-20 ~ 120 °c
Production Capacity	60000 MT per Year
Lead Time	Within 30 Days if enquiry not more than 10x20' Container
Factory Certificate	ISO, SGS, ITS, BSI, Famous Brand Enterprise in Hebei, China
Successful case	Burj Dubai supplier
