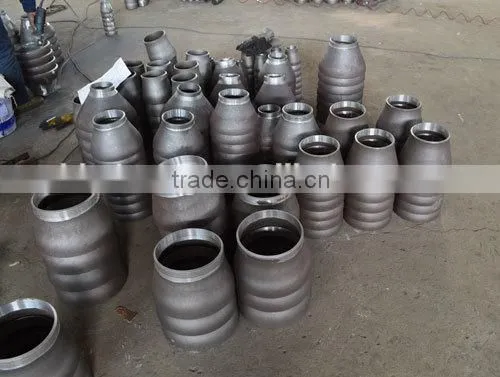

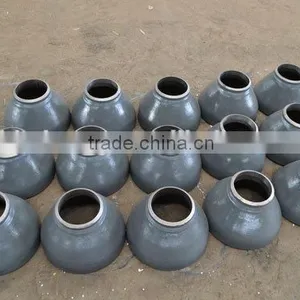

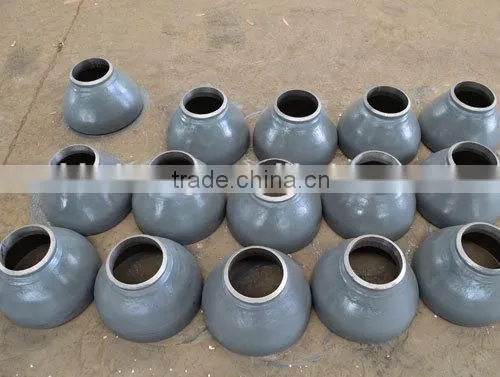

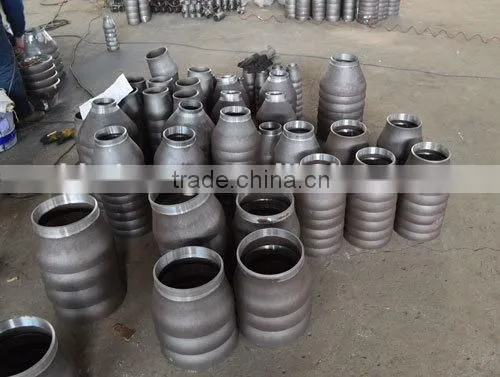

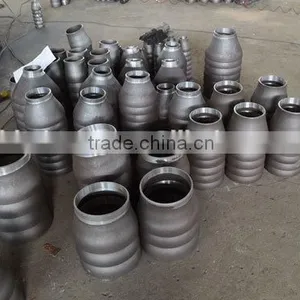

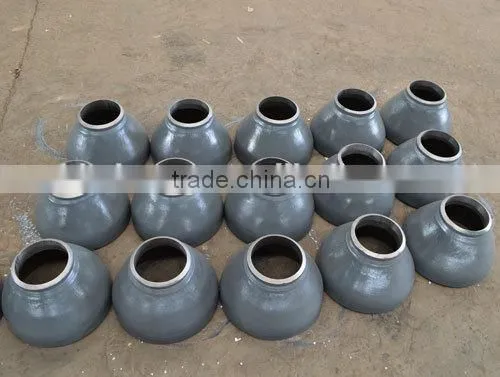

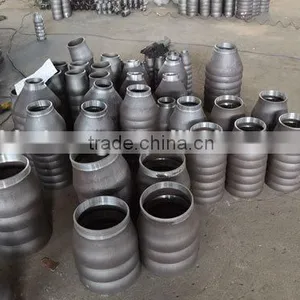

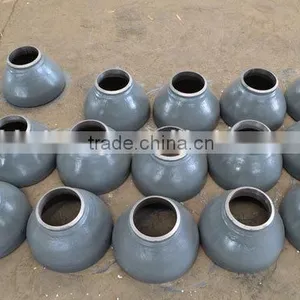

Stainless steel concentric pipe reducer

Pipe reducers are mainly used in the following areas:
 1. Pipe reducer is useful when there is a requirement on change of fluid flow rate.
 2. It is used for pump inlet to prevent cavitation.
 3. It is fit for the connectors of instruments, such as flowmeter and control valve

 Size

 Seamless Pipe Reducer: 1/2"~32" DN15~DN800
  Welding Pipe Reducer:6"~60" DN150~DN1500
 Wall Thickness
 sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
 sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s
 Max. thickness: 200mm

 Materials
 Carbon steel: ASTM/ASME A234 WPB-WPC
 Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
 Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
 ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
 ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
 Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
 High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70

 Standards
 GB/T12459-2005 GB/T13401-2005 GB/T10752-2005
 SH/T3408-1996 SH/T3409-1996
 SY/T0609-2006 SY/T0518-2002 SY/T0510-1998
 DL/T695-1999 GD2000 GD87-1101
 HG/T21635-1987 HG/T21631-1990
 ASME B16.9-2007 ASME B16.25-2007
 MSS SP 75-2008 MSS SP 43-2008
 CSA Z245.11-05-2005
 EN10253-1-1999 EN10253-2-2007 EN10253-3-2008 EN10253-4-2008
 DIN2616-1-1991 DIN2616-2-1991
 BS1640-1-1962 BS1640-2-1962 BS1640-3-1968 BS1640-4-1968 BS1965-1-1963
 GOST17378-2001
 AFNOR NF A 49-289-1990 AFNOR NF A 49-170-1-1999 AFNOR NF A 49-170-2-2009 AFNOR NF A 49-

 170-3-2009 AFNOR NF A 49-170-4-2009
 ISO3419-1981 ISO5251-1981
 JIS B2311-2009 JIS B2312-2009 JIS B2313-2009

 Industrial Processes
 Bending, squeezing, pressing, forging, machining and more

 Industries Served
 Our pipe reducers have found many applications in a wide range of industries, such as electricity, petroleum,  natural gas, chemical, shipbuilding, heating, papermaking, metallurgy and so on.


 Specifications for Pipe Reducer
