4wire RS232 Resistive Touch Panel Controller
US$ 10 - 15
MOQ: 1000 Sets
Key Specifications
Get Latest Price
Brand Name:
Suie, Suie
Model Number:
R4W-C
Use:
Computer
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4wire USB Resistive Touch Panel ControllerUS$ 10 - 15MOQ: 1000 Sets -
4wire USB Resistive Touch Panel ControllerUS$ 10 - 15MOQ: 1000 Sets
-
4wire USB Resistive Touch Panel ControllerUS$ 10 - 15MOQ: 1000 Sets
-
4wire USB Resistive Touch Screen Panel ControllerUS$ 10 - 15MOQ: 1000 Sets
-
4wire USB Resistive Touch Screen Panel ControllerUS$ 10 - 15MOQ: 1000 Sets
Brand Name
Suie, Suie
Model Number
R4W-C
Use
Computer
Place of Origin
Guangdong, China
Specifications
1.Superior touch response.2.E-GalaxGesture supported.
3.Most comprehensive driver support.
4.USB&RS232 dual interface

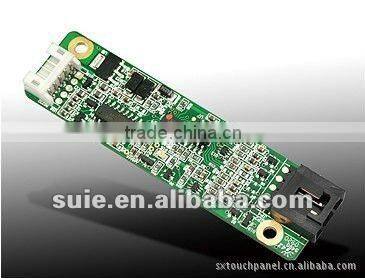

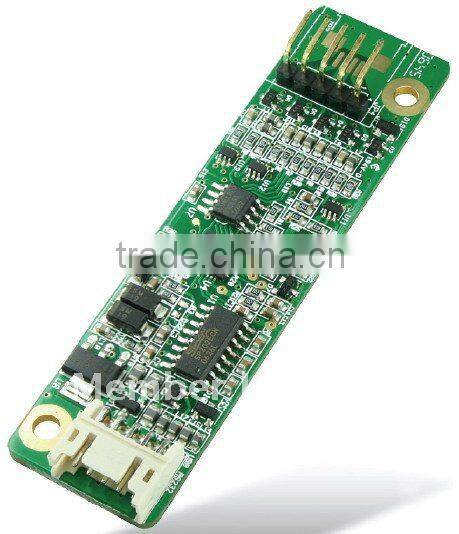

4wire RS232 resistive touch panel controller
EETI’S resistive controllers grants an excellent compatibillty with a wide variety of resistive sensors in the market.
Proven controller performance is trusted by over 40 of world’s major resistive sensor manufactures.
Identival pinhole location allows manufactures to easily switch between 4/5/8wire touch solutions.
| Power Requirements | DC+5V (max. 100mA, typical 70mA, 50mV peak to peak max ripple) | |||
| Operating Temperature | .-25 to +85 degrees Centigrade | |||
| Storage Temperature | .-55 to 150 degrees Centigrade | |||
| Relative Humidity | 95% at 60 degrees Centigrade | |||
| Interface | 1. RS232: 9600 bauds, None parity, 8 data bits, 1 stop bit(N81) | |||
| 2. USB: Full Speed(12Mbps) | ||||
| 3. PS2 : PS2 compatible mouse | ||||
| Accuracy Tolerance | Max. +/- 0.5% tolerance | |||
| Report Rate | 1. RS232: Max. 160 points/sec | |||
| 2. USB: Max. 160 points/sec | ||||
| Resolution | 2048*2048 | |||
| Peprot Rate | USB:200 points / sec. (Max) | |||
| RS232 160 points / sec.(Max) | ||||
| Accuracy Tolerance | Max. +/-0.5% tolerance | |||
| Response Time | Max. 20 ms | |||
| Regulatory Approvals | FCC-B, CE | |||
| Pin Out Definition | UL, UR, COM, LR, LL/UL. UR, COM, LL, LR | |||
| Panel Resistance | 50 ~ 200 ohm (pin to pin on the same layer, touch under 1.2k ohm) | |||
Successful projects:
Peking metro station touch screen service system
The subway extension touch screen service system from Guangzhou to Foshan
China Mobile halls touch screen service system in the whole Guangdong province.
Milk Tea chain-store from all over the world
