Appello 4p gps tracker power base charging for main device
Main device need to be purchased additionally
Total price is USD$48/unit ,MOQ:10 UNITS.
Sample price:USD$53
Parameter
Net Weight |
35g |
Small and light: Size |
47 * 35 * 22 mm |
WIFIGPSLBSAGPS |
4 kinds of positioning mode automatic switching |
GSM Module |
SIMCOM sim800L 4Band |
GPS Module |
U-Blox MAX-7C GPS/GLONASS Automatic Switch |
WIFI Module |
Followit 802.11b |
FM Module |
Followit 433Mhz |
CPU |
ARM Cortex |
Positioning accuracy |
GPS=2.5M WIFI=20M LBS=50-500M |
Battery |
380mAh+6000mAh |
Battery life |
380mAh=98hours 6380mAh=1800hours |
Waterproof |
IPX67 |

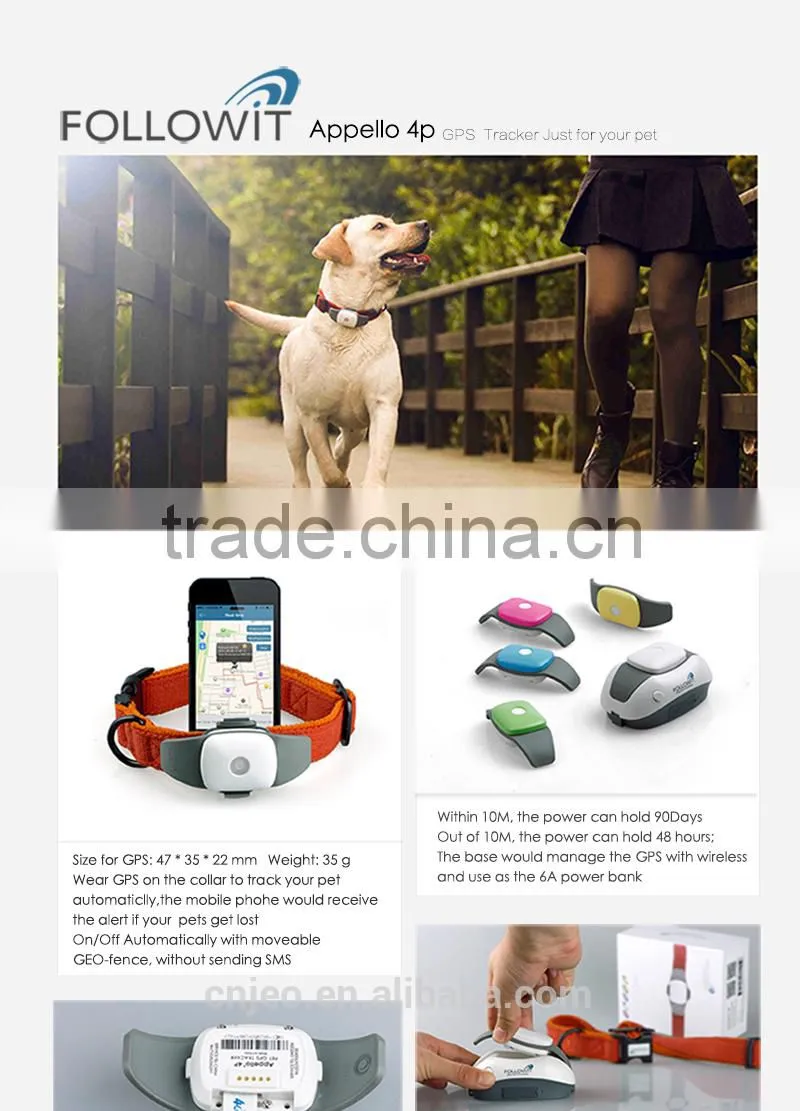

Illustration of the GPS Tracker Unit
- Ø The GPS tracker: NG: 35g; attach to the pet collar, it’s the most important part, it could used to separately to track pet, it much charge to put on the power base;
- Ø The grey wing of the gps tracker unit contain the GPS and GSM antenna inside, it could hide the clipper and banner perfectly;
- Ø The middle is the main part of the GPS tracker which include the PCBA and built-in 380mA lithium battery
- Ø The top button is the “SOS”button and working status LED light.
- Ø The 5 touch point on the bot tom use for charging and data transmission;
- Ø Without any physical switch, the machine power is determined by the distance between the GPS tracker and the power base,
- Ø Power switch on the base: control the gps tracker’s power wireless, within the scope of the D:20m, the gps tracker work start but would get start automatically after exceed of D:20m scope.

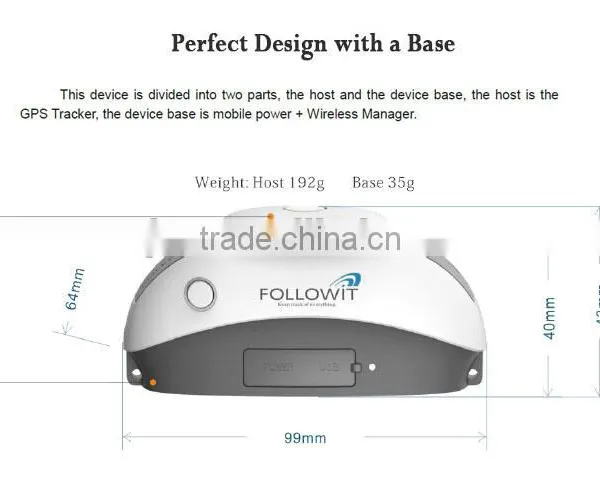

Illustration of the Power base
Design Philosophy: make the tracker smaller and suitable for the smaller pet, give the limited power used in the most needed.As the gps units would off if stay in the geo-offence of power base.
- Ø A power base could management all the gps tracker units in the scope of D:20.
Design Philosophy: If for more than one pet, the owner only need several GPS tracker units but one power base.
- Ø Moveable Geo-fence;
Design Philosophy: We take the safely into the consideration when out walking the dog. Carry a base, get lost dog will automatically send alarm (to the phone APP). Of course, if the dog stay at home, while the power base near the pet, the tracker will alert your phone APP when pet run out of (alarm notification without distance limitations, pet owners can receive alarm anywhere).
- Ø Build-in 6000mAh Battery;
Design Philosophy: Take with the power base when out walking the dog, you give charge the gps tracker freely and you could also charge with your mobile phone(like the power bank)
- Ø Strong magnets and waterproof design
Design Philosophy: It’s not only for pet, you could also use it as the whole to tracker your car, valuable things and act, The strong magnets could attached to the metal board(like the door of the car) and it’s water proof IP67 could resist the rain and dirty.
Functions of APP
- Ø The simplest way of operation
Design Philosophy: no need to send any sms command but just click the position on the app
- Ø With one year free tracking service
Please feel free to contact us if you want to know more details for our products.
Sales manager: Jennifer Yu
Office phone:0086 755 82542406
Phone: +86 13535339667
QQ: 2815413796
Company Web: /
Welcome to visit our company for cooperation.
Address: D1406 Mall city ,LongGang Street,LongGang District ,Shenzhen,China
