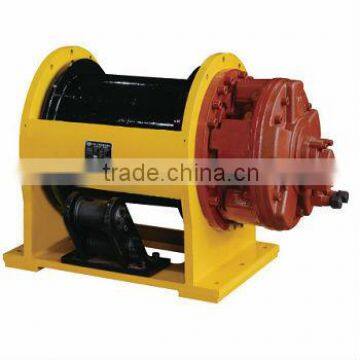

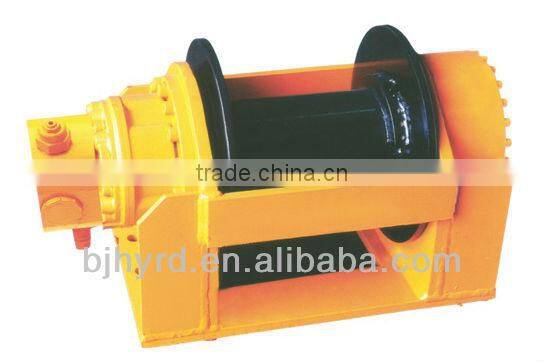

Top Quality Hydraulic 110V Electric Motor Winch
PRODUCT INTRODUCTION OF HYDRAULIC WINCH:
This marine Hydraulic mooring winch mostly Drive by motor, promote the efficient gearbox of transmission, pass to principal axis. Through electric control box to control motors positive and reverse rotation, speed-up and speed-down,accomplish the work of drop and weigh anchor. Its one side equipped with a windlass drum,which is used to roll mooringrope, when ship mooring, through a clutch to accomplish the combine with principal axis, promote the windlass drum running, accomplish the mooringropes veer and haul action. It either can drop and weigh anchor independently, or can veer and haul mooringrope independently. Its one side equipped with a warpingbarrel, increase greater convenience for ship to moor and dock. And it also equipped with a electrical control box,which to control itself.Its base is composed of high-strength steel plates welded together,turn parts bearing use the copper of high quality. The installmethod of shiphull is connect with bolt, installation convenience. Its has sound structure,high quality making,low price,simple operation,suitable for all kinds of small and medium-sized ship to moor and dock.
TECHNICAL DATAS:
| Line Pull (KN) | 550 |
| Nominal Speed 1st Layer (m/min) | 6.6 |
| Drum Displacement (ml/r) | 120344 |
| System Pressure (MPa) | 17.5 |
| Wire Dia. (mm) | 52 |
| Number of Layers | 4 |
| Wire Capacity (m) | 261 |
| Oil Flow (lts/min) | 320 |
Beijing Ocean Renda Petroleum Equipment Co.,Ltd engaged in Petroleum Equipment already 10 years. We provide the Petroleum Equipment ,qualifield parts and service about the Petroleum Equipment. Our products get the API certificates. At present, our main market is in South America. Our company have established four overseas company in United States, Colombia , Mexico and Dubai.
1. What does Ocean Renda do?
Beijing Ocean Renda Petroleum Equipment Co.,Ltd has been engaged in research, design, manufacturing and assembly of land oil drilling rig and equipments for oil exploration and development since 2006. Ocean Renda is a leading one in this field in China.
2. What does Ocean Renda offer?
Beijing Ocean Renda Petroleum Equipment Co.,Ltd offers kinds of equipments for oilfield. We are one professional company in oil industry and our business covers oil field service, drilling rig/workover and its spare parts supply, equipment maintenace, and chemicals supply.
3.Can I expect a quality products?
All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV and SGS.
