Product Details
Place of Origin: | Jiangsu, China | Brand Name: | OCEAN RENDA | Model Number: | QJ-3/200(A) |
Power Source: | Pneumatic | Application: | Other, oil field | Capacity: | 12000lbs |
Product Description

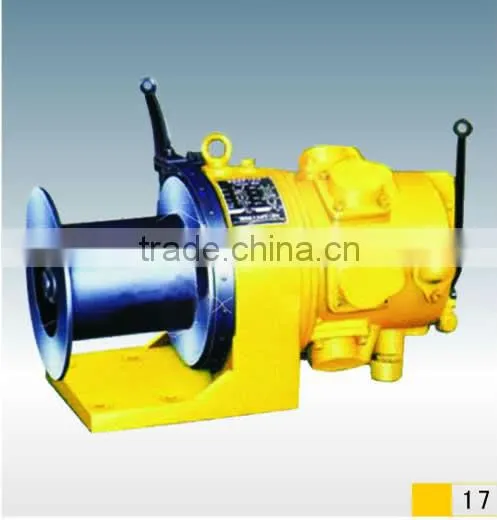

QJ Series of air winches
specification
1.QJ series of air winches are powered by piston-type air motor.
2.They have the advantages of compact structure, light weight , high efficiency easily operating and high security etc,
3.They are used for general lifting, hauling and other works in mines, oil fileds, on shipboards and etc. 4.Standard:API Spec 7K"Specification for Drilling Equipment"
Technical parameters:
Model | QJL-0.5/40(A) | QJ-0.5/120(A) | QJ-1/100(A) | QJ-3/200(A) | QJ-5/120(B)-* | |
Air pressure | MPa | 0.5-0.9 | 0.5-0.9 | 0.5-0.9 | 0.5-0.9 | 0.5-0.9 |
psi | 72-130 | 72-130 | 72-130 | 72-130 | 72-130 | |
Max. pull | kN | 5 | 5 | 10 | 30 | 50 |
US ton | 0.55 | 0.55 | 1.1 | 3.3 | 5.5 | |
Max. rope speed | m/min | 12 | 12 | 24 | 20 | 35 |
ft/min | 39.3 | 39.3 | 78.7 | 65.6 | 114.8 | |
Rope diameter | mm | 8 | 8 | 11 | 15.875 | 15.875 |
in | 5/16 | 5/16 | 7/16 | 5/8 | 5/8 | |
Rope capacity | m | 40 | 120 | 100 | 200 | 120 |
ft | 130 | 393 | 328 | 656 | 393 | |
Overall dimensions | mm | 495*365*380 | 675*343*460 | 825*343*450 | 1340*940*985 | 1300*940*985 |
in | 19*14.3*15 | 26.5*13.5*18 | 32.5*13.5*18 | 53*37*39 | 51*37*39 | |
Weight | kg | 45 | 117 | 162 | 600 | 580 |
lb | 100 | 258 | 357 | 1320 | 1280 | |
Note: 1.A menas the winch may be equipped with remote control device.B means the winch may be equipped with auto-brake device. 2.The above table shows the specifications for normal winches. 3.F means the flange connection,L means the screw connection, without L menas plate connection |
Beijing Ocean Renda Petroleum Equipment Co.,Ltd engaged in Petroleum Equipment already 10 years. We provide the Petroleum Equipment ,qualifield parts and service about the Petroleum Equipment. Our products get the API certificates. At present, our main market is in South America. Our company have established four overseas company in United States, Colombia , Mexico and Dubai.
1. What does Ocean Renda do?
Beijing Ocean Renda Petroleum Equipment Co.,Ltd has been engaged in research, design, manufacturing and assembly of land oil drilling rig and equipments for oil exploration and development since 2006. Ocean Renda is a leading one in this field in China.
2. What does Ocean Renda offer?
Beijing Ocean Renda Petroleum Equipment Co.,Ltd offers kinds of equipments for oilfield. We are one professional company in oil industry and our business covers oil field service, drilling rig/workover and its spare parts supply, equipment maintenace, and chemicals supply.
3.Can I expect a quality products?
All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV and SGS.
