Air Winch Boat Winch API Approved (10Ton)
Air Winch Boat Winch API approved (10Ton)
Remote Control 0.5ton/1ton/5ton air Winch Details | ||||
Item |
JQHSY-5*48 |
JQHSY-10*24 |
JQHSY-50*12-DS |
|
Rated Working Pressure |
0.6-0.7MPa |
0.6-0.7MPa |
0.8MPa |
|
Rated Full Force |
5KN(0.5ton) |
10KN(1ton) |
50KN(5ton) |
|
Rated Cable Speed |
48m/min |
24m/min |
12m/min |
|
Piston Air Motor |
Model |
TMH4A |
TMH4A |
TMH17 |
Rated Power |
4KW |
4KW |
17KW |
|
Air Consumption |
130L/s |
130L/s |
247L/s |
|
Drum |
Diameter |
175mm |
175mm |
222 |
Width |
198mm |
198mm |
335 |
|
Wheel Rim Diameter |
290mm |
290mm |
465 |
|
Cable Diameter |
8mm |
10mm |
15.875mm |
|
Cable Storage |
120m |
120m |
120m |
|
Air Inlet Diameter |
3/4inch |
1inch |
11/4inch |
|

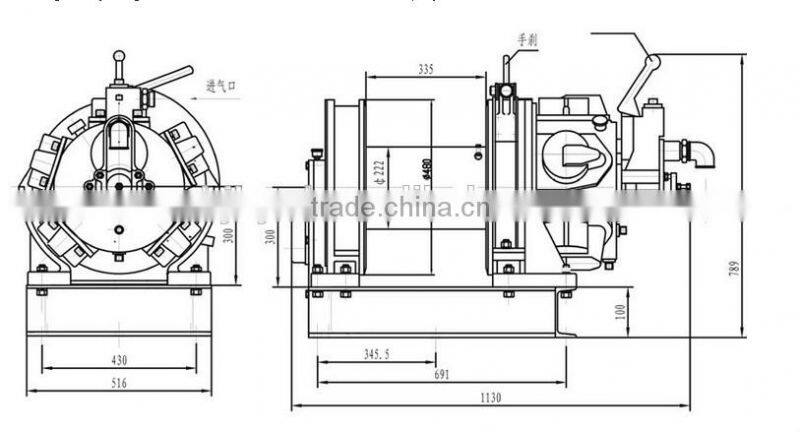

Configuration(Length*Width*Height) |
857*342*440mm |
722*342*530mm |
1250*770*1016mm |
|
Weight |
175kg |
175kg |
518kg |
|
Remote Control Distance |
remote control distance could reach 6-15m |
|||
Any questions ,needs and quotations are welcome.Expect to your inquiry.
x
1. What does Ocean Renda do?
Beijing Ocean Renda Petroleum Equipment Co.,Ltd has been engaged in research, design, manufacturing and assembly of land oil drilling rig and equipments for oil exploration and development since 2006. Ocean Renda is a leading one in this field in China.
2. What does Ocean Renda offer?
Beijing Ocean Renda Petroleum Equipment Co.,Ltd offers kinds of equipments for oilfield. We are one professional company in oil industry and our business covers oil field service, drilling rig/workover and its spare parts supply, equipment maintenace, and chemicals supply.
3.Can I expect a quality products?
All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV and SGS.
