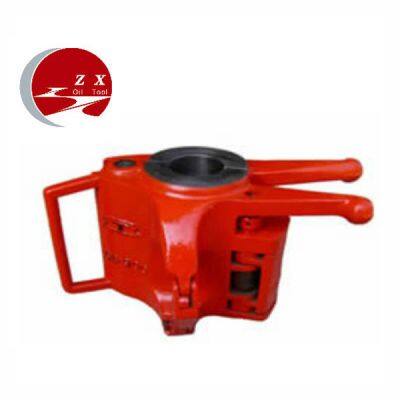

API 8C Oilfield Tubing /drill Pipe Elevator CD/CDZ/DD/DDZ 150t 250t 350t

Dongying Zhaoxin Industry And Trade Co.,Ltd
API 8C Oilfield Tubing /drill Pipe Elevator CD/CDZ/DD/DDZ 150t 250t 350t thumbnail-1
API 8C Oilfield Tubing /drill Pipe Elevator CD/CDZ/DD/DDZ 150t 250t 350t thumbnail-2
API 8C Oilfield Tubing /drill Pipe Elevator CD/CDZ/DD/DDZ 150t 250t 350t thumbnail-3
API 8C Oilfield Tubing /drill Pipe Elevator CD/CDZ/DD/DDZ 150t 250t 350t photo-1
API 8C Oilfield Tubing /drill Pipe Elevator CD/CDZ/DD/DDZ 150t 250t 350t photo-2
API 8C Oilfield Tubing /drill Pipe Elevator CD/CDZ/DD/DDZ 150t 250t 350t photo-3
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
1999
Annual Export Value:
US$1 Million - US$1.5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin or qingdao or shanghai or lianyungang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Description
1.high quality alloy steel processing, light weight, small size, big load, greatly reduce the work intensity. posed of main parts, hand door, lock pin assembly and hand shank etc. through technological transformation, the users can easily confirm the hand door open or not and greatly reduce the occurrence of safety accidence. 3.double proofed safety pin has been invented after many years reaserch and practical operation, which have obtained good reputation from the oilfield workers. 4.API Spe 8C
Specification
Technical parameters BD serices :

model
tubing outside diameter(mm)
load range
bore(mm)
weight(kg)
length*width*weight(mm)
BDY63
60
355-665
63
47
400*175*200
BDY76
70
355-665
76
40
440*168*200
BDY82
79
355-665
82
38
440*175*200
BDY92
89
355-665
92
48
480*196*200
BDY102
99
355-1335
102
46
480*196*200
BDY118
115
355-1335
118
106
490*218*205
Specification CD  series :

Model
Rated load Kn/US ton
Tubing specification
Diameters for elevators' holes
(up and down)(in)
Net weight (lbs)


in
mm


CD2 7/8-150


1335/150
2 7/8
73.0
3
161
CD2 7/8EU-150

2 7/8EU
73.0
3 1/4 / 3
161
CD3 1/2-150

3 1/2
88.9
3 1/4
168
CD3 1/2EU-150

3 1/2EU
88.9
3 7/8 / 3 1/4
168
CD4-150

4
101.6
4
187
CD4EU-150

4EU
101.6
4 3/8 / 4
187
CD4 1/2-150

4 1/2
114.3
4 5/8
209
CD4 1/2EU-150

4 1/2EU
114.3
4 7/8 / 4 5/8
209
 Secification DD serices :

Model
Rated load kN/US ton
OP(oil pipe) specification
Diameters for elevators' holes
(up and down)(in)
Net weight (lbs)


in
mm


DD2 3/8-150



1335/150
2 3/8
60.3
2 1/2 / 2 1/2
291
DD2 3/8EU-150

2 3/8EU
60.3
2 3/4 / 2 1/2
291
DD2 7/8-150

2 7/8
73.0
3/3
287
DD2 7/8EU-150

2 7/8EU
73.0
3 1/4 / 3
287
DD3 1/2-150

3 1/2
88.9
3 9/16 / 3 9/16
282
DD3 1/2EU-150

3 1/2EU
88.9
3 9/16
282
DD4 -150

4
101.6
4/4
276
DD4EU-150

4EU
101.6
4 3/8 / 4
269
DD4 1/2-150

4 1/2
114.3
4 5/8 / 4 5/8
267
DD4 1/2EU-150

4 1/2EU
114.3
4 7/8 / 4 5/8
265
