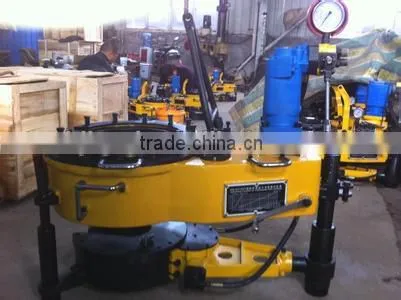

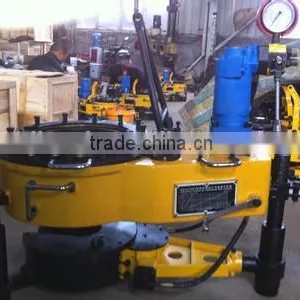

XQ Series Hydraulic Power Tong

XQ Series Hydraulic Power Tong photo-1
US$ 10,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
OCEAN RENDA
Model Number:
XQ140/20X,14X6X,3X
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name OCEAN RENDA
Model Number XQ140/20X,14X6X,3X
Type Other, casing power tong
Machine Type Other, drilling wellhead tools
Certification API
Material Carbon Steel
Processing Type Forging
Use Well Drilling
Main Parameters     hydraulic power tong

This series power tong is used for quick make-up/break-out sucker rod in well service operations

The tongs have the following features:

1,clamp the sucker rod use corresponding jaw set

2,dies may be equipped to master tong according to customer's request

3,torque control valve maybe equipped according to customer's request



XQ89/3X XQ114/6X XQ140/12X XQ140/20X
Φ60-89 Φ60-114 Φ73-140 Φ60-140
23/8”-31/2” 23/8”-41/2” 27/8”-51/2” 23/8”-51/2”
Φ60-114 Φ60-114.5 Φ73-156 Φ60-114
23/8”-41/2 2 7/8”-41/2” 2 7/8”-61/8” 23/8”-81/6
1270 N.m 1650 N.m 2600 N.m 2300 N.m
937ft-lbs 1217ft-lbs 1918ft-lbs 1696ft-lbs
3000 N.m 6070 N.m 12000 N.m 20000 N.m
2434ft-lbs 4477ft-lbs 8851 ft-lbs 14751ft-lbs
60 r/min 62 r/min 72 r/min 76 r/min
23 r/min 17 r/min 14 r/min 8.7r/min
10Mpa 11Mpa 12Mpa 13Mpa
1450psi 1595psi 1740psi 1885psi
80L/min 100L/min 120L/min 120 L/min
21gpm 26gpm 32gpm 32gpm
830×430×555 950×520×640 1050×620×900 1130×610×860
32.7” ×16.9” ×21.9” 37.4” ×20.5” ×25.2” 41.3” ×24.4” ×35.4” 44.5” ×24” ×33.9”
170kg 260kg 446kg 560kg
375 lbs 573 lbs 983 lbs 1235 lbs












XQ series Hydraulic power tong

XQ series Hydraulic power tong

XQ series Hydraulic power tong

 Certificate



XQ series Hydraulic power tong
