ZQ Series Drilling Pipe Hydraulic Power Tong

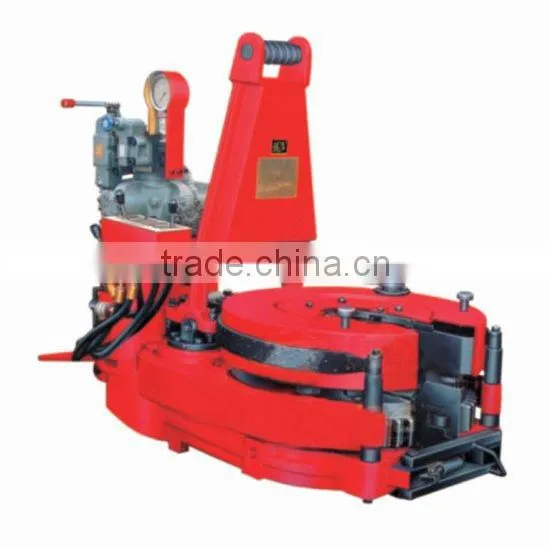

ZQ Series Drilling Pipe Hydraulic Power Tong photo-1
US$ 10,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
OCEAN RENDA
Model Number:
ZQ203-100,125,50,25
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name OCEAN RENDA
Model Number ZQ203-100,125,50,25
Type Other, casing power tong
Machine Type Other, drilling wellhead tools
Certification API
Material Carbon Steel
Processing Type Forging
Use Well Drilling



Main Parameters     hydraulic drilling pipe  power tong

1. ZQ drill pipe power tong is a ideal well head tool for oil drilling apparatus,

2. Widely applied in making-up and breading-out in drilling well and repairing well on offshore and land, open-throat design of the ZQ series allows the tongs to escaping from drilling pipe freely with high mobility.

3. The tong is a combination of spinning tong and torque tong. It substitutes cathead manual tong and spinning rope in making-up and breaking-out.

4. The tongs are designed and manufactured according to API Spec 7K Specification for Drilling Equipment.



Model
ZQ203-125I ZQ203-100 ZQ203-100II ZQ203-100III ZQ162-50 ZQ127-25
Size range mm 127-203 127-203 127-203 127-203 85-162 65-127
in 31/2coupling-8body 31/2coupling-8body 31/2coupling-8body 31/2coupling-8body 23/8coupling-5body 23/8coupling-31/2body
Max. torque kN.m 125 100 100 100 50 25
ft.lbf 92200 73750 73750 73750 36880 18440
The speed of tong head Hi. rpm 40 40 40 40 60 65
The speed of tong head Lo. rpm 2.7 2.7 2.7 2.7 4.1 10.5
Hydraulic system pressure rating MPa 20 16.6 16.6 16.6 16 12
psi 2900 2400 2400 2400 2320 1740
Hydraulic system flow rating L/min 114 114 114 114 120 180
gpm 30 30 30 30 32 48
Stroke of shifting sylinder mm 1500 1500 1500   1000 1000
in 59 59 59   39.4 39.4
Moving distance of tong mm       0-1500
in       0-59
Lifting distance of tong m     0-485 0-800
in     0-19 0-31.5
Overall dimensions mm 1720*1050*1750 1700*1000*1400 1700*1000*1400 1750*1650*2050 1570*800*1190 1110*790*820
in 68*41*69 67*39*55 67*39*55 69*65*81 62*31*47 44*31*32
Weight kg 2600 2400 2500 3250 1500 620
lb 5730 5290 5510 7165 3310 1360






 ZQ Series Drilling Pipe Hydraulic Power TongZQ Series Drilling Pipe Hydraulic Power Tong



ZQ Series Drilling Pipe Hydraulic Power Tong

ZQ Series Drilling Pipe Hydraulic Power Tong

ZQ Series Drilling Pipe Hydraulic Power Tong

ZQ Series Drilling Pipe Hydraulic Power Tong

ZQ Series Drilling Pipe Hydraulic Power Tong

 Certificate



ZQ Series Drilling Pipe Hydraulic Power Tong



FAQ



How can I buy from
Direct contact with our customers or sales on the site
________________________________________
Can goods deliver to my country?
Yes, we deliver to every country on the earth
________________________________________
Do I have to pay tax?
Maybe. It depends on what country you are receiving the goods in.
________________________________________

How much does shipping cost?

It depends on the quantity of goods, the shipping method, and the country. Use the website, Online inquiry to our sales.



________________________________________



How long does it take to deliver the goods?
If the stocks, Most normal sized orders are sent out within 1-2 working days.
Courier delivery (UPS, FedEx, DHL) takes 2-4 days depending on your destination.
Else, According to the actual number of orders, delivery of different.
________________________________________



Can I copy your website text and pictures for my re-selling business?



You are welcome to copy the Renda product pictures and product descriptions, for use re-selling these products.



________________________________________
Can I visit Renda?
Yes, you are welcome to come and meet us here China.
________________________________________
How can I speak to Renda about product questions or other queries?
We will offer you full pre-sales and after-sales support via phone, email, live chat, mail, or face-to-face meetings.



Company Information



Beijing OCEAN RENDA Petroleum Equipment Co., Ltd(hereinafter referred to as “HYRD”) is an wholly-owned subsidiary of “Sina-America Renda Group Company” in China. Established in 2006, HYRD has the registered capital 12.5 million RMB and average annual operating income 50 million RMB,majors in exporting and importing oil and gas drilling machinery and equipments, with the logistics and technical services as the carrier. And it is a highly competitive professional company with the rapid development in the energy industry.



HYRD adheres to excellent Chinese nation cultural tradition and deep integrity background, depends on the location (Beijing ) advantage in information, technology, talents and many other aspects, aims at the international oil development tendency by the strong technical force, high quality service ability and strict quality warranty system, insists on the enterprise tenet of “Quality first, service paramountcy”, and wins the customers and market with the excellent product quality and superior service concept.



HYRD has a professional team acquainted with international project operation, with consummate technology and rich management experience, which makes HYRD wholeheartedly supply high quality and professional service for the customers. At present, HYRD consists of International Business Department, Domestic Business Department, Administrative Personnel Department, Financial Department, Technical Department and Material Support Department. HYRD has a wholly-owned subsidiary in oil field in north China Renqiu city in Hebei province, and at the same time, has representative offices in Dubai, Iran, Columbia, America and Russia all around the world.



From the beginning until now, HYRD has been in line with the enterprise spirit of “pioneering and innovative, keep improving ”, and passes the ISO 9001-2008 Quality Management System Certification with rigorous attitude and perfect system. HYRD has been entitled Chine Internet “Chinese Credit Enterprise Certification System Sample Enterprise” and Alibaba “Honest Supplier”; and at the same time, we are the eligible supplier for CNPC and SINOPEC. Through the long cooperation, HYRD has established steady partnership with BOMCO, SJ Petroleum Machinery Co., SINOPEC, CNPC Bohai Petroleum Machinery Co., Ltd, CPTDC, and “Nabors”,“Weatherford”,“Baker Hughes”and some other international famous enterprises, and has already gained good economic and social benefits.



In the face of opportunities and challenges which the oil machinery equipment market development at home and abroad brings, HYRD stands at the same field stage with broad vision and open attitude, seeks cooperation and development with most sincere character, and strives for reputation and excellence with aesthetic standards. We are looking forward to develop step by step with your participation and support in the bright future.
