2 Sim Card Tracking System for Vehicle With Sos Button and Free Tracking Sever

2 Sim Card Tracking System for Vehicle With Sos Button and Free Tracking Sever thumbnail-1
2 Sim Card Tracking System for Vehicle With Sos Button and Free Tracking Sever thumbnail-2
2 Sim Card Tracking System for Vehicle With Sos Button and Free Tracking Sever thumbnail-3
2 Sim Card Tracking System for Vehicle With Sos Button and Free Tracking Sever thumbnail-4
2 Sim Card Tracking System for Vehicle With Sos Button and Free Tracking Sever thumbnail-5
2 Sim Card Tracking System for Vehicle With Sos Button and Free Tracking Sever thumbnail-6
2 Sim Card Tracking System for Vehicle With Sos Button and Free Tracking Sever photo-1
2 Sim Card Tracking System for Vehicle With Sos Button and Free Tracking Sever photo-2
2 Sim Card Tracking System for Vehicle With Sos Button and Free Tracking Sever photo-3
2 Sim Card Tracking System for Vehicle With Sos Button and Free Tracking Sever photo-4
2 Sim Card Tracking System for Vehicle With Sos Button and Free Tracking Sever photo-5
2 Sim Card Tracking System for Vehicle With Sos Button and Free Tracking Sever photo-6
US$ 41 - 45 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Gps Tracker
Use:
Automotive
Screen Size:
Other, NO screen
Contact Supplier Request Quote Chat Now
Shenzhen Jeo Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Gps Tracker
Use Automotive
Screen Size Other, NO screen
Function Other, GPS tracking / positioning
Place of Origin Guangdong, China
Brand Name Anywhere
Model Number TK103-2

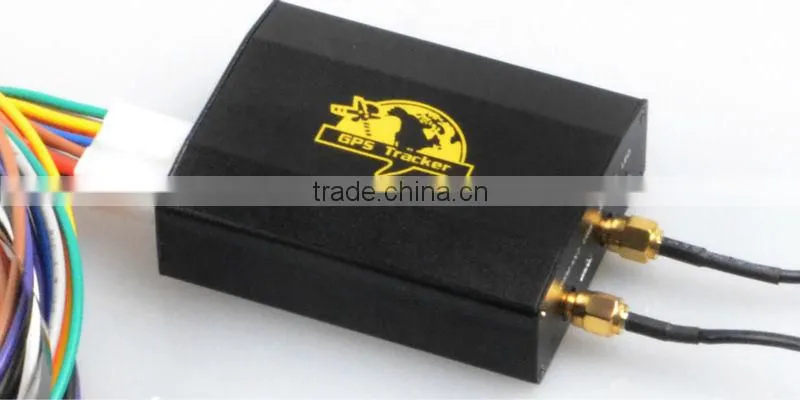

2 sim card tracking system for Vehicle
-Send SMS to the unit to cut off the vehicle engine
-Support GPRS data transmission.


Model TK103-2





Description:

  • Location Based Service

Location Based service also named A-GPS, when tracker in underground or tunnel ,can get location by ACPS.

  • Real time tracking

Real time tracking it by cell phone and platform . Also can support get location every 5 seconds, and the GPS accuracy is 5m .

  • Check the history of route

Can check and replay within one year history of route of device ,by web monitor center.

  • Monitoring

Can hear the voice around the tracker by cell phone.

  • SOS button

SOS button ,when user have emergency , press the SOS button ,the tracker will send “help me “ SMS to all authorized phone number and monitoring web platform

  • Mileage calculate

Check the mileage data by mobile and platform anytime and anywhere.

  • Google map on mobile

Check the location with google map on mobile.

  • Geofence and movement alert

Set up a geo-fence for the unit to restrict its movements within a district ,unit will send a message to the authorized numberwhen it breaches the district..

  • Shake and overspeed alert

Set shake and overspeed alert,unit will send message when shaked and overspeed.

  • Traffic model

When in traffic model the device will save power and GPRS. When car don’t mover,the device will got to sleeping automatically. When sleep the consumption is only 1-3mAh can save power 80%. When t car move, the device will be wake up to tracking the car, and send the data to cell phone or monitor center.

  • SD card and over the air update

Importand with SD card:1:when no gsm and gps signal all the data will be saved at SD card and will be send again after get gsm gps signal.2: Many function and updating will be add in the future like over the air update: user can send a update message to the unit, updating will be finished within 3-5 minuts and SD card is the necessary in this.

  • Cut off power and oil online

Cut off the power and oil online and control the car doors with platform.

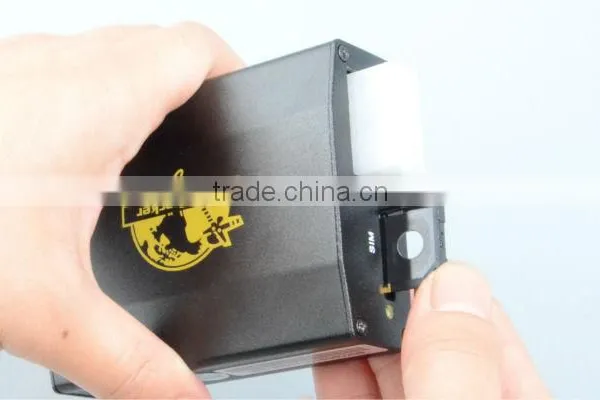

unit support 2 sim card, when one sim card no fee, it will change to another sim card automatically

  • Synchronization client Tracker PC

User can setting /updating the tracker through PC (connect the computer with the USB cable).This function avoid the SMS fee and make it more easy operate than send SMS.

Scan or copy data of SD card in Tracker Pc (OEM)



Feature:


Items Specification
Power Supply  12-24V/3A
Backup Battery Rechargeable   860 mAh battery (3.7V),
Normal Power Consumption 150mA/h
Dimension 80 x 60 x 25mm
Weight  150g
Operating   Temperature -20°C to 55°C
Humidity 5% to 95%   Non-condensing
GSM Module Quad Band GSM   850/900/1800/1900Mhz
GPS+Glonass   Chipset
Modes GLONASS, GPS,   GLONASS + GPS
CPU ARM7
Accuracy

Position 5m

Velocity 0.1m/sec

Time 60ns
Startup Time

1 second hot start under open sky

< 29 second warm start under open sky (average)

29 second cold   start under open sky (average)
Reacquisition 1s
Memory Micro 2GB SD card
Operational   Limits Altitude <   18,000m or velocity < 515m/s

 Details:

  2 sim card tracking system for Vehicle with sos button and free tracking sever2 sim card tracking system for Vehicle with sos button and free tracking sever2 sim card tracking system for Vehicle with sos button and free tracking sever



2 sim card tracking system for Vehicle with sos button and free tracking sever

2 sim card tracking system for Vehicle with sos button and free tracking sever

2 sim card tracking system for Vehicle with sos button and free tracking sever

2 sim card tracking system for Vehicle with sos button and free tracking sever

How to working ? Tracking via Google Map

2 sim card tracking system for Vehicle with sos button and free tracking sever

online system login accout (demo account:348848/123456-----Platform web:  )



See the SMS, you can see the IMEI number.
So the user name is the behind 6 digits of the IMEI number.



2 sim card tracking system for Vehicle with sos button and free tracking sever



what should do before tracking on line
Must set APN:
APN stands for Access Point Name. For example , China mobile APN:“CMNET”, user name:fido , password:fido.
send SMS“123456apn cmnet fido fido”to the unit

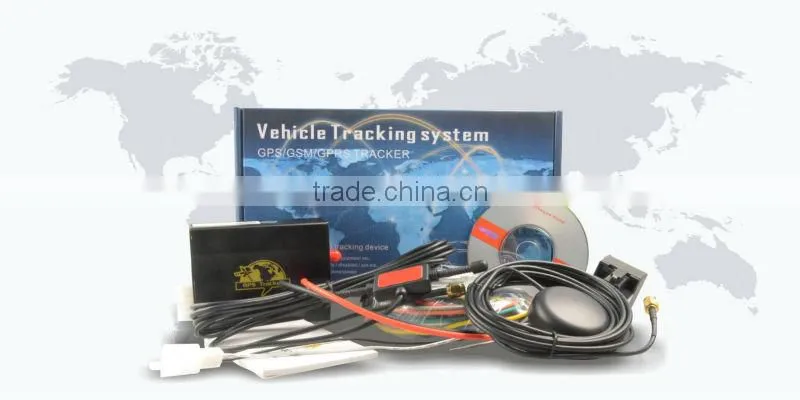

Accessories:

2 sim card tracking system for Vehicle with sos button and free tracking sever

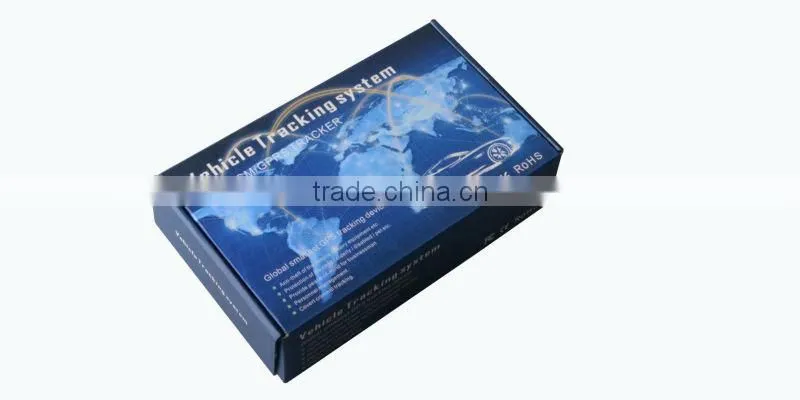

Outer BOX:



2 sim card tracking system for Vehicle with sos button and free tracking sever





For more details,welcome to send me inquiry. Thanks!!!!    contact person:  Serina Hou
