Specifications
Shrink Packing MachineAdvanced Technology
Human-Machine Inter-Exchange Touch Screen
Imported PLC, Pneumatic, Electrical Part
Shrink Packing Machine
CHARACTERISTICS
1.Specially desinged and manufactured for the high-speed packing requirements of drinks(pure water,beverage,fruit juice and milk product).
2.During the product forward conveying process,it can automatically group into package, so as to save time and enhance packing efficiency.
3.Adopt the Programmable Logic Controller(PLC),which can carry out the automatically work flow.
4.Use the isothermal sealing cutter,its surface spray TEFLON COAT, the seal is even and secure.
5.Touch-screen operating panel with user-friendly interface and absolutely an easy-to-operate machine.
6.Without bottom support,it can suit for different bottle neck and botttle combination.
7.The ideal model of middle-speed heat-shrinking packager in the domestic market.Easy-operate and easy-repair.
SPECIFICATIONS
| Dimension For The Whole Unit | L13840mm×W1100mm×H2100mm |
| Thermal Shrinkage Passage Dimension | L2400mm×W650mm×H450mm |
| Max.Package Dimension | L600mm×W400mm×H350mm |
| Packaging Speed | 15-20Pcs/minute |
| Transfer Belt Dimension | 550mm |
| Sealing And Cutting Time/Temperature | 0.5-1s 180oC-260oC |
| Operating Power Supply/Power | three-phase-five-line 380V 30KW |
| Operating Air Pressure | 0.6-0.8Mpa |
| Air Consumption | 0.6m3/minute |
Product Pictures
Other Optional Products

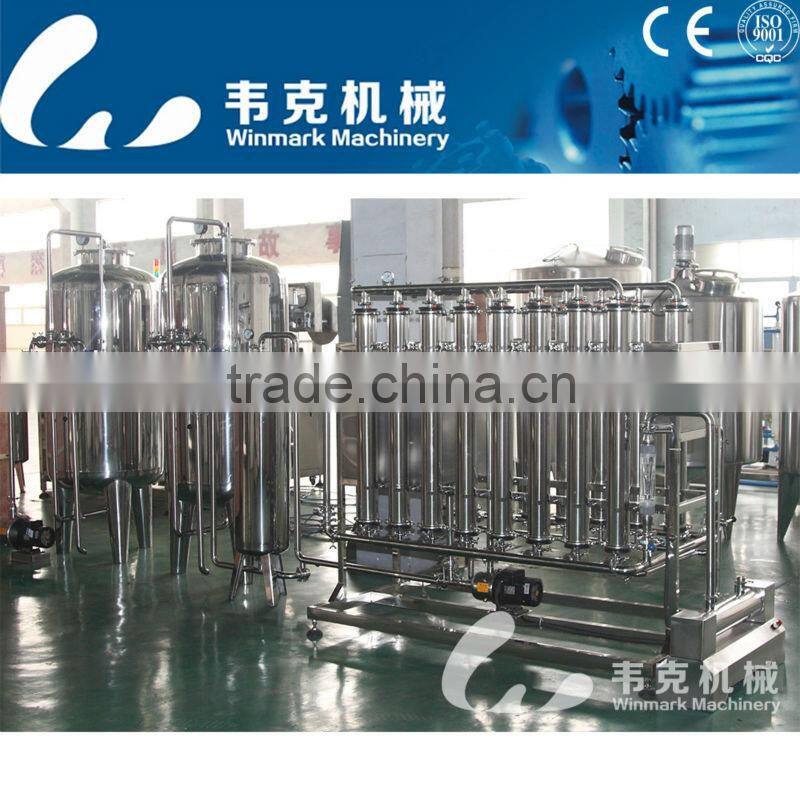

Water Treatment System

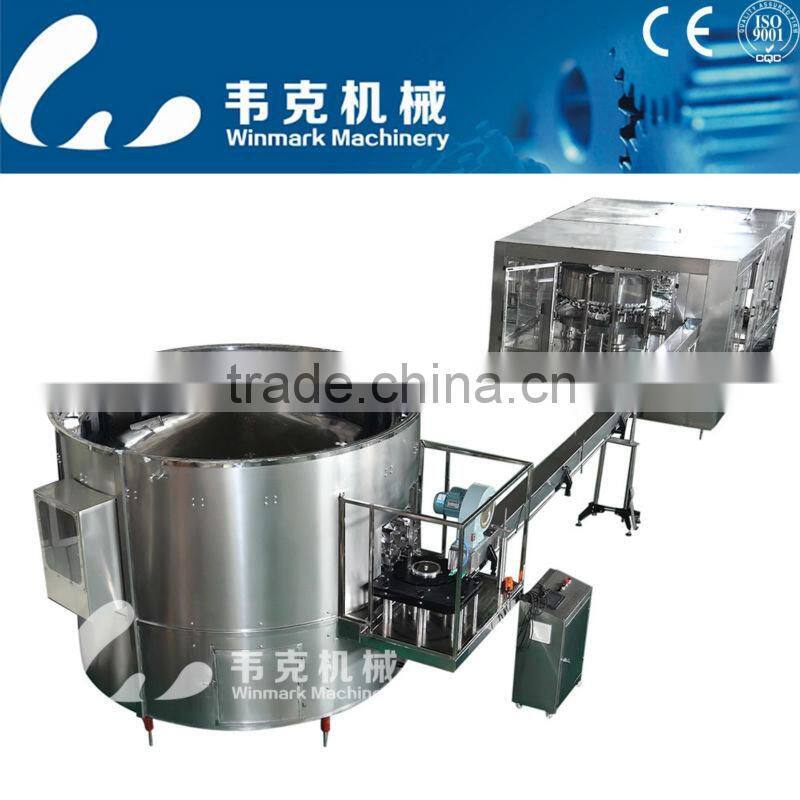

Bottle Unscrambler
Factory Shows
Packing Details
