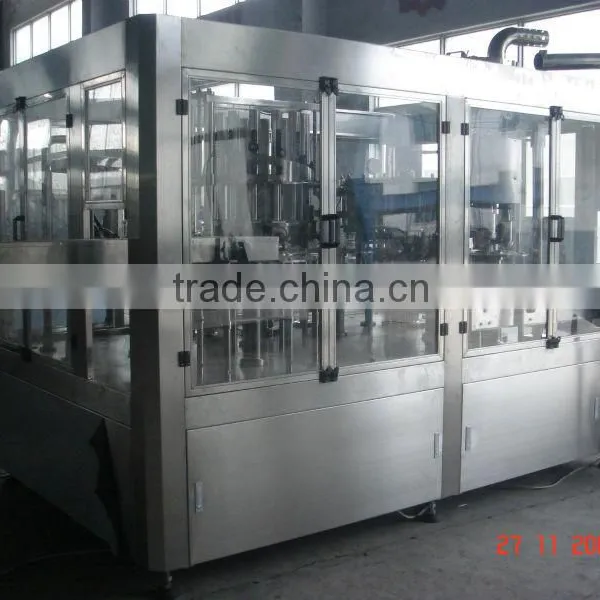

Automatic Pure Water Packing/Filing/Capping Machine

Specifications

Automatic Pure Water Packing/Filing/Capping Machine
1.Pack Water: 1000-20000L/H
2.Fully Automatic
3.Stainless Steel

Automatic Pure Water Packing/Filing/Capping Machine



it is used for packing pure water, mineral water in PET bottles. we can supply the whole line. we also can supply the filling machine for cola or juice.



Usage
The series equipment is used in filling pure water, mineral water and other drink which does not contain any gas in PET bottles. On one machine, it can carry out washing, filling, capping. The machine adopts filling in normal temperature and normal pressure. The special filling valve makes the filling speed fast and the filling liquid level control correct. The machine adopts frequency control and PLC control. The operation and maintenance are convenient. It is suitable for thinner PET bottles.



Main Technical Parameters

Mode	CGF16/12/6	CGF18/18/6	CGF24/24/8	CGF32/32/10	CGF40/40/12	CGF50/50/15
Production Capacity:500ml(B/h)	4000	6000	10000	12000	16000	24000
Suitable Bottle Standard(mm)	150-300	150-340	150-340	150-340	150-340	150-340
Suitable Cap Standard(mm)	φ50-φ110
Filling Pressure(Mpa)	0.2-0.3
Filling Model:	Gravity type
Installed Capacity:(kw)	3.5	4	4.8	7.6	8.3	9.6
Filling Temperature:	Room Temperature	Room Temperature	Room Temperature	Room Temperature	Room Temperature	Room Temperature
Overall SizeL×W×H(mm)	2450×1800 ×2400	2950×1900 ×2400	2900×2100 ×2400	4100×2400 ×2400	4550×2650 ×2400	5450×3210 ×2400



Characteristics

1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.

2. It is very convenient to change diverse sizes of bottles by means of advanced bottle conveying technology--bottleneck clamping and bottle suspending technology.

3. Advanced programmable PLC is equipped to control the main machine.

4. Main electronic components are all from famous international enterprises.

5. All spare parts that may touch with water are made from high-quality stainless steel.



main machines



About Factory

 15years’experience in filling line machinery; 8 years gold supplier on .

About Quality

brand-new equipments with latest design and suitable material made.

About After Sale Service

1 year warranty period and life time technical support.

Product Pictures



Factory Pictures



Packing Pictures
