Specifications
1. shrink wraping machine2. for PET bottle or glass bottle
3. with paper support or without
4. PE film packing machine

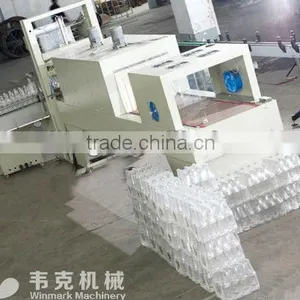

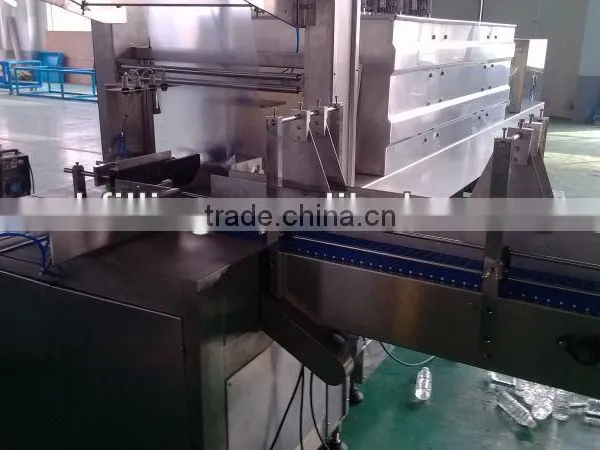

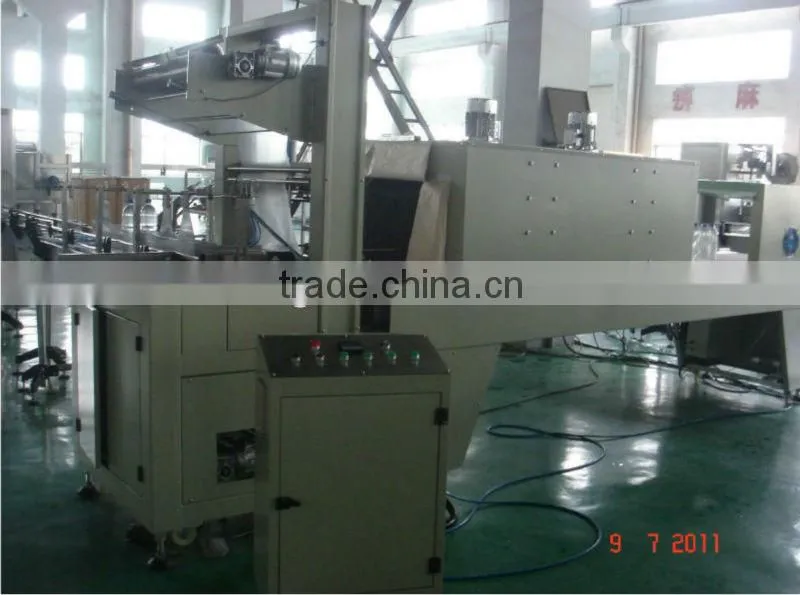

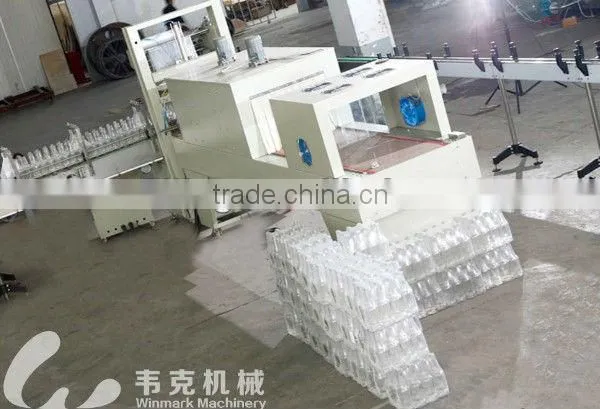

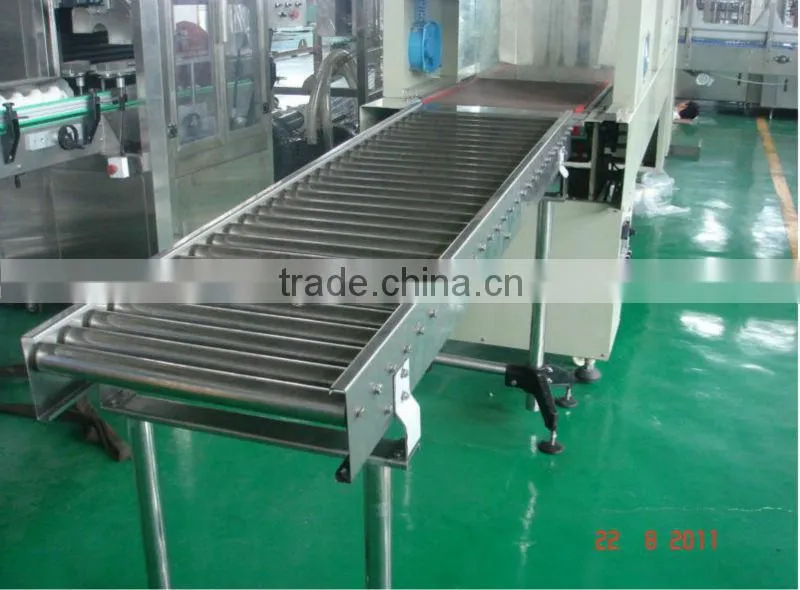

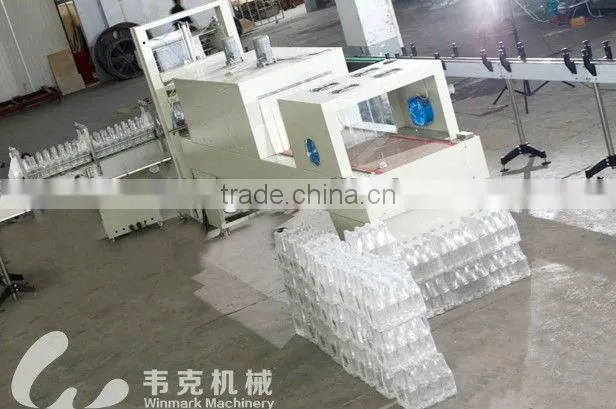

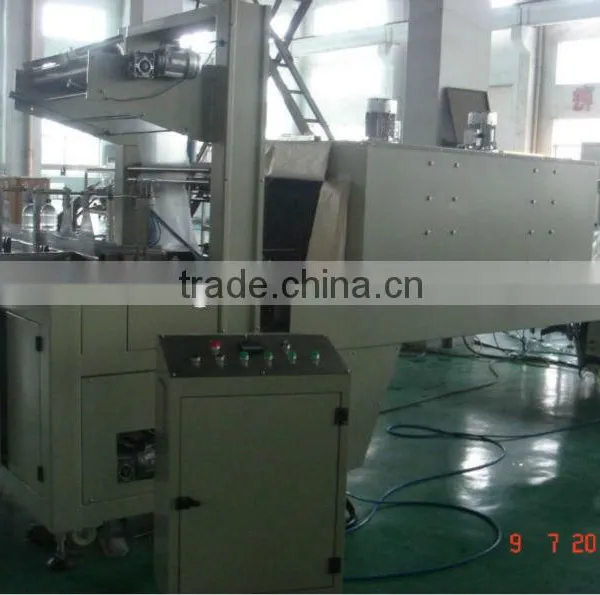

YCD series Shrink Wrapping Machine shrinking packing machine
Usage: the machine is used for packing bottled water, drink, or canned drink into a pack with PE film. Don’t need backing board or paper plate when packing; it will save the cost of packing. It is widely used in production of mineral water, pure water, soft drink, beer, juice and so on.
Features:
1. Special designed for the full automatic packaging production line of beer, beverage, pure water, fruit juice, dairy products etc.
2. With full automatic functions of bottle transfer and arrange, membrane packing, sealing and cut, shrinking, cooling and shaping etc.
3. Using advanced constant temperature membrane heat binding technology in the world with clear and secure seal.
4. The quick seal cooling structure guarantee that the seal has a higher strength even if under high speed production condition.
5. Adopt with PLC automatic program circulation control with stable and reliable performance.
6. The original imported guide bar cylinder guarantee correct operation and durable.
7. The inductive switch controls the membrane transfer system to reliably adjust and control the membrane transfer length with less loss.
8. All the transfer system is controlled by frequency changing devices with stable and smooth transfer speed.
Technical parameters
Dimension for the whole unit | L12000mm×W1100mm×H2100mm |
Thermal shrinkage passage diemnsion | L2400mm×W650×H450mm |
Max.Package Dimension | L600mm×W400mm×H350mm |
Packaging Speed | 15-21Pcs/min |
Transfer Belt Dimension | 550mm |
Sealing and cut Time/Temperature | 0.5-1s 180-260degree centigrade |
Operating Power Supply/Power | (TN-S)380V 17KW |
Operating Air Pressure | 0.6-0.8Mpa |
Air Consumption | 0.6m3/min |
Our technology from Taiwan and Germany,Our machine have good quality and competitive price,Hope cooperate with you!
