Specifications
Automatic PET bottle capper sealing machine-adopt imported parts Mittisubishi Schneider Air-Tac
-max.2000~20000bph

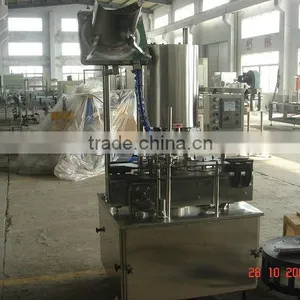

Automatic PET bottle capper sealing machine
- Model: XG
- Trademark: winmark
- Standard: according capacity
- Unit: pc
- Origin: China Zhangjiagang
- Max order: 50pcs
- Min order: 1pc
- Packing: wooden box
- TransTime: 1week
- Transportation: Ocean Transport
- Payment: L/C TT
This machine equips bottle entry pulling wheel, protruding wheel and spring cylinder device to returned driving. Bottle caps automatically goes into bottle caps' slot by adopting cap-pulling device. It goes to press and seal the caps on the bottle under helping of air compression. In order to the machine can fit on capping on various bottle volumes, and considering multi-usages in this machine, so it is adjustable on machine design. It has more advantages on well-structure, good outlook, small volume, low weight, wide using range, easy dismissible and maintenance, and low quotiety of bottle broken.
This machine is suitable for bottle volume of 250ml, 375ml, 500ml, and 625ml at height of bottle from 203-287ml in normal standard to press and cap the bottle through changing bottle-entry pulling wheel and central pulling wheel and baffle.
(1). Production capacity 6000-8000b/h
(2). Cap pressing heads 6
(3). Distance in cap pressing 58 mm
(4). Volume of bottle 250,375,500,625ml
(5). Bottle specification and allowed warps
a. Outer diameter of bottle (mm) 58-76 ± 1
b. Round of bottle body (mm) 58-76 ± 0.5
c. Height of bottle (mm) 203-287 ± 1.5
d. Outer diameter of bottle mouth (mm) 26.3 ± 0.2
e. Inner diameter of bottle mouth (mm) 16 ± 0.5
f. Undertaking pressure inside bottle (Pa) 5-8
(6). Type of bottle cap royal style
(7). Bottle cap specification and allowed warps
a. Inner diameter of bottle cap 26.3 ± 0.1
b. Total height of bottle cap 6.6 ± 0.05
c. Thin of bottle cap 0.28 ± 0.02
d. Outer diameter of bottle cap 32 ± 0.25
(8). Motor power 1.1 KW
(9). Net weight of machine 600 kg
(10). Overall dimension (long * wide * height) 1000*730*2250mm
About Factory
15years’ experience in filling line machinery; 6 years gold supplier on .
About Quality
brand-new equipments with latest design and suitable material made,
About After Sale Service
one year warranty period and life time technical support.
Note: Please tell us your production capacity.
