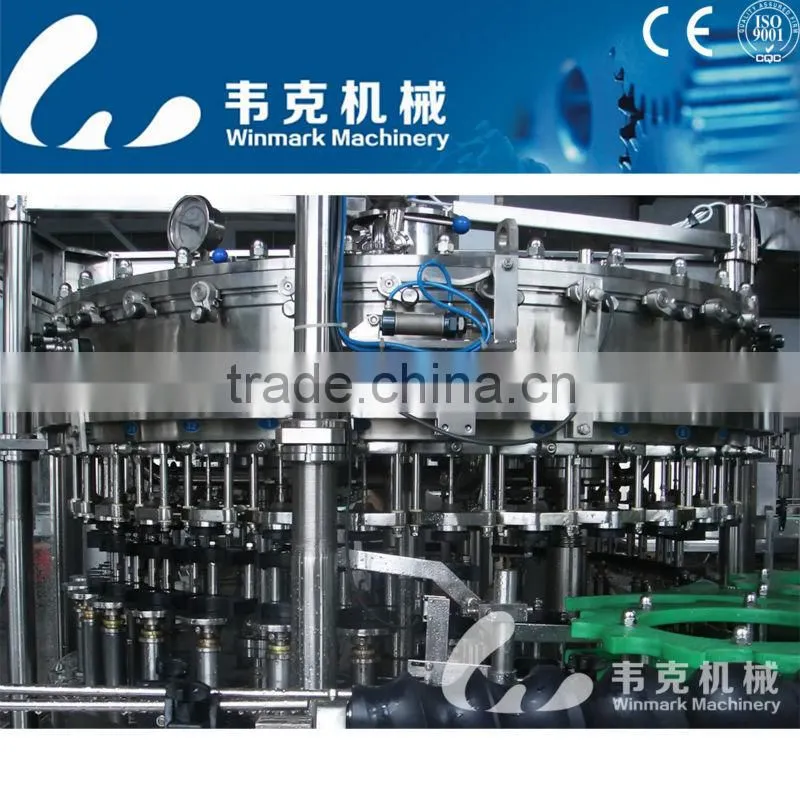

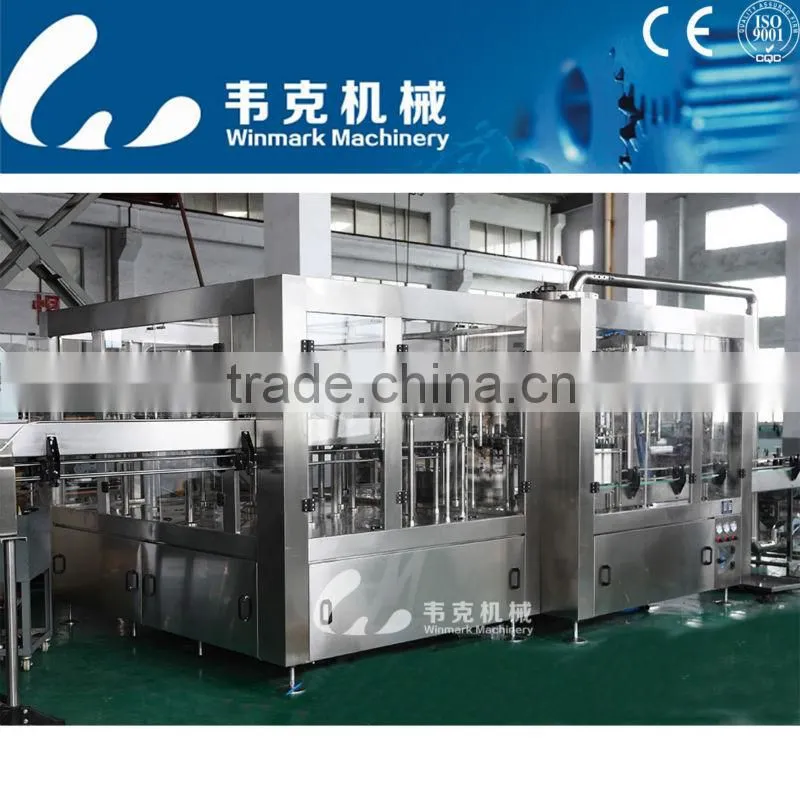

Soda Filling Machine

Name: Soda Filling Machine
Brand: Winmark
SKU: 109367085
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Voltage:

380V

Place of Origin:

Jiangsu, China

Brand Name:

Winmark

Zhangjiagang Winmark Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Voltage 380V

Place of Origin Jiangsu, China

Brand Name Winmark

Model Number DCGF

Dimension(L*W*H) 2950*2150*2400

Weight 4500KG

Certification CE ISO

Condition New

Specifications

1. soda machines
2. carbonated drink machine
3. PET bottle
4. full-auto 3 in 1 monoblock

soda machine

Characteristics:

1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.

2. It is very convenient to change sizes of bottles by means of advanced bottleneck clamping & bottle suspending technology

3. Advanced programmable PLC is equipped to control the main machine.

4. Working speed can be adjusted by frequency conversion device.

5. Main electronic components are all from famous international enterprises

Main Technical Specifications:

Model:	DCGF18-18-6	DCGF24-24-8	DCGF32-32-12	DCGF40-40-12
Production Capacity:500ml	5000	8000	12000	16000
Suitable Bottle Standard:	round or square shaped bottle.
Polyester Bottle Standard: (mm)	Bottle Diameter:50-110 (Height):150-340mm
Suitable Cap Standard:	Plastic Screw Cap
Filling Precision:	≤±5mm
Filling Pressure:(Mpa)	0.15-0.35	0.15-0.35	0.15-0.35	0.15-0.35
Filling Pressure:(Mpa)	0.2-0.25	0.2-0.25	0.2-0.25	0.2-0.25
Power:(KW)	3.5	4	6	8
Overall Size:(mm)	2450×1800 ×2350	2780×2200 ×2350	3600×2650 ×2350	3800×2950 ×2400
Total Weight: (kg)	3500	4500	5500	6500
