Home > Products > Carbonated drink filling line > DCGF Series Soft Drink Filling Machine

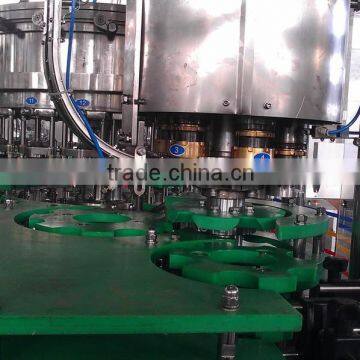

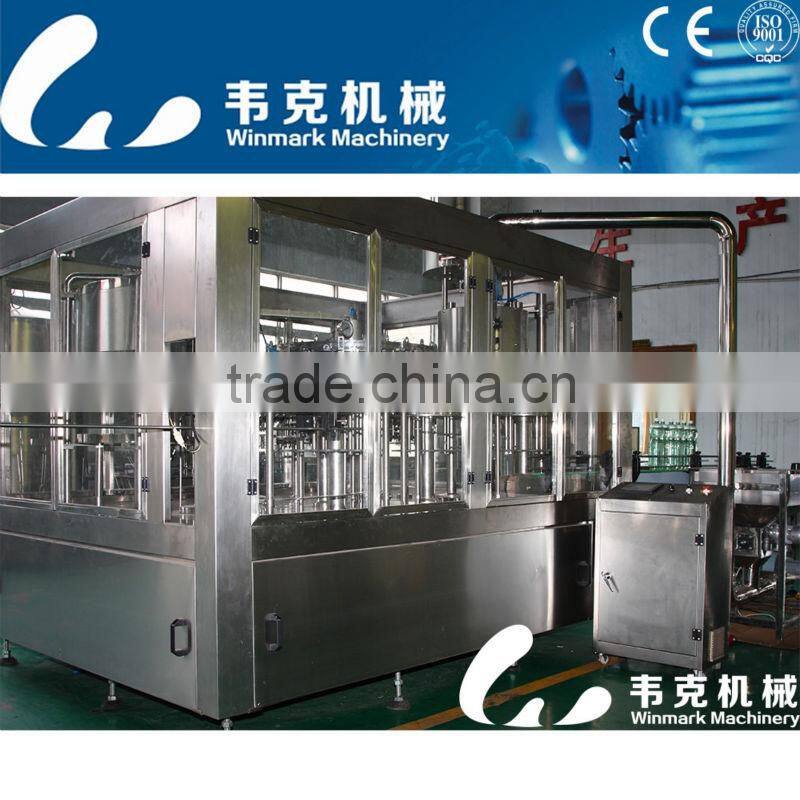

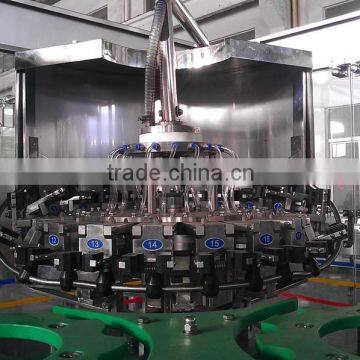

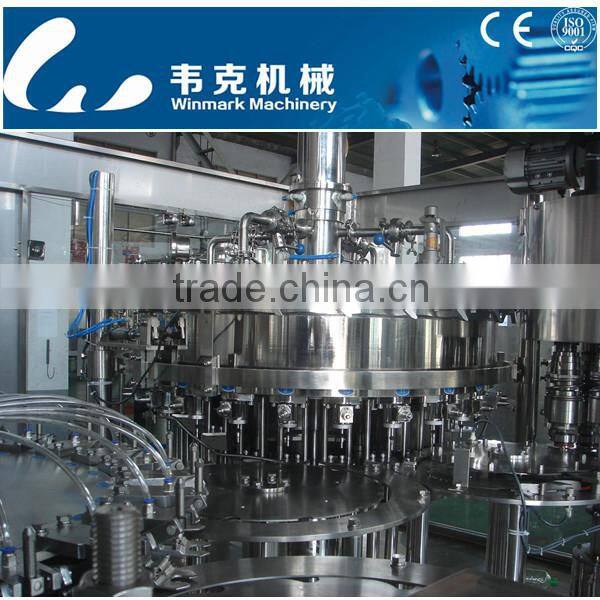

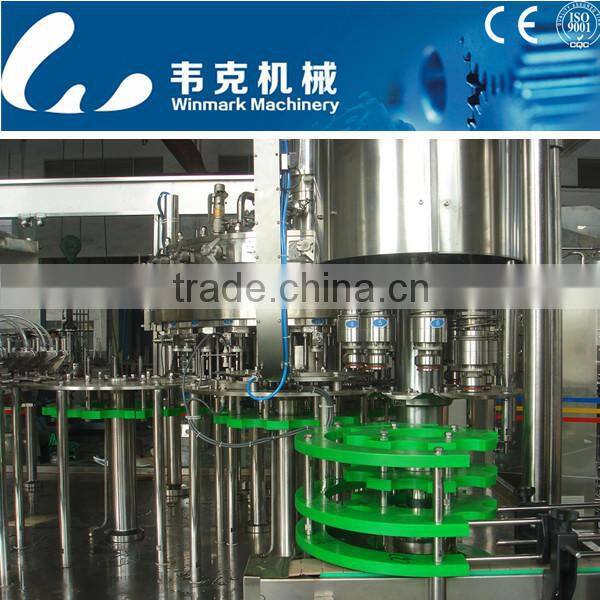

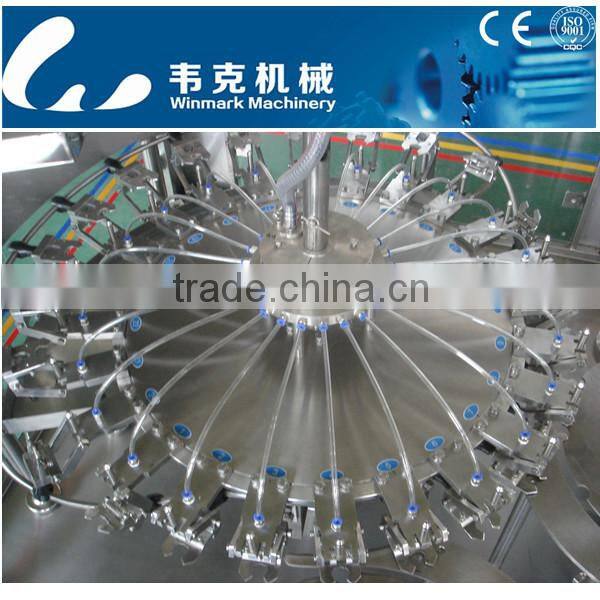

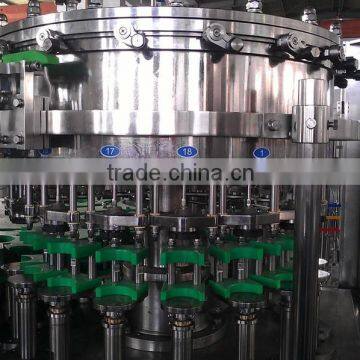

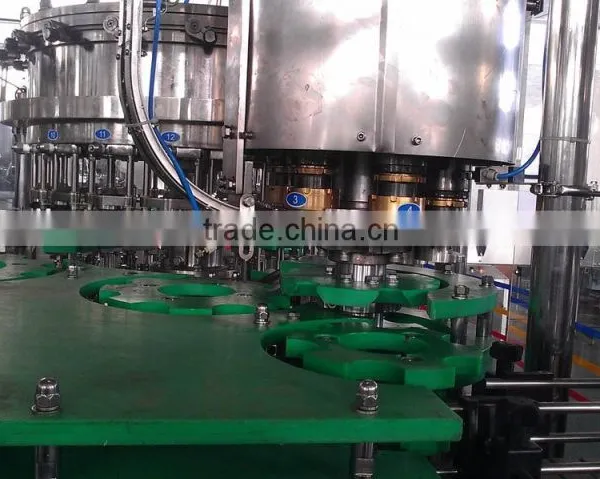

DCGF Series Soft Drink Filling Machine
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | Winmark | Model Number | DCGF | |
| Voltage | 380V | Power(W) | 3.8KW | |
| Weight | 4500KG | Dimension(L*W*H) | 2950*2150*2400 | |
| Processing Types | CARBONATED DRINK | Certification | CE ISO SGS | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

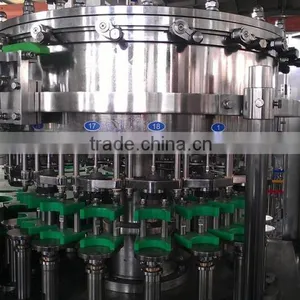

soft drink filling machine
Products Introduction:
This DCGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled carbonated beverage machinery. The DCGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

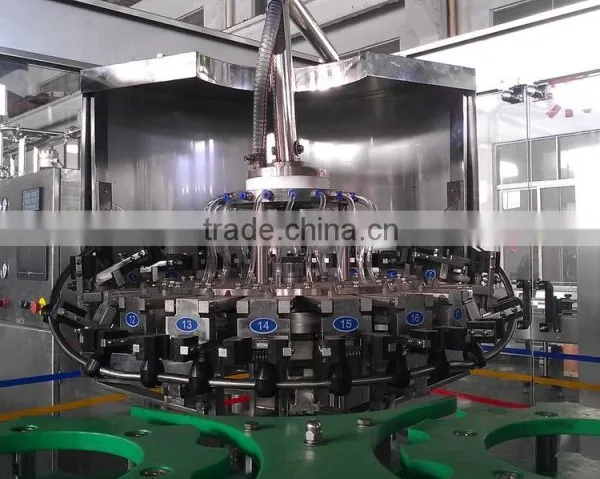

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

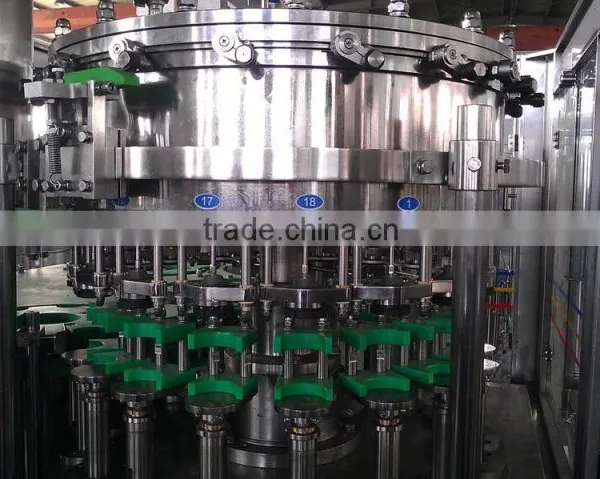

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Technical parameters:
Model | Washing heads | Filling heads | Capping heads | Capacity (b/h)500ml | Power (KW) | overall dimension(mm)
|
DCGF16-16-6 | 16 | 16 | 6 | 3000-4000 | 2.2 | 2400X1800X2400 |
DCGF18-18-6 | 18 | 18 | 6 | 4000-5000 | 3.1 | 2500X1850X2400 |
DCGF24-24-8 | 24 | 24 | 8 | 7000-80000 | 3.8 | 2900X2150X2400 |
DCGF32-32-12 | 32 | 32 | 12 | 10000-11000 | 5.6 | 3600X2500X2400 |
DCGF36-36-12 | 36 | 36 | 12 | 12000-13000 | 6.5 | 3750X2600X2400 |
DCGF40-40-12 | 40 | 40 | 12 | 14000-15000 | 7.2 | 4000X2800X2400 |
