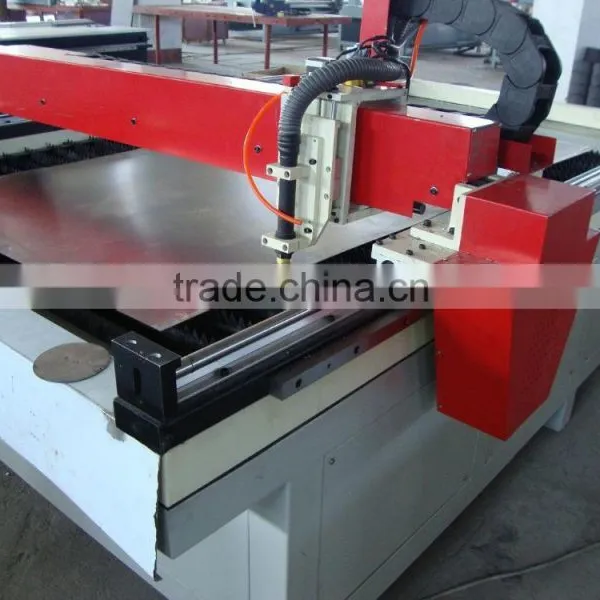

high speed and power cnc metal plasma cutting machine/metal sheet cnc plasma cutting machine
Product Character
1. Plasma machine uses light structural design,with good rigidity structure, light deadweight and small movement inertia.
2. Plasma machine,the gantry structure, ,X,Y,Z axis all use straight rail that make the machine driving smoothly with high-precision.
3. Plasma machine aiming at cutting three dimension LED character, trough metal panels and floor cutting, the accuracy can reach good indicators.If it equipped with United States HYPERTHERM plasma source the machine can reach threshold.
4. Plasma machine is equipped with other advertise equipment (blister machine,engraving machine), forming the advertising word processing pipeline. Completely solve the traditional manual processing methods. Improve the efficiency of several times.
5. Cutting mouth of plasma cutting machine is small, tidy,and avoid a second dressing processing.
6. Plasma machine can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates ,metal plates and so on.
7. Plasma machine is high cutting speed, high precision, and low cost
8. The numerical control system disposes high, the automatic striking arc, the performance is stable.
9. Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document,also can change software to read AUTOCAD softwares produce DXF form documents. The control system uses the U-disk exchange processing document, easy to operate.
Cutting Information
|
Material
|
Thickness (mm) |
Current(A) |
The max cutting speed (mm/min) |
|
Mild steel
|
6.4 |
60 |
3353 |
9.5 |
60 |
1600 |
|
12.7 |
60 |
1067 |
|
15.9 |
60 |
787 |
|
20.0 |
60 |
559 |
|
|
Aluminium
|
6.4 |
60 |
3683 |
9.5 |
60 |
1880 |
|
12.7 |
60 |
1395 |
|
15.9 |
60 |
838 |
|
|
Stainless steel
|
6.4 |
60 |
2794 |
9.5 |
60 |
1346 |
|
12.7 |
60 |
889 |
|
15.9 |
60 |
660 |
|
20.0 |
60 |
456 |
Applied Industries
Stainless steel, carbon steel and other metal materials precise cutting, suitable for aerospace technology,rocket, plane, robot, elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc.
Technical Parameter
Description |
XC-1325 Plasma cutting machine |
Working Area(X*Y) |
1300*2500MM |
Working material |
Iron, steel, aluminum, sheets, galvanized sheets, titanium plates |
Cutting thickness |
According to material |
Cutting speed |
0-10000mm/min |
X,Y Transmissions |
Hiwin Square rail,Rack Drive |
Accuracy |
0.02mm |
Motor |
Stepper |
Plasma Power |
Hypertherm |
Software |
Type3 |
Working Form |
Untouched arc striking |
Control system |
DSP |
Power |
8.5KW |
Support input |
G code,HPGL,CAD,PLT |
Weight |
1300Kgs |
Dimension |
3700X2300X1970mm |
Input voltage |
3 phase 380V |
Power frequency |
50 Hz |
Plasma power |
120A or 200A |
Files transfer |
USB interface |
Our Services
1. After service and maintenance.
The equipment after technical service , the installing , operation , maintenance we supply good technical consulting service , user can through telephone or Web ( QQ,MSN .email, remote assistance, and other way ) to communicate with our technical department . Supplier ensure give the feedback in 24 hours after received the question . If the telephone or the remote assistance can't solve the problem , supplier will arrange our engineer to come to user scene for equipment maintenance.
2. Quality warranty.
The equipment warranty is after the inspection OK ,supplier supply the consumables
such as cutting torch ,solenoid valve for free in three month , CNC system and other
control part ,we supply free maintenance for 12 months ( beside the artificial damage . After 12 month ,supplier supply the maintenance , user only need charge the cost of thebasic fee . Supplier supply the different spare and accessory parts in low cost at a long time.
