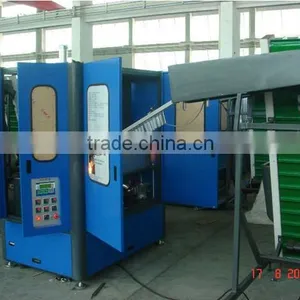

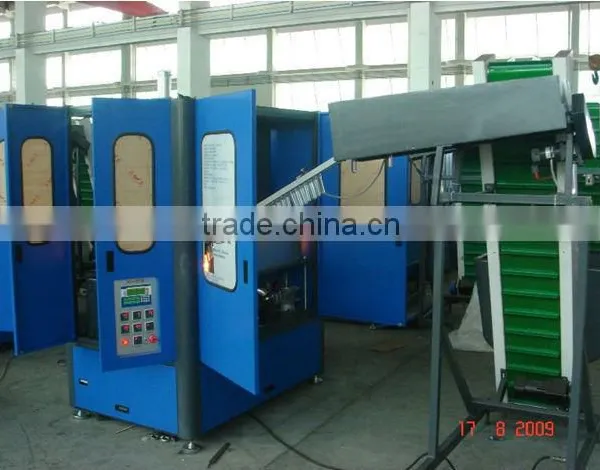

Automatic lineal type PET blowing machine
- 10 Set / Sets per Month
- FOB SHANGHAI
- T/T
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | WINMARK |
Model Number: | CY-D | Type: | Other, Stretch Blow Moulding, Stretch Blow Moulding | Certification: | ISO9001;CE |
Warranty: | ONE YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
blowing machine*FESTO pneumatic parts
*Mittisubushi PLC
*OMRON electrical parts
*Imported trouch screen operating
Automatic PET blowing machine
Introduction:
CY-D series full-automatic pet bottle blow molding machine is the most stable two-step automatic stretch blow molding machine. It has one to four cavities and the maximum size of the bottles is 2L, and the maximum capacity is 3800pcs per hour. It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
Technical parameters:
TYPE | ITEM | CY-D2-1.5 | CY-D2-2 | CY-D3 | CY-D4 |
CONTAINER | Number of cavity | 2 cavities | 2 cavities | 3 cavities | 4 cavities |
Theoretical output | 1800-2500 pcs/hr | 1700-2400 pcs/hr | 2400-3200 pcs/hr | 2800-3800 pcs/hr | |
ntainer volume | 1.5L | 2.0L | 1.5L | 1.5L | |
Max.neck diameter | 38mm | 38mm | 38mm | 38mm | |
ntainer diameter | 90mm | 105mm | 90mm | 105mm | |
ntainer height | 330mm | 330mm | 330mm | 330mm | |
ELECTRICAL SYSTEM | Number of lamp | 32pcs | 32pcs | 40 pcs | 52 pcs |
Max.heating power | 48kw | 48kw | 60kw | 78kw | |
Installation power | 51kw | 51kw | 63kw | 63kw | |
Actual power consumption | 16kw | 16kw | 20kw | 24kw | |
AIR SYSTEM | Operatating pressure | 7kg/cm2 | 7kg/cm2 | 7kg/cm2 | 7kg/cm2 |
Low pressure consuming | 1100 Ltr/min | 1100 Ltr/min | 1400 Ltr/min | 2000 Ltr/min | |
Blowing pressure | ≤40kg/cm2 | ≤40kg/cm2 | ≤40kg/cm2 | ≤40kg/cm2 | |
High pressure consuming | 2000-2500Ltr/min | 2000-2500Ltr/min | 2000-3000Ltr/min | 3000-3500Ltr/min | |
CHILLER WATER | Operating pressure | 5-6 kg/cm2 | 5-6 kg/cm2 | 5-6 kg/cm2 | 5-6 kg/cm2 |
Temperatuer | 10°C | 10°C | 10°C | 10°C | |
Consuming | 5600kcal/hr | 5600kcal/hr | 7600kcal/hr | 7600kcal/hr | |
Flow rater | 30Ltr/min | 30Ltr/min | 45Ltr/min | 45Ltr/min | |
MACHINE | Machine dimension | 3.0×1.7×2.0 | 3.0×1.7×2.0 | 3.0×1.7×2.0 | 2.1×1.9×2.0 |
Machine weight | 2.5ton | 2.8ton | 3.0ton | 3.2ton |
Our technology from Taiwan and Germany,Our machine have good quality and competitive price,Hope cooperate with you!
