Home > Products > Blow Moulding Machine(PET bottle mold) > Bottle Making Machine
Bottle Making Machine
- 10 Set / Sets per Month
- FOB SHANGHAI
- T/T
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | WINMARK |
Model Number: | SV-C-5 | Type: | Other, Stretch Blow Moulding, Stretch Blow Moulding | Certification: | ISO9001;CE |
Warranty: | ONE YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
blow molding machinethe bottle making machine is used for making PET bottle from PET preform
blow molding machine
Bottle making Machine Description

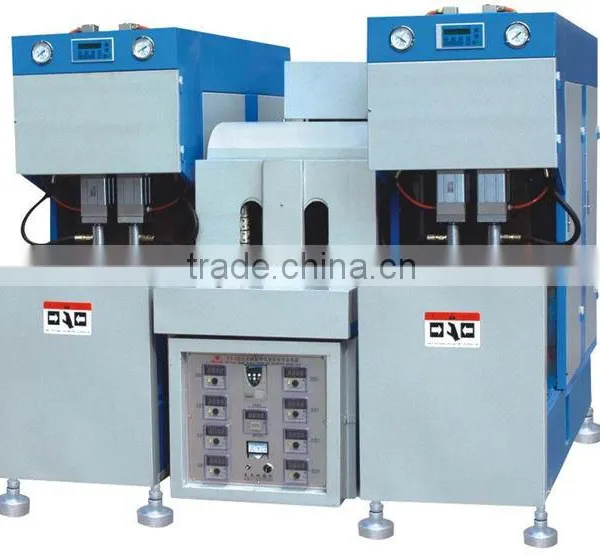

SV-C-5 Semi-automatic bottle blowing machine can blow plastic bottles made of PET, PP, PE, and PC. One drying tunnel is matched with two blowers, which is small in size, productive and energy-saving and fit to blow plastic bottles of various raw material in a big quantity.
TYPE | ITEM | UNIT | TECHNICAL DATA | ||
2-CAVITY | |||||
CONTAINER | Product material | PET/PC/PE | |||
Container volume | L | 0.1-2.5(2-cavity 3-6(1-cavity) | |||
Theoretical output | Pcs/hr | 0.1-2.5L:1700 3-6L:800 | |||
Preform length | mm | 360 | |||
Preform inner diameter | mm | φ180 | |||
MOULDING | Max.mould plate dimension(L×W) | mm | 420×500 | ||
Max.mould thickness | mm | 250 | |||
Clamping force | KN | 150 | |||
Mould opening stroke | mm | 240 | |||
AIR COMPRESSOR | Air compressor | M 3 /Mpa kw | >1.0/3.0 11 | ||
Air pressure for blowing | M 3 /Mpa | 30 | |||
MAIN MACHINE ELECTRICITY | Power | KW | 6 | ||
Voltage/Frequency | KW V/HZ | 380-240-110/50-60(3-phase) | |||
MACHINE SIZE AND WEIGHT | Main machine(L×W×H) | M | 1.55×0.62×2.00 | ||
Main machine weight | T | 0.6 | |||
Heater (L×W×H) | M | 1.80×0.5×1.60 | |||
Heater weight | T | 0.3 | |||
High pressure compressor(L×W×H) | M | 1.90×0.75×1.50 | |||
Air filters | Kg | 10×2pcs | |||
SAFTY | Auto-emergency alarm | SAFETY INTER-LOCKING DEVICE |
About Factory
15years’ experience in filling line machinery.
About Quality
brand-new equipments with latest design and suitable material made,
About After Sale Service
1 year's warranty period and life time technical support.
Our technology from Taiwan and Germany,Our machine have good quality and competitive price,Hope cooperate with you!
