GPS Dog Tracking System for Pet With Exact Accurancy

Specifications

GPS dog tracking system for pet with exact accurancy

Feature

gps dog tracking system
5m accurancy
overspeed/anti-theft alert
sleep mode+voicemonitor

Description

Size: 64 x 46 x 17mm    Package size: 212 x 129 x 59mm

Net weight: 50g  Gross weight: 460g

Ø Converted into call ID positioning in blind area

Ø Voice monitor; SOS function

Ø View Google map on mobile screen

Ø Movement alert; Over speed alert; Shake senser; Geo fence

Ø Traffic mode

Ø Sleep mode

Product Parameter

Ø  Network: GSM/GPRS

Ø GSM/GPRS module: SIM300

Ø Band: 850/900/1800/1900Mhz  or  900/1800/1900Mhz

Ø MCU: STC89

Ø Communication protocol: TCP/UDP

Ø GPS module:New star NS-1513

Ø GPS sensitivity: -159dBm

Ø GPS accuracy: 5m

Ø Time To First Fix: Cold status  45s  Hot status  1s

Ø Wall charger:110-220V  input  5V  output

Ø Battery: 3.7V 800mAh Li-ion battery

Ø Standby: 80-100hours

Ø Storage Temp: -40°C to +85°C

Ø Operation Temp: -20°C to +55°C

Ø Humidity: 5%--95% non-condensing

• GPS and Location Based Service

Location Based service also named A-GPS, when tracker in underground or tunnel ,can get location by ACPS.

• Real time tracking

Real time tracking it by cell phone and platform . Also can support get location every 5 seconds, and the GPS accuracy is 5m .

• Check the history of route

Can check and replay within one year history of route of device ,by web monitor center

• Google map on mobile

Check the location with google map on mobile.

• Geofence and movement alert

Set up a geo-fence for the unit to restrict its movements within a district ,unit will send a message to the authorized numberwhen it breaches the district.

• Shake and overspeed alert

Set shake and overspeed alert,unit will send message when shaked and overspeed.

• Traffic model

When in traffic model the device will save power and GPRS. When car don’t mover,the device will got to sleeping automatically. When sleep the consumption is only 1-3mAh can save power 80%. When t car move, the device will be wake up to tracking the car, and send the data to cell phone or monitor center.

• Data save

it is important to save the data,when there is no gsm signal all the data will be saved and will be send again when get the signal..

• Sleeping model

When device don’t receive any task ,it will go to sleep ,When sleep the consumption is only 1-3mAh. If the device receive the SMS and calling during sleeping, it will wake up and go to work automatically.

Application

Vehicle for rental or manage of outside equipment, etc.

Protect the elder, kid, employee and pet, etc.
Protect the businessmen

Manage the outworker
Covert Tracking

Standard Accessories

1PCS xManual

2PCS x Battery

1PCS xCD

1PCS xWaterproof bag

Pictures for TK106 mini gps tracker

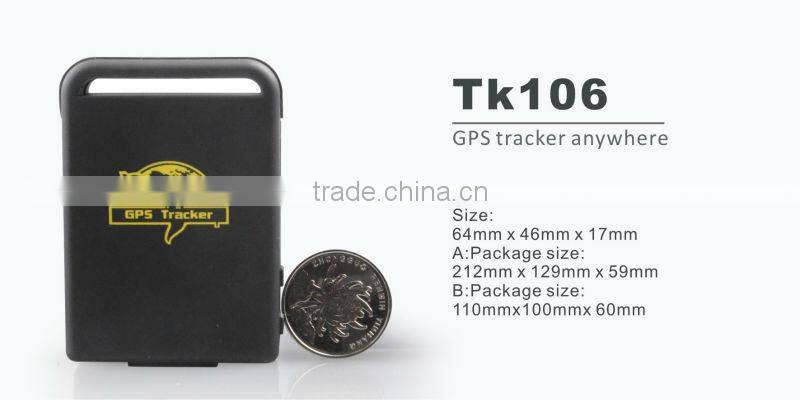

1.The unit picture and size

2.The introduction function of every button

3. The dimension of TK106 unit

4.The postion of insert sim card

5.The package of TK106 unit(we have 2kinds of color box for your choose)

6.The accessories new charger  of TK106

7.TK106 can use for smart phone/peoples/animals/cars
