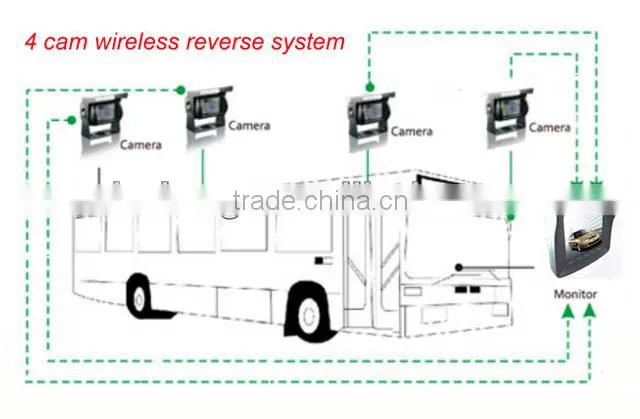

12M long range support max 4 wireless camera bus wireless backup camera system dashboard car monitor

Specifications

1.dashboard car monitor
2.support 4 wireless cameras
3.12M max distance
4.IP68 Waterproof camera
5.CE FCC ROHS

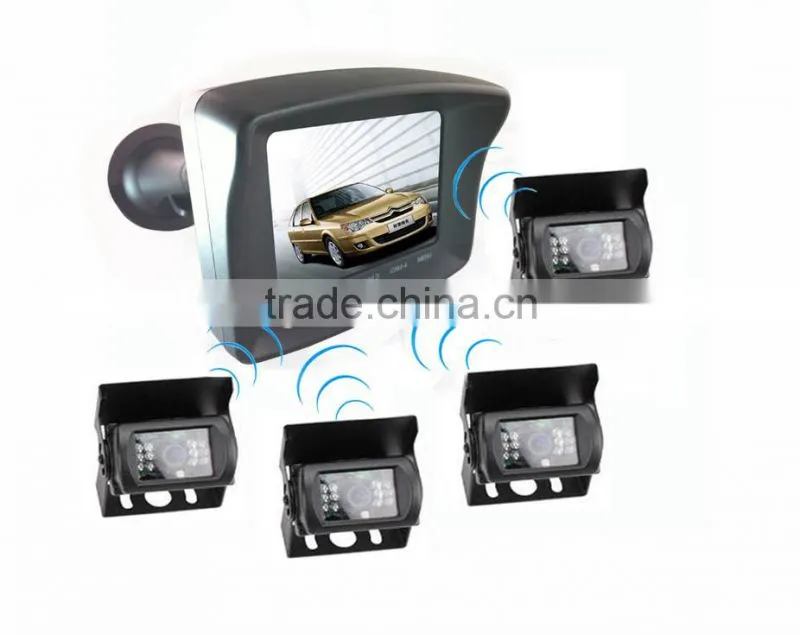

12M long range support max 4 wireless camera dashboard car monitor



Monitor:

1.3.5” TFT display 320*(RGB)*240

2.DC12V-24V supply voltage

3.Support up to 4 cameras

4.Up to 12m max transmission range

5.Receiving Sensitivity:-83dbm

6.Operating Temperature: about -10°C~60°C

7.Demension: 4.1*1.5*3.5inches

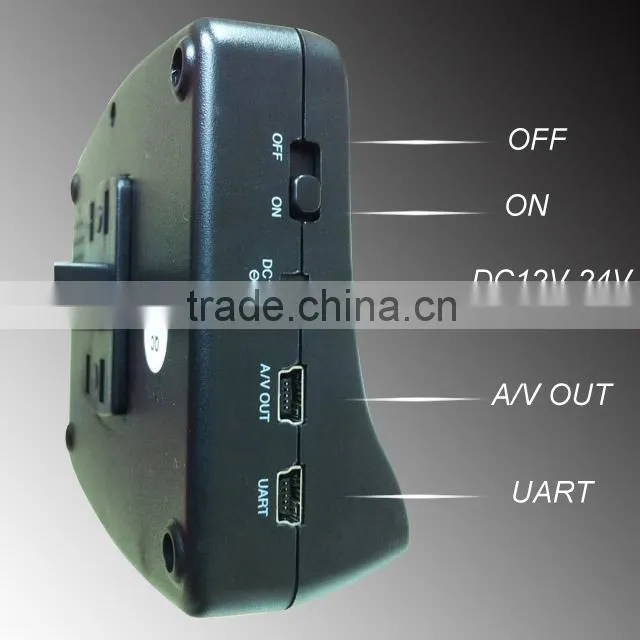

8.AV-out port-for connection to TV or larger screen

9.Windscreen suction mount

10.Easy installation for caravans and most vehicles

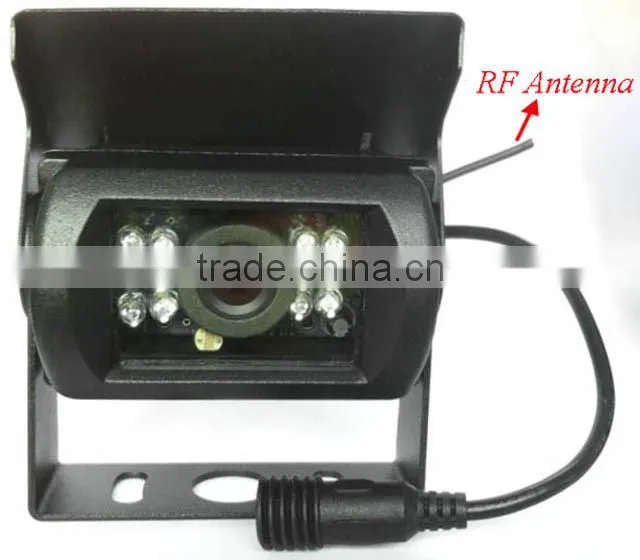

Camera:

1.CMOS image sensor of 640*480 resolution

2.Viewing angle: Vertically Adjustable

3.Night vision: 20-26 feet(6-8m range), with 12 IR night vision lights

4.DC12V-24V supply voltage

5.Transmission Power:+20dm

6.Operating Temp.: about -10°C~60°C

7.Demension: 7*5.84*4.32cm, 258g

1) One-to-one service with efficient support;

2) Speedy shipment: we could arrange the shipment within 5 business days after we have confirmed the payment;

3) We could offer the best competitive price;

4) We could supply unique items;

5) Quality stability, can to provide certification of products( such as CE, FCC, ISO9001:2000);

6) Convenient payment methods: Paypal, bank-in, T/T and Western Union.

7) Product Warranty: The goods on appro for six months ,and to repair it free for a year,which we will bear the expense.

1. Automatic scroll function:



The display monitors come with an automatic scroll function. The display willl constantly scroll through

each connected camera. Each camera will be displayed for a period of 5 seconds and then the next camera’s image will be displayed.

Eg. If the monitor have been programmed to all four camera positions, the scroll sequence willl be as follows:

CAM1(5 seconds display),

CAM2(5 seconds display),

CAM3(5 seconds display),

CAM4(5 seconds display), and then will return to CAM1, and repeat the scroll cycle.

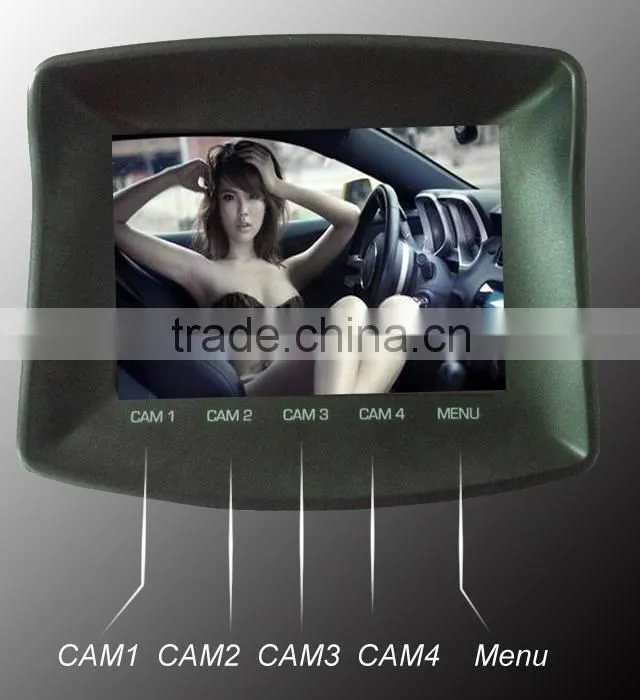

2. Camera lock function

  At any time during operation, the scroll sequence can be stopped for 10 seconds

on any programmed camera position by pressing the corresponding CAM1 to CAM4 button, or stopped and locked

on any programmed camera postion by pressing and holding the corresponding CAM1-CAM4 button for 2 seconds.

Press the CAM1 to CAM4 button corresponding to the camera that’s locked to remove the lock

and resume scrolling through all programmed camera positions.

For example, if the camera on the rear of your vehicle or trailer is programmed to the CAM1 position, you can press the CAM1 button at any time to stop the scroll sequence, and lock on CAM1 for 10 seconds or constantly. To remove the lock, press the CAM1 button at any time to resume scrolling through all programmed camera positions.
