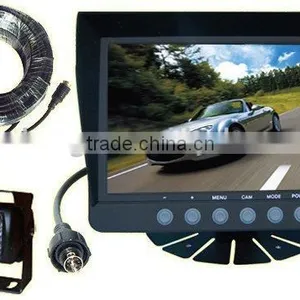

7" Monitor and a 120 Degree Mounted RV Backup Camera

7" Monitor and a 120 Degree Mounted RV Backup Camera thumbnail-1
7" Monitor and a 120 Degree Mounted RV Backup Camera photo-1
US$ 50 - 70 MOQ: 100 Sets
Key Specifications
Get Latest Price
Certification:
CE
Place of Origin:
Guangdong, China
Brand Name:
Chelong or your Logo
Contact Supplier Request Quote Chat Now
Shenzhen Chelong Electronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CE
Place of Origin Guangdong, China
Brand Name Chelong or your Logo
Model Number CL-7014D
Warranty 1 Years, 12 monthes

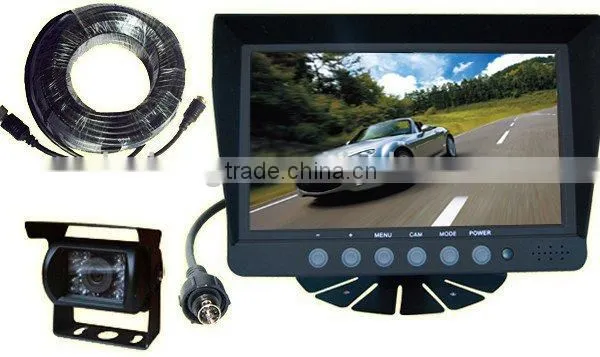

    7" Monitor and a 120 degree Mounted RV Backup Camera

1.Quick details



7" stand-alone rear view LCD monitor
1*20 meters aviation cable
1* CCD rear view camera





2.Features:

Suitable for large and small size vehicles
Automatic change to backup view when on reverse position
7" stand-alone rear view LCD monitor with Sunshade design,digital screen
Waterproof, heavy-duty block camera with sun vision, easy to mount and adjust
Camera uses SHARP 1/3" high-resolution CCD and wide field of view lens
Built in high-powered IR LED for night vision function
20M extension cable
Two ways Camera input (Aviation jack)
Car backing backlight function,automatic image switch to AV2
Digital panel





3.Technology Data:



Bus Heavy-duty Monitor:
7" Stand-alone lcd monitor(16:9)
Pixels : 800(W)xRGBx480(H) ; PAL or NTSC
Power supply: DC12V-24V
Operation temperature : -10°C ~ +50°C
Storage temperature : -20°C ~ +60°C
Adjustable image brightness/color/contrast
2 video input
Rubber base protective coating
Adjustable bracket installation
Switch display mode by remote control
Car backing backsight function, automatic image switch to right or left
Video signal disappear, display blue screen
Bus Heavy-duty Waterproof Rearview Color CCD Camera:
System Compatibility: PAL/NTSC
Lens: 2.8mm, F2.0, 108º, Infrared: 18pcs
Resolution: PAL 512(H)*582(V), NTSC 512(H)*492(V)
Horizontal Resolution: 420 TV line
S/N ratio: >48dB
Connection Type: RCA or 4-pin connector optional
Microphone: NO (Available with charge)
Power Supply: DC 12V
Waterproof rate: IP66
Operation Temperature: -20°C~70°C (RH: 95% Max.)

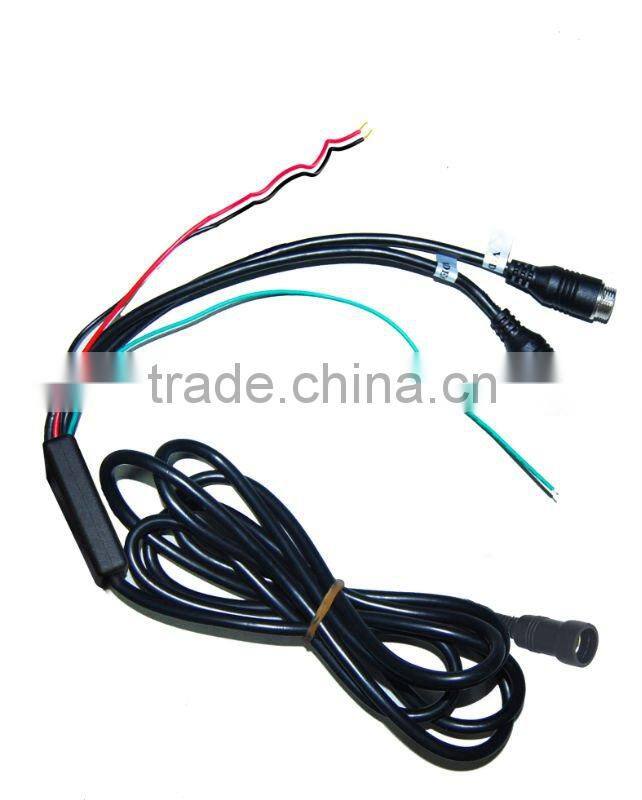

Bus & Truck Waterproof Camera Extension Cable:
Cable Length: 20 meters
Connector Type: 4-pin Female & Male
5m/10m/15m Available
Waterproof & Heavy-duty



  Any questions, please feel free to contact us.

          We will try our best to provide you the perfect product.

                       We promise you our high quality, competitive price and best service.

  ===============   ===============    ==============   ============

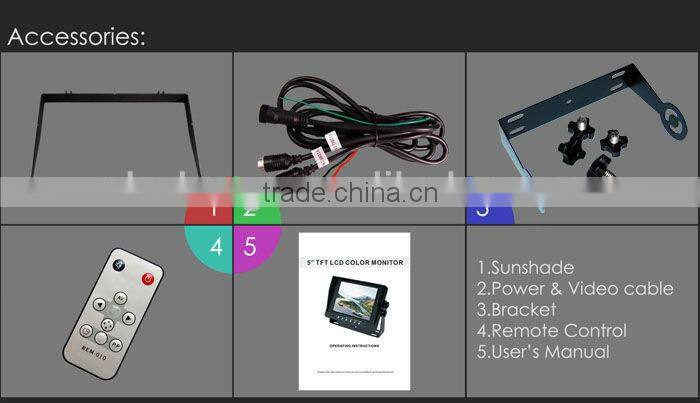

4. Pictures





7" Monitor and a 120 degree Mounted RV Backup Camera7" Monitor and a 120 degree Mounted RV Backup Camera7" Monitor and a 120 degree Mounted RV Backup Camera

  7" Monitor and a 120 degree Mounted RV Backup Camera7" Monitor and a 120 degree Mounted RV Backup Camera7" Monitor and a 120 degree Mounted RV Backup Camera7" Monitor and a 120 degree Mounted RV Backup Camera
