Felt for Tissue Paper Machine

Felt for Tissue Paper Machine thumbnail-1
Felt for Tissue Paper Machine photo-1
US$ 12 - 30 MOQ: 1 Kilogram
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
FRD
Model Number:
FRDC
Contact Supplier Request Quote Chat Now
Qinyang City Friends Machinery Equipment Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name FRD
Model Number FRDC

 Double Layer BOM Felt /Hot Sale Tissue paper machine felt



Product Description

felt for tissue paper machine



SUMMARIZING

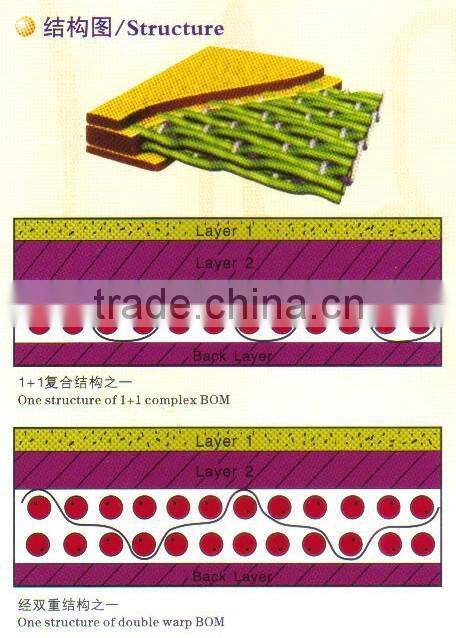

Double Layer BOM Felt includes 1+1 composite structure and double layer of MD yarn structure. 1+1 composite structure BOM is consisted of two different thickness of base material. Both of these base materials can be changed to different construction and sizes to satisfy the requirement of different paper machinery. It process high quality properties such as high-press resistance, good flexibility, good permeability, good size stability. less elongation, excellent tensile strength blind hole mark, groove mark etc and can eliminate vacuum marks. Applying to many kinds of press such as: groove press, vacuum suction press, multi-press, large diameter nip-roll press which can produce high-grade printing paper, newspaper, technical paper, packing paper, high-grade paper board etc.

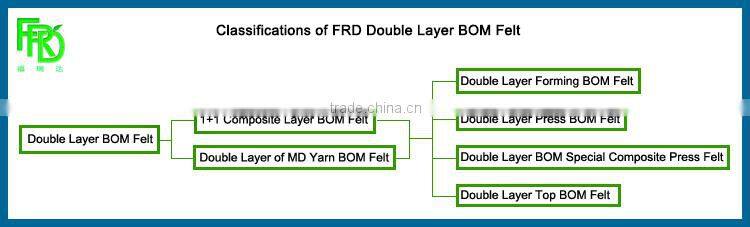

Classifications of Double Layer BOM Felt

felt for tissue paper machine



APPLICATION:
1. Paper machine:Multi-cylinder, Super Forming, Fourdrinier,

2. Superposition Wire, Nip Wire Paper Making Machine, etc.

for different kinds of paper machine press felt and forming felt.

3. Machine Velocity:≤1000m/min
4. Paper: ≥8g/m2 kinds of paper
5. NIP:60-200kN/m



TECHNICAL PARAMETER FOR DOUBLE LAYER BOM FELT
1. Felt GSM:950-1450
2. Felt GSM Tolerance:≤±4%
3. Air Permeability:30~110cfm
4. Tensile Strength:≥3000N/5cm
5. Elongation Percentage:≤0.6%
6. Width Variation:≤±2cm

felt for tissue paper machine



No.

Style

GSM

Structure Style

Application

Felt’s Properties

1

F67501

950~1300

double layer,

domestic material

corrugating,

Kraft paper,

package paper

excellent tensile strength,

good filtration & absorbability,

dimension stability,

long life performance

2

F67502

1000~1100

double layer,

domestic material

corrugating,

Kraft paper,

package paper

excellent tensile strength,

good filtration & absorbability,

dimension stability,

long life performance

3

F67504

900~1100

double layer,

domestic material

corrugating,

Kraft paper,

package paper

excellent tensile strength,

good filtration & absorbability,

dimension stability,

long life performance

4

F67505

1100~1400

double layer,

imported material

writing & printing paper,

newspaper,

package paper,

Kraft paper

light trace,

high line press resistance,

long life performance

5

F67520

1200~1500

double layer,

imported material

writing & printing paper,

newspaper,

package paper,

Kraft paper

light trace,

high line press resistance,

good filtration,

dimension stability,

long life performance

6

F67521

950~1300

double layer,

imported material

corrugating,

Kraft paper,

package paper

excellent tensile strength,

good filtration,

anti-abrasion,

dimension stability,

long life performance

7

F67522

1000~1100

double layer,

imported material

Kraft paper,

paper board

excellent tensile strength,

good filtration,

anti-abrasion,

dimension stability,

long life performance

8

F67523

1200~1500

double layer,

imported material

writing & printing paper,

newspaper,

package paper,

Kraft paper

light trace,

high line press resistance,

good filtration,

dimension stability,

long life performance

9

F67524

900~1100

double layer,

imported material

corrugating, Kraft paper,

package paper

excellent tensile strength,

good filtration,

dimension stability,

long life performance
