split pressurized solar thermal collector panel export to Dutch,Australia,UK,Germany

Specifications

solar thermal collector:
1,export to EU,and USA market
2,friendly enviromental
3,high effiency

heat pipe solar thermal collector



Heat Pipe Solar Collector Work Principle:                                                                  1) The operation of the solar collector is very simple.



 2) Solar absorption: solar radiation is absorbed by the solar tubes and converted into heat.



 3) Solar heat transfer: heat pipes conduct the heat from within the solar tube up to the header pipe



4) Solar energy storage: water is circulated through the header, via intermittent pump cycling. Each time the water circulates through the header, the temperature is raised by 5-10C. Throughout the day, the water in the tank is gradually heated.











Specification:



a. Module design, arbitrary combination, harmonizes with the building perfectly



b. Intelligent control and automatic operation



c. Anti-freeze: Using the anti-freezing liquid as the medium and the controller has the anti-freezing function



d. Multifunction: bathing, washing, domestic heating etc



e. Work at anytime and enjoyable.



f. Material of Model



Detailed introduction:





1)  The pipeline is made of red copper and conducted by heat transfer medium liquid



2) Temperature preservation is equipped with standard electric water heater setting, automatic temperature control exchanger, and increased anode magnesium bars sticking to prevent furring



3) The insulating layer uses polyurethane bulk bubble and has a good effect of temperature preservation



4) Water tank (interior): Stainless steel inner tank



5) Manifold : aluminum alloy out casing & red copper flow passage



6) Glass tube: new trivalent element heat tube, borosilicate glass 3.3



7) Solar working station



8) With heat pipe: anti-freezing > -35 degrees centigrade



9) Water capacity: 150L, 200L, 250L, 300L, 500L



10) Pressure: 6 Bars



11) Daily efficiency: >= 55%(>=42% in winter)



12) Heat preservation: 72h to 80h



13) Electric heater: 1.5Kw to 3Kw







Measure and load quantity









Item No.	Solar Vacuum Tube		Collector	Absorber Area(m2)	Loading Qty / sets
	qty / pcs	size / mm			20GP	40GP	40HQ
DIYI-C01-10	10	Φ58X1800	1 pc	1.7X1.12	140	262	323
DIYI-C01-12	12	Φ58X1800	1 pc	1.7X1.16	134	254	313
DIYI-C01-15	15	Φ58X1800	1 pc	1.7X1.26	120	245	291
DIYI-C01-20	20	Φ58X1800	1 pc	1.7X1.64	92	187	222
DIYI-C01-24	24	Φ58X1800	1 pc	1.7X2.10	82	165	195
DIYI-C01-25	25	Φ58X1800	1 pc	1.7X2.12	80	163	193
DIYI-C01-30	30	Φ58X1800	1 pc	1.7X2.38	69	140	166

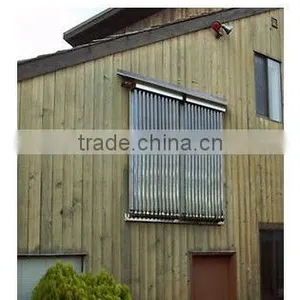

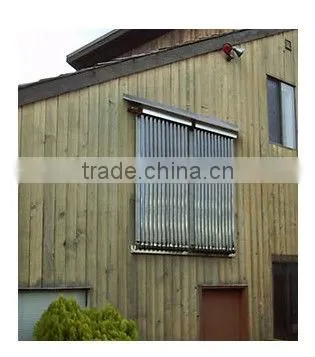

Installation pictures:
