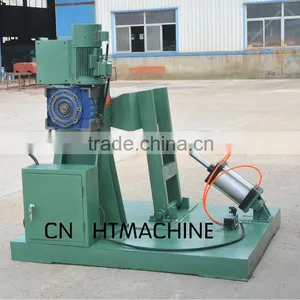

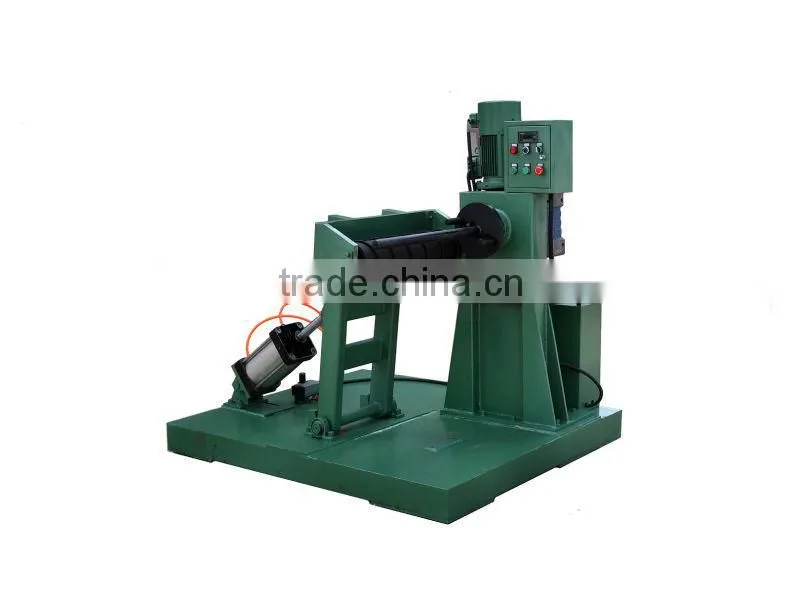

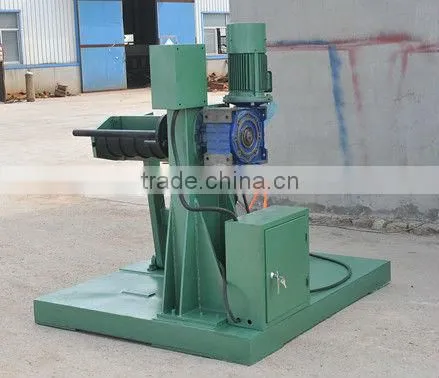

Help CenterSemi-automatic Tire Building Machine
Related Products
-
High Efficiency Tire Retreading Boiler MachineUS$ 5,000 - 100,000MOQ: 1 Set -
After-sale Provided Rubber Vulcanizing Tank Vulcanizing Boiler Rubber Curing Tank Tire Retreading BoilerUS$ 5,000 - 100,000MOQ: 1 Set
-
Tire Retreading Equipment Tire Retreading Machine Hydraulic Tire Vulcanizing BoilerUS$ 5,000 - 100,000MOQ: 1 Set
-
Enviroment Protection Tyre Retreading MachineUS$ 8,000 - 40,000MOQ: 1 Set
-
Truck Tire Recycling Machine to Grind Tire Tire Cutting Machine Machine to Cut TireUS$ 3,000 - 75,000MOQ: 1 Set
Specifications
8"-18" Tyre Building Machine:1 The machine can making motorcycle tube
2 connecting and easy to use
3 environmental and safe
Cycle tyre building machine
Cycle tyre building machine(Tyre Building Machine, Tyre Machine)is used to shape the external type of motorcycle.
Usage of Cycle tyre building machine(Tyre Building Machine,Tyre Machine):
This machine is widely used for type shaping both at home and abroad. It is mainly used to shape the external type of motorcycle, vacuum external tire of motorcycle and forming of wired-edged external tire of bicycle .It combines cord fabric pasting, steel wire mounting, cord fabric wrapping and type surface gluing together and therefore enjoys high automation. Being easy to operate, this equipment is an advanced shaping facility in the country.
Structure:
The machine is comprised of the shaping drum, cord fabric pasting system, steel wire mounting device, ultra red cord fabric & type surface positing system, pressing structure, cord fabric & type surface after-treatment equipment, feeding and coat fabric reeling structures.
Technical parameter:
| size of tyre | 8"-18" |
| cord fabric roll diameter(max) | 400mm |
| inner cloth roll diameter | 300mm |
| revolution of drum | 180/60rpm |
| main drive motor | 2.2kw |
| under stitcher motor | 0.55kw |
| ply service motor | 1/2hp*4p*1/20/each ply |
| compressed air | 5-7kg/cm² |
| overall dimension | 2300*2200*2050 |
| building speed |
2 ply building 500pcs/8hrs 4 ply building 400pcs/8hrs |
