high performance x(s)n 75l turning-over type kneader to knead and mix rubber and plastics
- 50 Set / Sets per Month
- Qingdao Port
- T/T Credit Card
Product Details
| Condition: | New | Type: | Rubber Kneader | Place of Origin: | Shandong, China |
| Brand Name: | CN Huatuo | Model Number: | XSN35-XSN110 | Voltage: | 380v or different |
| Power(W): | model varies | Dimension(L*W*H): | model varies | Weight: | 6.5-16tons |
| Certification: | CE and ISO | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
high performance x(s)n 75l turning-over type kneader to knead and mix rubber and plastics
Structure Characters of high performance x(s)n 75l turning-over type kneader to knead and mix rubber and plastics
The internal mixers of this series adopt elliptical tangential rotors. The working surfaces of the rolls are coated on with wearable hard alloy by built-up welding method. The internal surfaces of the mixing chamber and the working surfaces of the pressing ram device are all treated with hard chrome plating, which are durable and corrosion proof and have a longer service life.
The rotors, the mixing chamber and the discharging door are all structured with circulating channels to realize the circulation of heat transmission medium. According to processing requirements, the mixing materials may be heated with hot steam or cooled with cold water.
The rotors are supported by rolling bearings, which are easy to maintain and have a long service life.
The transmission system adopts NGW planetary hardened-gear speed reducer, which has a compacted structure with higher transmission efficiency, lower noise and longer service life.
The pressing ram device is driven by pneumatic cylinder to press onto the mixing materials to force them equally mixed o as to increase productive efficiency.
The feed hopper door is arranged at the back of the machine and the mixing chamber adopts hydraulic driven tilting discharge device. The operation is steady and reliable. It is easy to clean up the chamber and change the color of materials.
Both manual and automatic modes are arranged to operate PLC electric control system. It is easy to exchange the modes and reliable to operate the controller.
Application of high performance x(s)n 75l turning-over type kneader to knead and mix rubber and plastics
The machine is applicable for plasticating and mixing of rubber and plastics,and also applicable for mixing or kneading other sticky materials

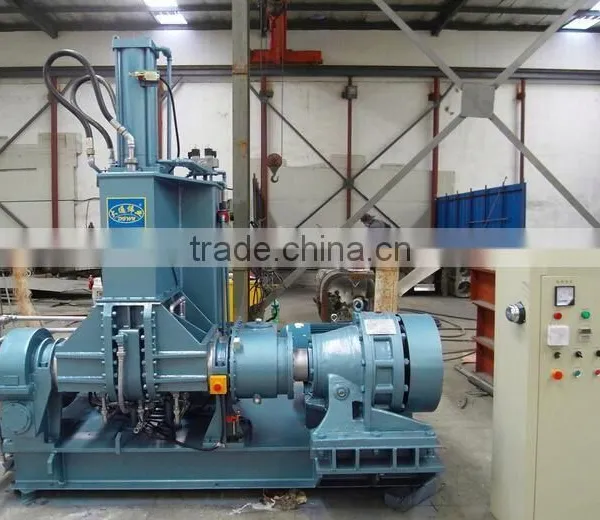

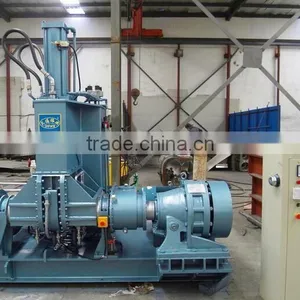

Picture of high performance x(s)n 75l turning-over type kneader to knead and mix rubber and plastics
Certification of high performance x(s)n 75l turning-over type kneader to knead and mix rubber and plastics
FAQ of high performance x(s)n 75l turning-over type kneader to knead and mix rubber and plastics
1,Are you manufacturer?
Yes,we are BV approved rubber products manufacturer in China.
2,Can you design new product for us?
Yes,we have a professional development team that make new products according to your requirements.
4,What’s your payment term?
Common is 30% deposit by T/T,the balance paid against shipping documents.
Or L/C at sight.
5,Are you near to Qingdao airport?
Yes,only within 1.5hours.
And within 1 hour to Qingdao sea port.
50 minutes to Qingdao Railway Station.
6,Do you have any certificate of your products?
Yes, CE, BV, SGS,
Package of high performance x(s)n 75l turning-over type kneader to knead and mix rubber and plastics
----1.It has specialized in rubber machinery for nearly 30 years;
----2.It is a 100% real manufacturer, rather than a trading company;
----3.We give 36 months quality guarantee and long-term technical support.
IF YOU HAVE ANY INTEREST PLEASE :
CONTACT US :
Email :
Website :
WELCOME TO VISIT OUR FACTORY ANY TIME !
