Sound proof 230kVA generator with CE
Sound proof 230kVA generator features
1.XingNuo alternator is the best alternator with Stamford technology, we are the OEM.
2.Open frame type/ silent type/ weatherproof type/ trailer/ container type, for your option.
3.One year warranty as standard, parts and services are provided for whole life.
| Gen-set model: SP184GFS | |
| Standby power: 230kVA | |
| AC 3-PHASE 4-WIRE, Y-CONNECTION | Voltage: 400V/230V |
| Frequency: 50HZ | Rated current: 331A |
| Power factor: COSΦ=0.8 | Quality control: ISO9001 2008 |
| The regulating rate of steady voltage | ≤1% |
| The time of steady voltage | ≤1.5sec |
| The waving rate of voltage | ≤1.0% |
| The regulating rate of steady frequency | ≤3% |
| The regulating rate of instantaneous frequency | ≤±10% |
| The time of steady frequency | 3sec |
| The waving rate of frequency | ≤1% |
| Dimension (L×W×H) (mm) | 2400×1100×1800 |
| Gross weight (kg) | 2000 |
| ENGINE | |
| Model | 1306A-E87TAG4 |
| Rated Power: | 209KW |
| Number of Cylinders | 6L |
| Cycle | Four stroke |
| Bore×Stroke(mm) | 116×136 |
| Compression Ratio: | 16.9:1 |
| Displacement(L) | 8.7 |
| Speed Governor | Electrical |
| Cooling System | Water-cooled |
| Fuel Consumption at 100% Load | 206g/kwh |
| Starting Method | Electrical starting |
| ALTERNATOR | |
| Brand | UCD274J |
| Rated power | 184KW |
| Type: | Brushless ,Self-excite, AVR automatic voltage regulating |
| Number of Phase | 3 |
| Connecting Type | 3 Phase and 4 Wires |
Sound proof 230kVA generator control system
a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers

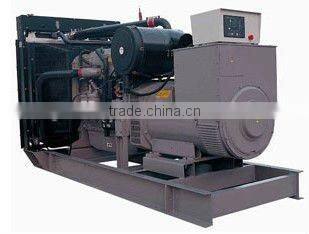

Sound proof 230kVA generator pictures
