NKK waterproof switches WT12L SPDT IP67 environmentally Sealed toggle switch
Available in 10A toggle switches.
Mechanical Life: 50000 operations minimum
Electrical Life: 15000 operations minimum
WT-12AL single pole on-on switch 10A.125V.AC; 6A.250V.AC;
Operating Temp Range: –30°C through +70°C (–22°F through +158°F)
Front Panel Seal: IP67 of IEC60529, dust tight & water protected during temporary immersion for all models;

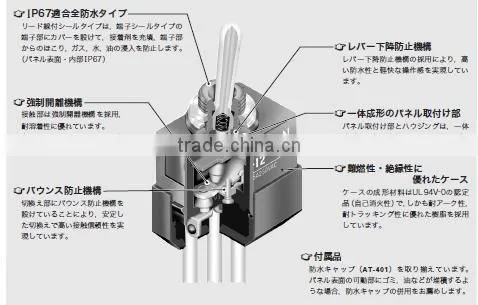

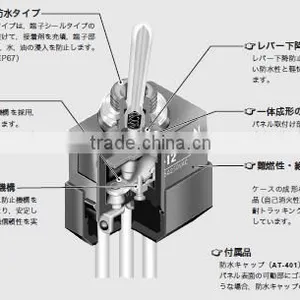

Antijamming design on toggle switches protects contacts from damage due to excessive downward force on the actuator.
IP67 protection of IEC529 Standards and allows use in outdoor or harsh applications.
Single unit construction of the bushing and top of the housing gives added protection from environmental elements.
Specially designed switching mechanism for breaking light welds qualifies these switches to IEC 61058 (UL 61058-1).
Sealed actuator area and epoxy sealed base prevent entry of contaminants.
Minimal contact bounce is achieved with specially designed interlocked switching mechanism.
Outer housing of heat resistant resin meets UL 94V-0 flammability standard and provides high arc and tracking resistance.
nkk switches waterproof switches in stock:
WR11AL; WR-11KLE; WR-11; WR12AS; WR-12KSE; WR-12;
WR13AS; WR-13KSE; WR-13; WT11S; WT-11AS; WT-11;
WT12L; WT-12AL; WT12T; WT-12AT; WT-12
WT12T-133D; WT-12AT-133D;
WT13S; WT-13AS; WT13T; WT-13AT; WT-13;
WT15T; WT-15AT; WT-15; WT18T; WT-18AT; WT-18;
WT19T; WT-19AT; WT-19; WT21S; WT-21AS; WT-21;
WT21T; WT-21AT; WT22T; WT-22AT; WT-22;
WT23T; WT-23AT; WT-23; WT25T; WT-25AT; WT-25;
WT28L; WT-28AL; WT28T; WT-28AT; WT-28;
WT29T; WT-29AT; WT-29;
