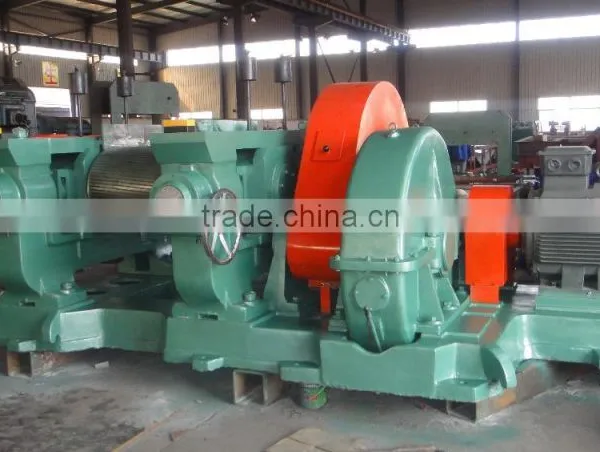

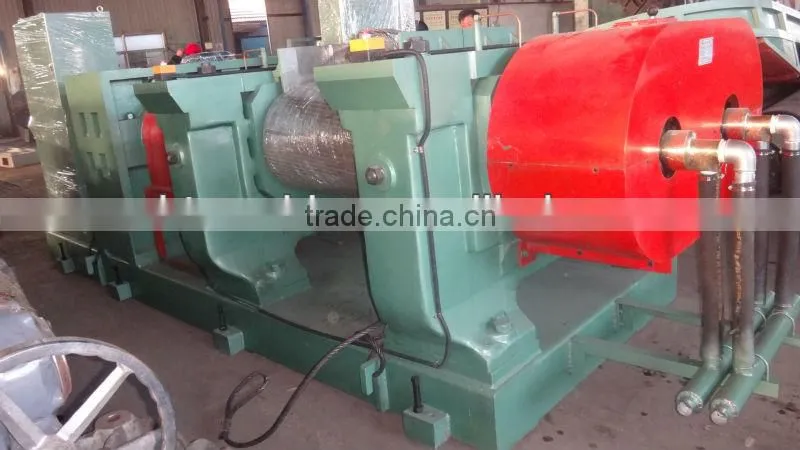

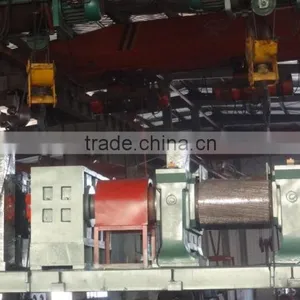

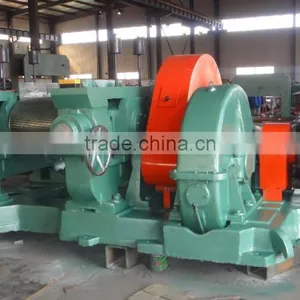

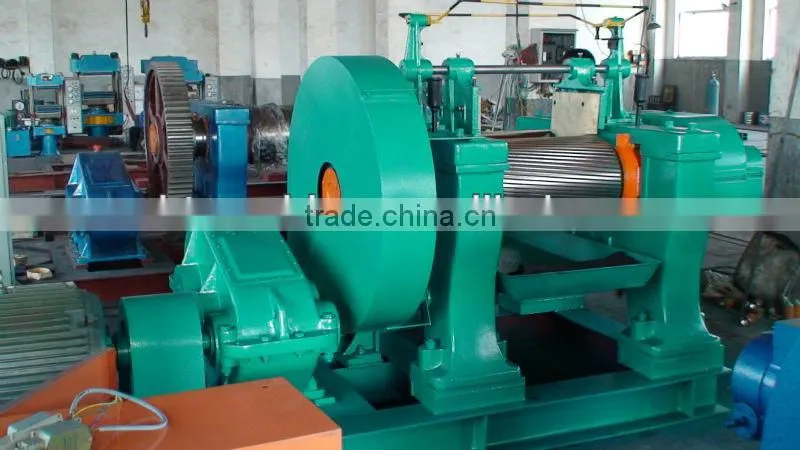

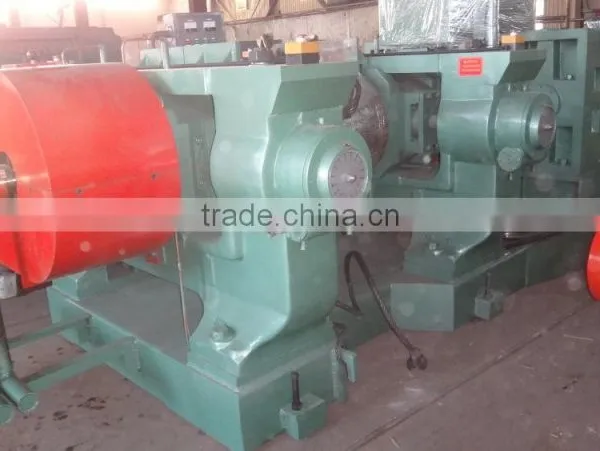

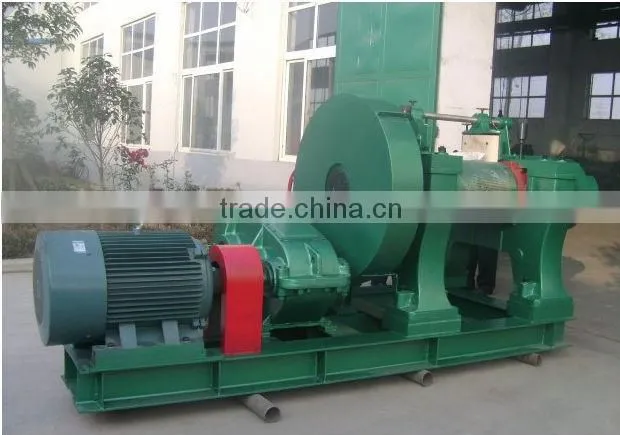

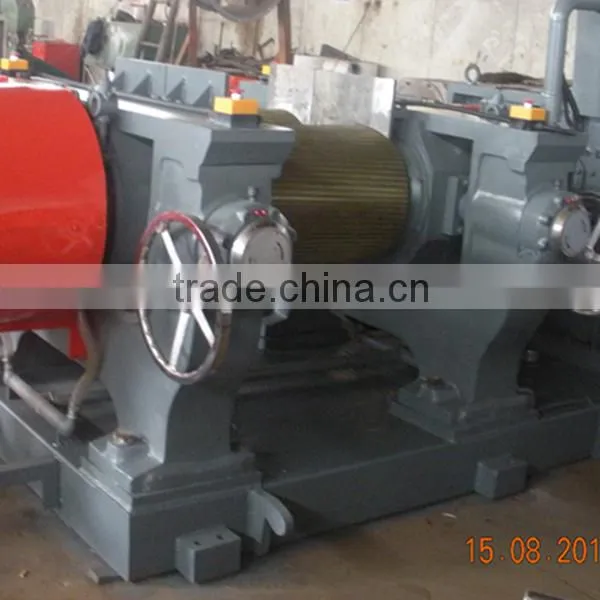

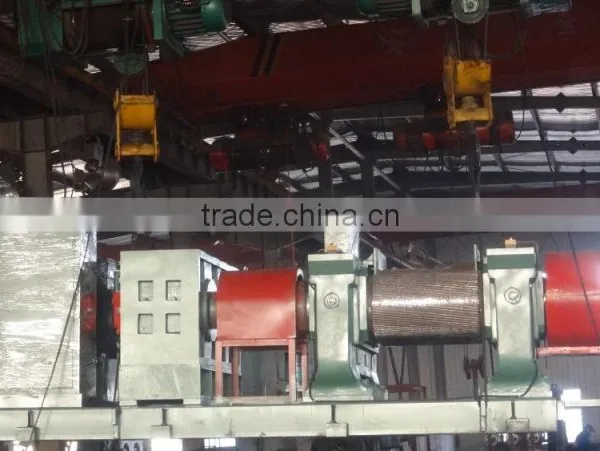

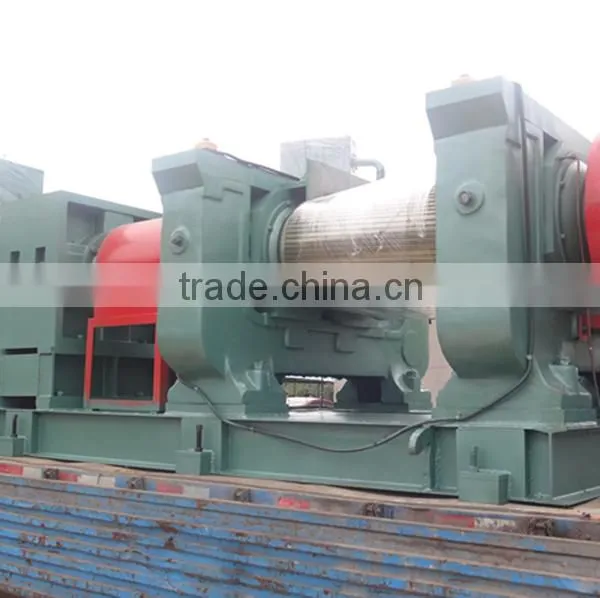

Rubber Crusher Mill
Usage:
the machine is mainly used to grinding waste rubber , tire , tube , flap and break the raw rubber materials.
Structures:
It consists of motor, gear-down reducer, driving gears, speed-ratio gears, front and back rolls, bearings, frame, cover, bed plate, adjusting pin device, emergency stop device, roll temperature adjusting device, lubricating device and material plate, etc.
features:
1. The roll is made of chilled cast iron of vanadium and titanium alloys. (Rolls of G model are made of high grade steel with hard alloy welded on the surface.)

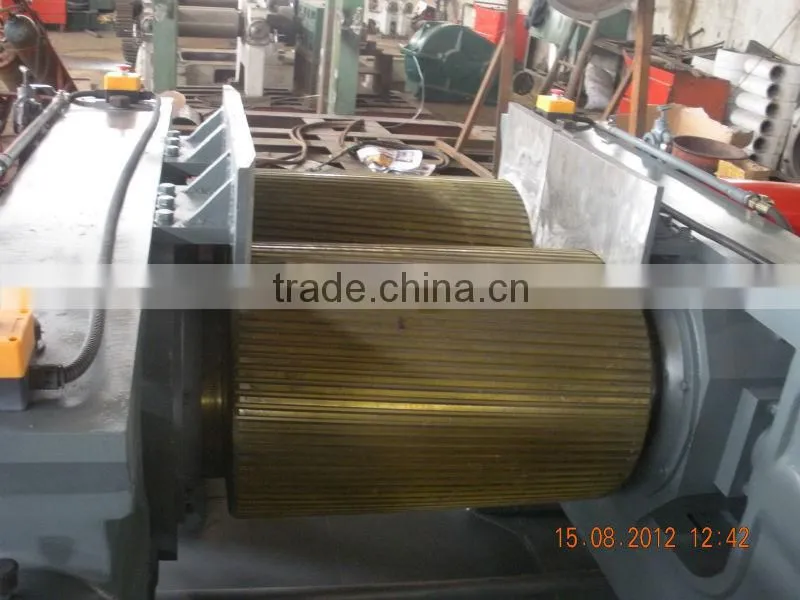

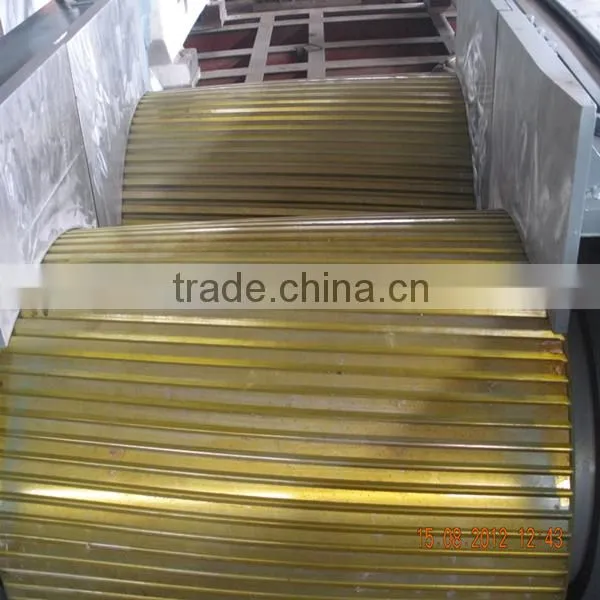

2.The roll face is hard and anti-wear. Both the front roll and the back roll are fluted. The internal cavity of the roll is processed to ensure temperature well proportioned on the roll surface.
3.The machine is equipped with an overload protection device to prevent the major components from being damaged due to overloading.
4.By LTG rollers - cold hard cast-iron security, its surface hardness is made, 68 ~ 75 HS grinding and smooth surface. Inside the hollow cylinder for use, can according to the requirement, the steam and cooling water is used to regulate the temperature of the rolls. Two rolls with different relative rotation speed, rubber roller into two broken sewing machinery in the process.
5.The machine is also equipped with an emergency device. When an emergent accident happens, just draw the safety pull-rod, and the machine will stop immediately.
technique parameter of rubber cracker mill
Item |
XKP400 |
XKP450 |
XKP560 |
Diameter of front roll(mm) |
400 (smooth) |
450(smooth) |
560(smooth) |
Diameter of back roll(mm) |
400 (groove) |
450(groove) |
510(groove) |
Working length(mm) |
600 |
650 |
800 |
Linear speed of front rollm/min) |
17.32 |
23.2 |
25.56 |
Ratio |
1:1.38 |
1:1.38 |
1:1.30 |
MAX gap(mm) |
8 |
8 |
15 |
capacity(kg/h) |
200-300 |
400-600 |
700-1000 |
Motor power(kw) |
45 |
55 |
75 |
Dimension (l*w*h)(mm) |
3950*1800*1780 |
4770*1846*1835 |
5064*2284*1978 |
Weight (kg) |
7000 |
11000 |
19000 |
