Human Machine Interface With 7" 800x480 TFT LCD/MT6070IH3
- beijing
You May Like
-
WEINVIEW 10inch HMI/ With USD Host and Ethernet Interface / MT8102IE /MT8103IE
-
Apem Joystick Analogue Joystick Inductive Sensing Joysticks
-
Delta Temperature Controller Modulized PID Controller DTC1000R
-
Delta Temperature Controller Modulized PID Controller DTC1001C DTC Series
-
Delta Temperature Controller DTB4896 PID Controller DTB4896RR
-
Osiprox Application Inductive Proximity Sensor With Analogue Output XS4-P18AB110
Product Details
| Products Status | Stock | Screen Size | Other, 7 | |
| Type | IntelliTouch | Interface Type | USB | |
| Resolution | 800 x 600 | Brand Name | Wenview | |
| Model Number | MT6070IH3 | Place of Origin | Taiwan, China |
Product Description
Human Machine Interface with 7" TFT LCD display MT6070IH3
Features
7" 800x480 TFT LCD
Fan-less cooling system
Built-in flash memory and RTC
NEMA4/IP65 compliant front panel
LED Back Light
One USB Host and one USB client port
Power Isolator inside
[Introduction]
MT6000 series is the new HMI generation of
Weintek. With the design concept of meeting
customers’ satisfaction while easy-to-Use attribute
as before, a MT6000 not only performs as a
Human Machine Interface but also plays as a role
of data exchange center. MT6000 series is the best
choice for your requirement tomorrow.
The MT6070iH is equipped with a USB 1.1 host, a
USB 2.0 high speed device.
Specifications
Construction: plastic molding housing

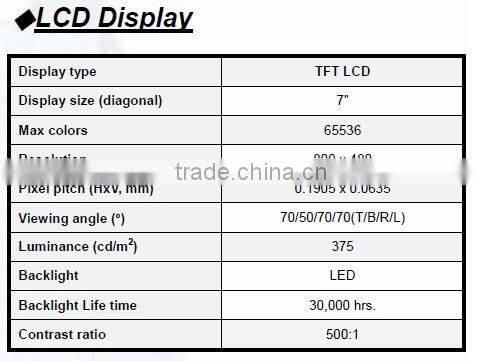

Display: 7" 65,536 color TFT LCD
CPU and core logic: 32Bit RISC 400MHz processor
DRAM: 64 MB DDR2 on board
Storage: 128 MB flash memory on board,

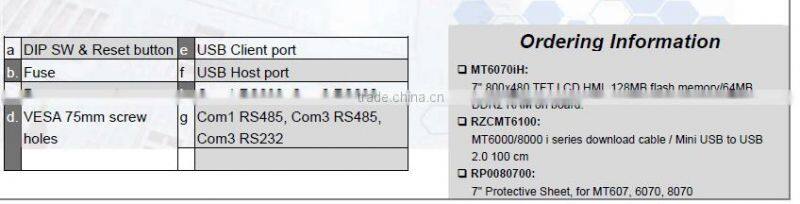

I/O: 3 serial ports:Com1: RS-232/RS-485 2w/4w,
Com2: RS-232,
Com3: RS-232/RS-485 2w
1 USB 1.1 host
1 USB 2.0 high speed device
RTC: Built-in
Power input: 24±20%VDC,250mA@24VDC

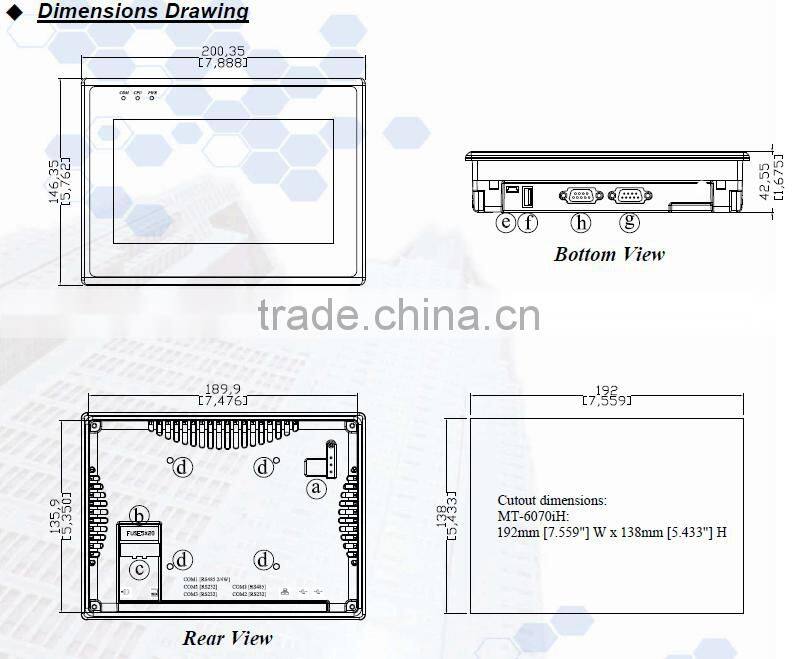

Dimension (W x H x D): 200 x 146 x 42.5mm
Weight: 0.85kg
Software: EB8000 V2.0.0 or later
