High Capacity Long Roll Four Roll Rubber Calendering Machine

High Capacity Long Roll Four Roll Rubber Calendering Machine thumbnail-1
High Capacity Long Roll Four Roll Rubber Calendering Machine thumbnail-2
High Capacity Long Roll Four Roll Rubber Calendering Machine thumbnail-3

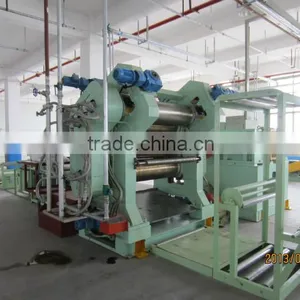

High Capacity Long Roll Four Roll Rubber Calendering Machine thumbnail-4
High Capacity Long Roll Four Roll Rubber Calendering Machine thumbnail-5
High Capacity Long Roll Four Roll Rubber Calendering Machine thumbnail-6
High Capacity Long Roll Four Roll Rubber Calendering Machine photo-1

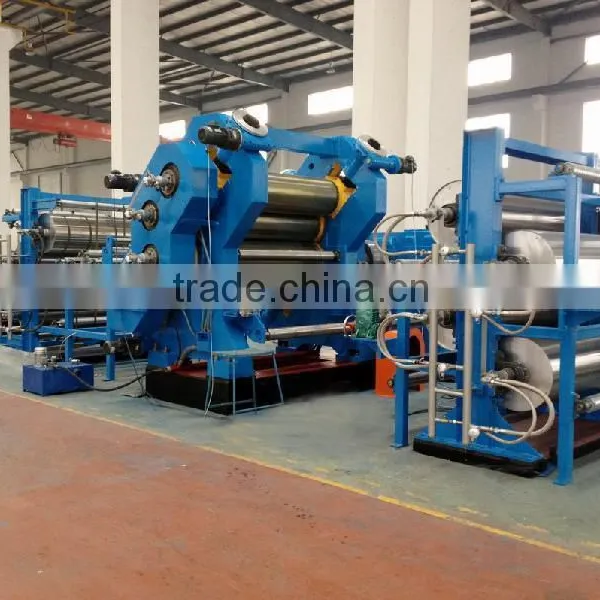

High Capacity Long Roll Four Roll Rubber Calendering Machine photo-2

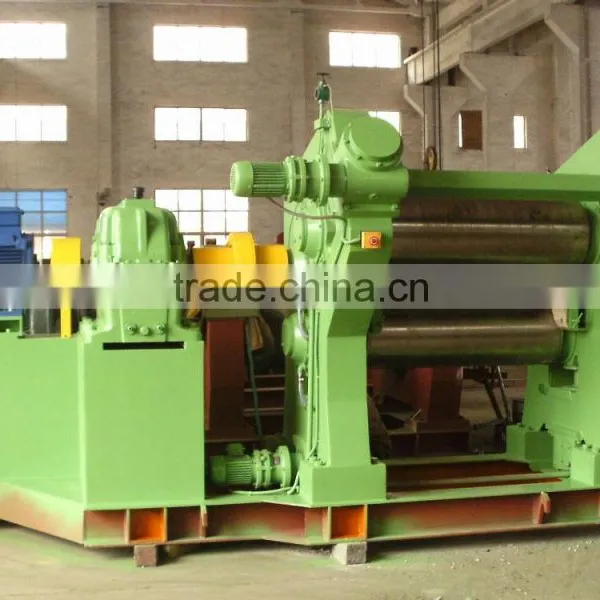

High Capacity Long Roll Four Roll Rubber Calendering Machine photo-3

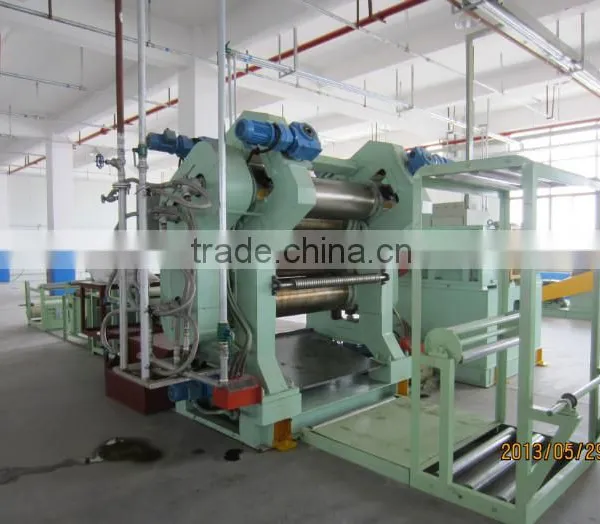

High Capacity Long Roll Four Roll Rubber Calendering Machine photo-4

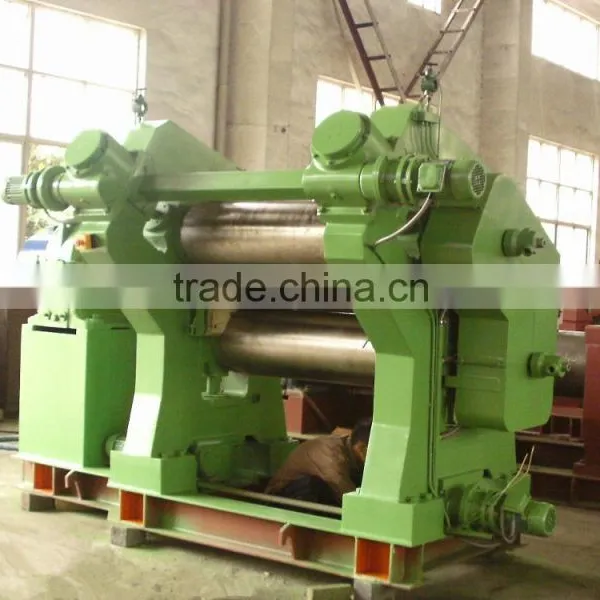

High Capacity Long Roll Four Roll Rubber Calendering Machine photo-5

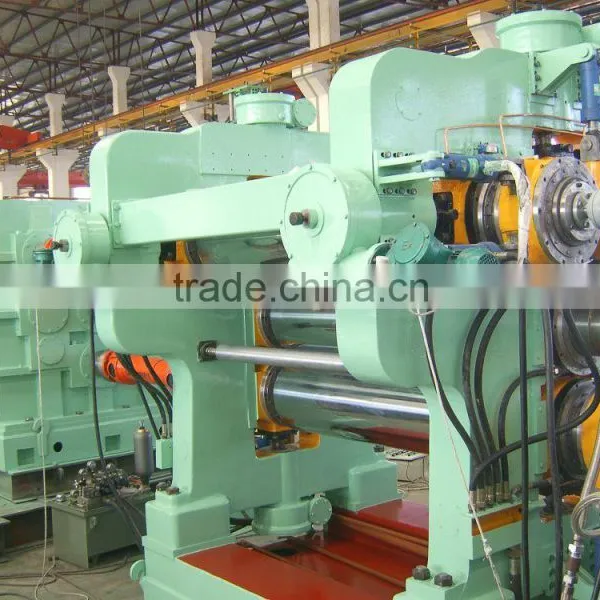

High Capacity Long Roll Four Roll Rubber Calendering Machine photo-6
US$ 7,500 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rubber Calender
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Qingdao Huatuo Mechanical Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rubber Calender
Place of Origin Shandong, China
Brand Name CN HUATUO
Model Number XY3I630
Voltage 380V or different
Power(W) 7.5KW
Dimension(L*W*H) Models varied
Weight 2.5tons
Certification CE and ISO
Warranty lifetime warranty
After-sales Service Provided Engineers available to service machinery overseas

High Capacity Long Roll Four Roll Rubber Calendering Machine



Advantage



1. The 3 or 4 rolls are separately driven by DC motors, which allow a wide rang of speed adjustment. The rotating speed ratio of the 4 rolls can be freely adjusted. The rolls are equipped with preloading device and bearings lubrication failure alarm device, as well as nip display and speed display.



2. The rolls are made of chilled cast iron with vanadium and titanium alloys. The roll face is hard and anti-wear. To heat up or cool down, the rolls are either circumferentially drilled or centrally bored so as to make temperature well proportioned on the roll surface.



3. The rolls are arranged in S form. Roll 1# and roll 4# have roll cambers that can eliminate bending impact on rolls during working process. Thus, it is possible to make products with same thickness along axial direction.



4. The transmission system adopts a hard facing gear reducer, which has a compacted structure with higher transmission efficiency, lower noise and longer service life.



 5. The machine is equipped with emergency device. When an emergent accident occurs, the calendar will be immediately stopped to open the roll space so as to protect the operator and equipment. PLC program controller is used in electric system.

Specifications:



Model

Item

XY-3I 630

XY3L630      XY-3F 630

 XY-3I 1120A XY-3F 1120A XY-3L 1120A XY-3I 1400 XY-3I 1500 XY-3I 1730 XY-3I 2130 XY-3I 2430
Roall dia mm 230 360 400 450 610 710 810
Roll working length mm 630 1120 1400 1500 1730 2130 2430
Middle-roll linear speed r/min 0.8-8 3-21.06 3-26.39 2.62-26.2 5.4-54 8-50 2-20
Adjusting nip range mm 0-7 0-10 0-10 0-6 0-20 0-20 0.5-25
Min.Calendering product thickness mm 0.2 0.2 0.2 0.2 0.15 0.15 0.5
Calendering product width kg 100-500 500-920 1200 1400 1500 1900 2150
Motor power KW 7.5 45 55 75 132 185 220
Qverall dimensions L  mm 3168 5550 6500 7420 7010 7650 9300
W  mm 890 1640 1500 2200 3950 4560 3150
H  mm 1830 2120 2440 2900 3730 4080 5200
About weight t ~2.6 ~11 ~22 ~26 ~52 ~67 ~94
