Specifications
Rubber banbury mixerback door feed way
chamber chromed,Corrosion-resistant

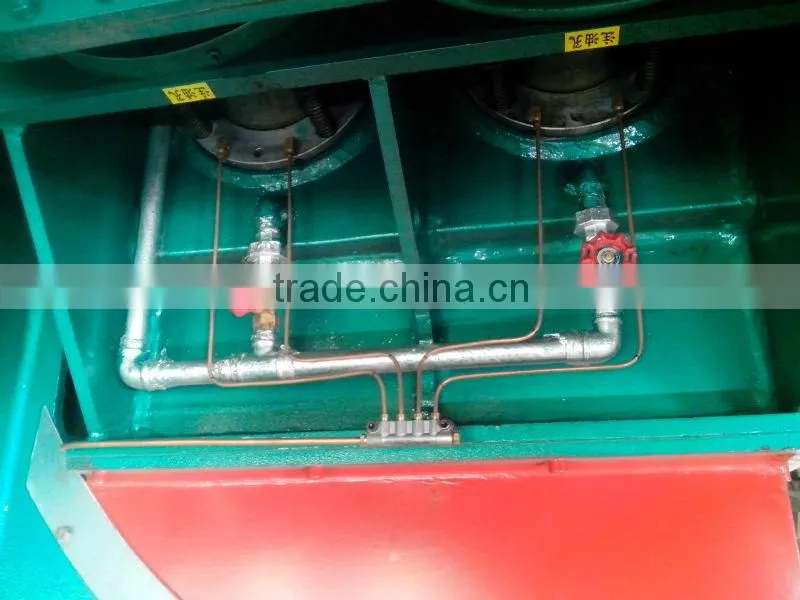

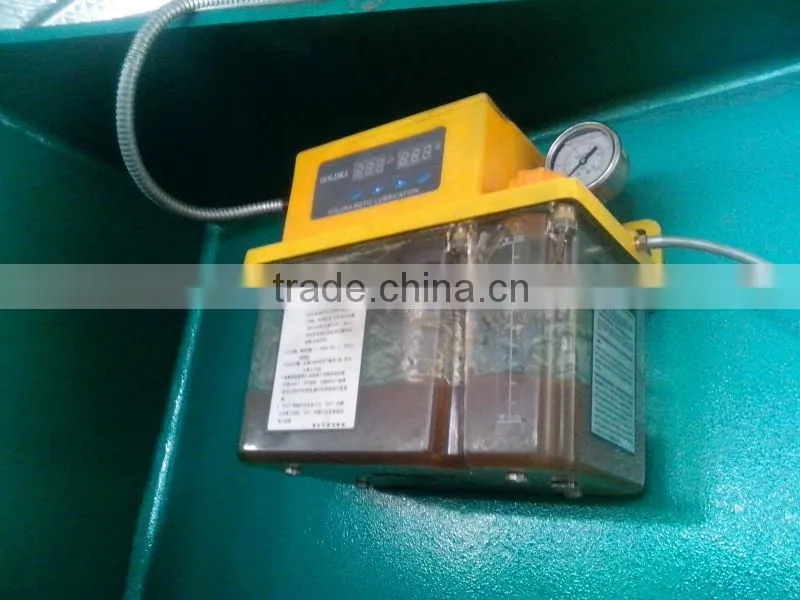

auto lubricate pump
steaming heating

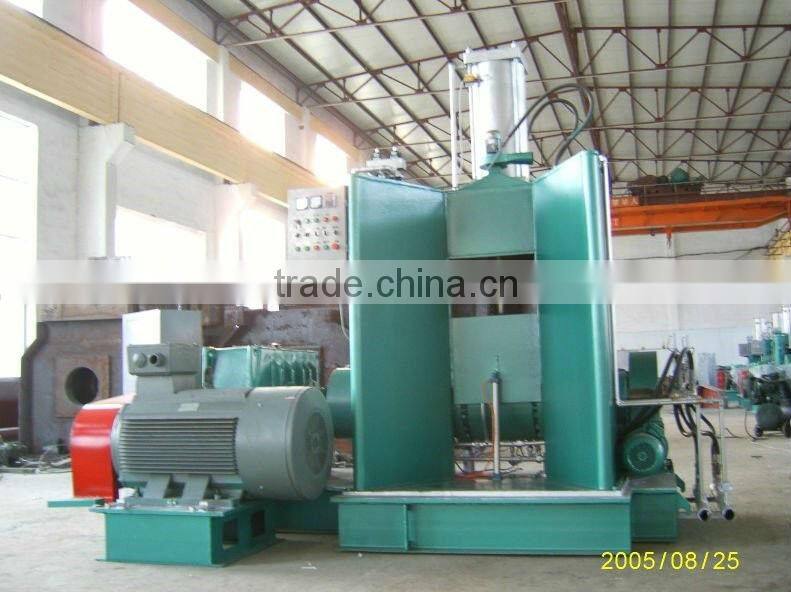

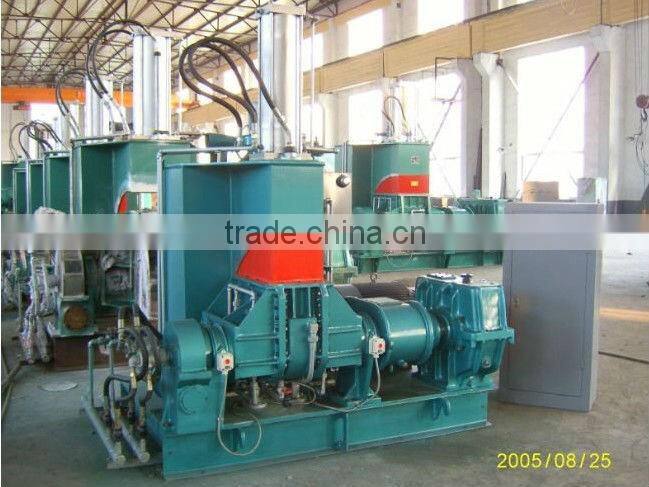

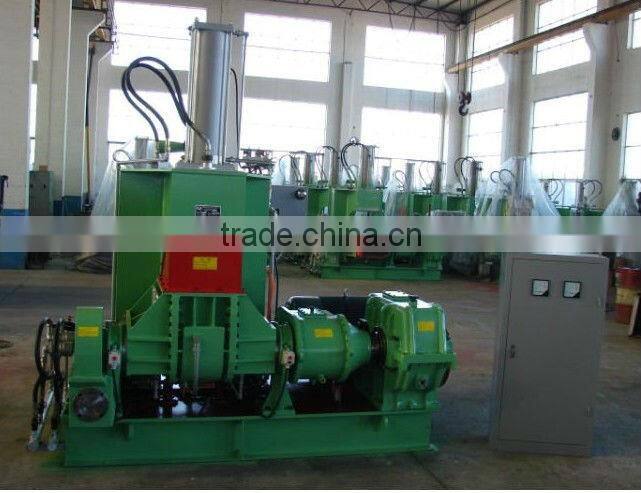

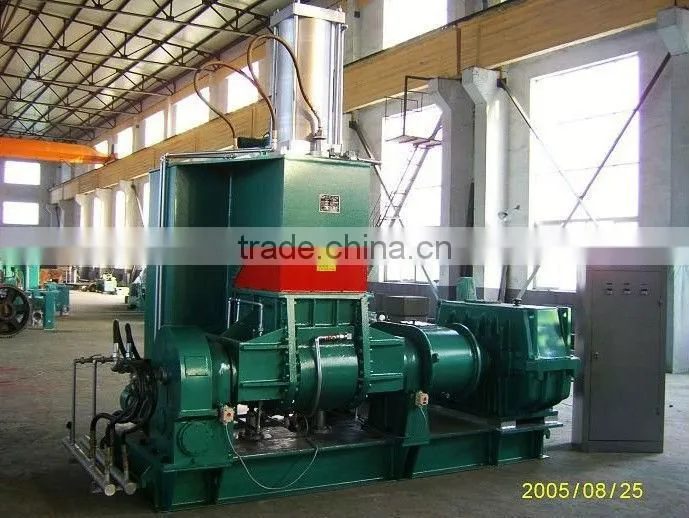

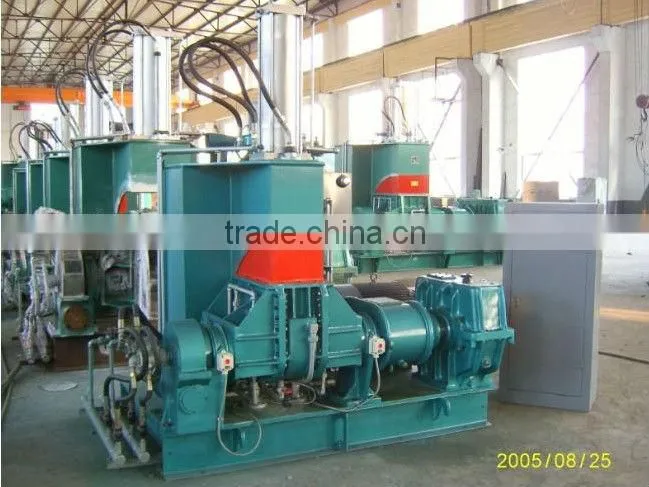

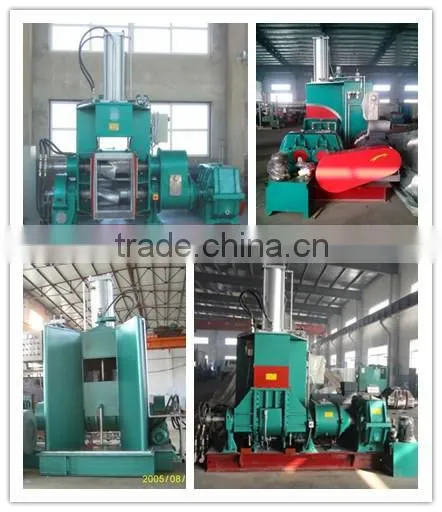

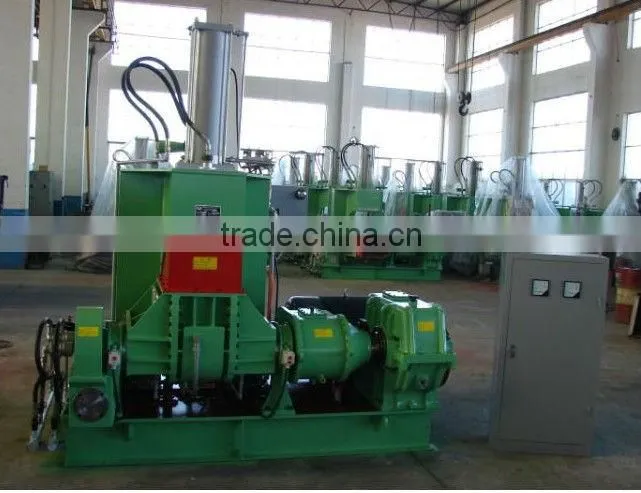

Banbury Rubber kneader
1.Main uses
This banbury rubber kneader is applicable for plasticating and mixing rubber and plastic,as well as applicable for mixing and keading sticky materials.
2.Superiority
2.1. With completely sealed condition, materials are mixed or plasticated under
Certain pressure , controllable temperature , which makes high production
Efficiency and obtains excellent stale quality
2.2. Spiral angle and over lapping length of blades of the rotors are in good
design and make the material to be dispersed uniformly.
2.3. Surface where is contacted with the materials are all plated with hard chromium and
Polished , which is corrosion-resistant and wear-resistant
2.4. Jacket construction is adopted in parts that surfaces contact with materials to achieve
Excellent water-cooling and steam heating effect and fit in with the needs of plastics
And rubber processing technology .
2.5 Programmable logic controller(PLC) is adopted in the electric -control system, which
System , which has reliable function and alarm function , and interlock
Safety-protection function and it is provided with serial interface of net.
2.6 CE standard
3.Structure
3.1 Mixing chamber
3.2 Thermal resistance

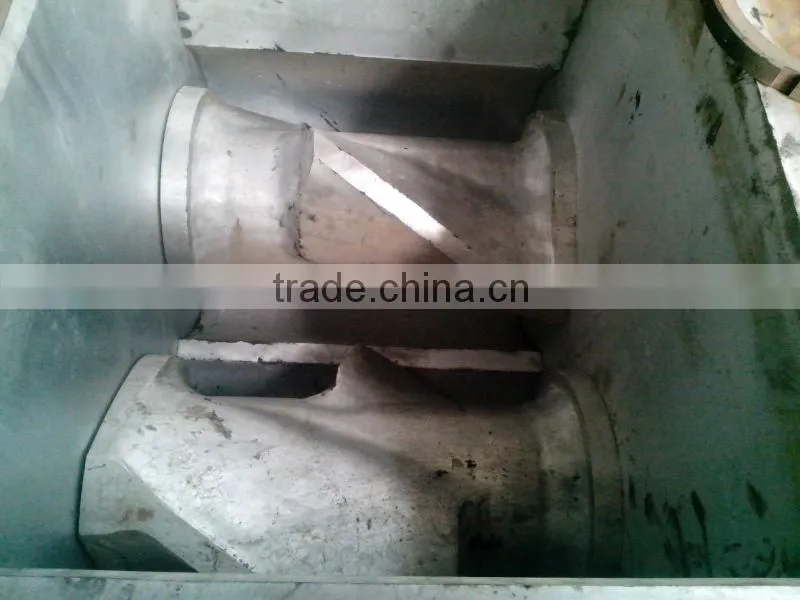

3.3 Rotor
3.4 heating and cooling system
3.5 Tilting mechanism
3.6 Dust-stop sealing device
3.7 Main driving system
3.8 Pneumatic system
3.9 Electric-control syetem
4.Parameters of internal mixer
Parameters |
VERSION |
|||
X(S)N-35/30 |
X(S)N-55/30 |
X(S)N-75/30 |
X(S)N-110 |
|
Net chamber volume |
75 |
125 |
175 |
250 |
Working volume |
35 |
55 |
75 |
110 |
Front/back rotor friction ratio |
1.22 |
1:1.22 |
1:1.22 |
1.22 |
Power |
55 |
75 |
110 |
160 |
Main motor rotation speed |
985 |
985 |
985 |
985 |
Turn angle |
140 |
140 |
140 |
140 |
Size |
3200*1900*2950 |
3750*1950*3050 |
3760*2143*30500 |
3930*3000*3660 |
Weight(kg) |
6500 |
7800 |
10000 |
16000 |
