Crydom PCB Mount SIP SSR PF240D25
- Beijing
You May Like
-
Crouzet solid state relay84137870 DC SSR model 84134320
-
Crydom solid state relayPCB Mount CNO24D24 5mm Mini SIP SSR model CN024D24
-
Meanwell power supply 50W Single Output Switching Power Supply NES-50-5
-
panel mount DC60S7/ control voltage 3.5-32VDC/ load current 7A@ 60 VDC
-
PCB mount/ SSR/Ratings to 5A @ 660 VAC/MCXE380D5R
-
PCB mount/solid state relay /Ratings to 25A (forced air) @ 480 VAC/ PF240D25/PF380D25
Product Details
| Place of Origin | United States | Brand Name | crydom | |
| Model Number | PF240D25 |
Product Description
Specifications
Crydom solid state relay PF240D25 PFE240D25 SIP SSRRatings to 25A (forced air) @ 480 VAC
SCR output for heavy industrial load
Crydom solid state relay PF240D25 PFE240D25 SIP SSR
Ratings to 25A (forced air) @ 480 VAC
SCR output for heavy industrial loads
AC or DC control
Zero-crossing (resistive loads) or random-fire (inductive loads)
output

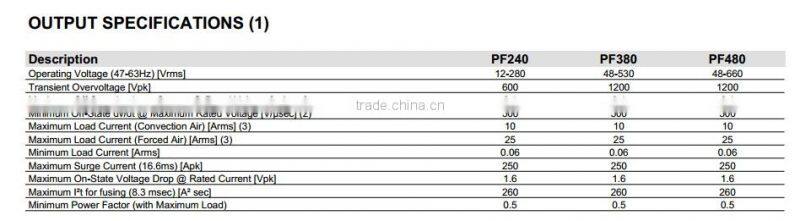

Maximum Off-State Leakage Current @ Rated Voltage [mArms] 0.1
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/μsec] (2) 500
Maximum Load Current (Convection Air) [Arms] (3) 10
Maximum Load Current (Forced Air) [Arms] (3) 25
Minimum Load Current [Arms] 0.06
Maximum Surge Current (16.6ms) [Apk] 250
Maximum On-State Voltage Drop @ Rated Current [Vpk] 1.6
Maximum I2t for fusing (8.3 msec) [A2 sec] 260
Minimum Power Factor (with Maximum Load) 0.5

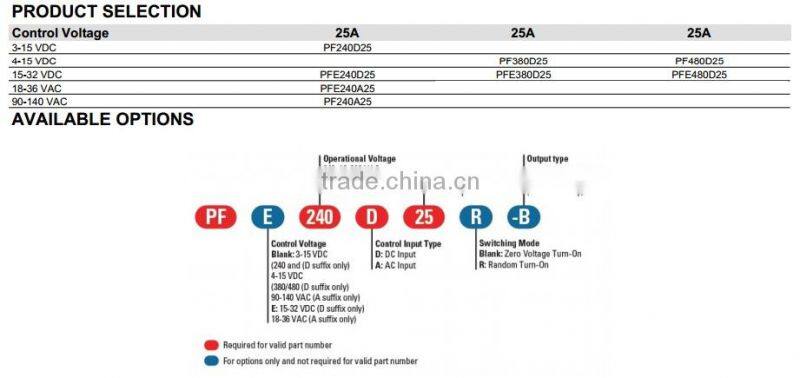

Crydom SSR models:
PF240D25; 3-15 VDC; 25 Amps; 12-280 VAC;
PF240D25-B; 4-15 VDC; 25 Amps; 12-280 VAC;
PF240D25-MS21; 3-15 VDC; 10 Amps; 24-280 VAC; DRA1-SPF240D25
PF240D25R; 3-15 VDC; 25 Amps; 12-280 VAC;
DRA1-SPF240D25; 3-15 VDC; 10 Amps; 12-280 VAC;
DRA1-SPF240D25R; 3-15 VDC; 10 Amps; 12-280 VAC;
SPF240D25; 3-15 VDC; 25 Amps; 12-280 VAC;
SPF240D25R; 3-15 VDC; 25 Amps; 12-280 VAC
PFE240D25;15-32 VDC;25 Amps;12-280 VAC
PFE240D25-MS31XS;15-32 VDC;6 Amps;12-280 VAC
PFE240D25R;15-32 VDC;25 Amps; 12-280 VAC
PFE240D25R-MS31XS; 15-32 VDC; 6 Amps; 12-280 VAC
DRA1-SPFE240D25; 15-32 VDC; 10 Amps; 12-280 VAC
DRA1-SPFE240D25R; 15-32 VDC; 10 Amps; 12-280 VAC
SPFE240D25; 15-32 VDC; 25 Amps; 12-280 VAC
SPFE240D25R; 15-32 VDC; 25 Amps; 12-280 VAC
