Specifications

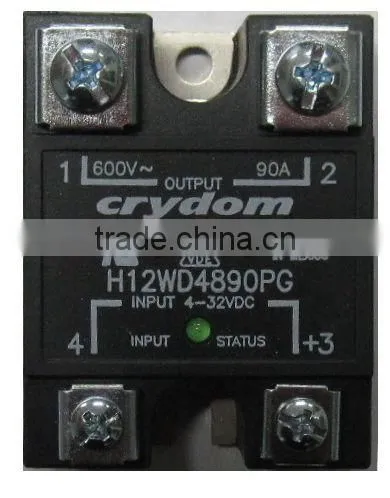

Crydom relay H12WD4890PG UL approved SSR SOLID STATE RELAY panel mount ssrRating 90A @ 48-660 V AC
SCR output for heavy
Crydom relay H12WD4890PG UL approved SSR SOLID STATE RELAY panel mount ssr
• Rating 50A @ 48-660 V AC
• SCR output for heavy industrial loads
• DC control
• Zero-crossing (resistive loads) or random-fire (inductive loads) output
Control Voltage 4 → 32Vdc
Load Voltage 48 → 660Vac
Maximum Switching Current 25A
Mounting Type Surface
Off State Leakage Current 1mA
Release Voltage 1V(dc)
Series H12
Surge Current Peak 250A
Terminal Type Screw; Saddle Clamp
Width 45.7mm
Max On-state Voltage Drop At Rated A 1.6V
Maximum Turn Off Time 10ms
Maximum Turn On Time 10ms
Minimum Load Current 150mA
Depth 58.4mm
Height 22.9mm
Input Current 15mA
Isolation Voltage 4000Vac

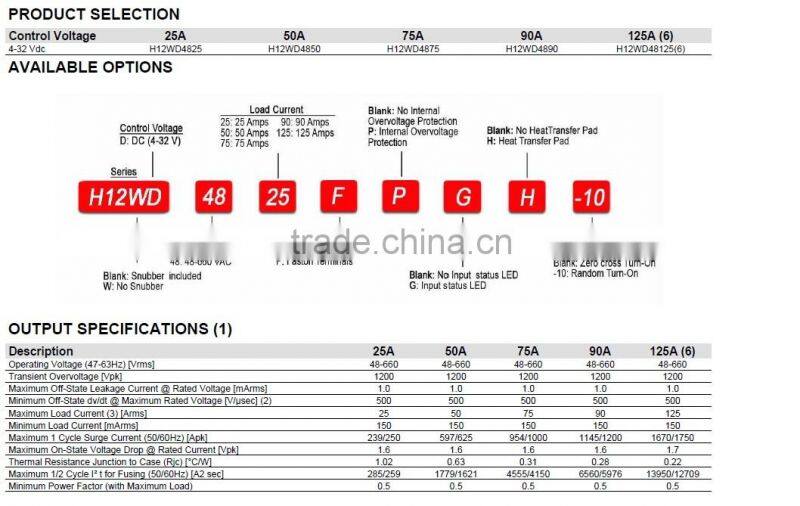

H12WD48125, 4-32 VDC, 125 Amps, 48-660 VAC
H12WD48125-10, 4-32 VDC, 125 Amps, 48-660 VAC
H12WD4825, 4-32 VDC, 25 Amps, 48-660 VAC
H12WD4825-10, 4-32 VDC, 25 Amps, 48-660 VAC
H12WD4850, 4-32 VDC, 50 Amps, 48-660 VAC
H12WD4850-10, 4-32 VDC, 50 Amps, 48-660 VAC
H12WD4875, 4-32 VDC, 75 Amps, 48-660 VAC
H12WD4875-10, 4-32 VDC, 75 Amps, 48-660 VAC
H12WD4890, 4-32 VDC, 90 Amps, 48-660 VAC
H12WD4890-10, 4-32 VDC, 90 Amps, 48-660 VAC
H12WD4825PG, H12WD4850PG, H12WD4890PG,
H12WD4825P, H12WD4850P,
H12WD4825, H12WD4850,
H12WD485OPG, H12WD489OPG,
H12WD485OP,H12WD485O
