AUTONICS Temperature Controller TK4S-14RN PID Temperature Controller TK4S

AUTONICS temperature controller TK4S-14RN PID temperature controller TK4S
Autonics distributor in China
Relay output.
Standard control .
Convenient parameter setting (by DAQMaster)
- Parameter mask
Hides unnecessary and seldom used parameters
- User parameter group
Groups usually used parameters to set parameters fast and conveniently
Line-up Alarm output3(heating&cooling OUT2
Relay output model), transmission output 2
(transmission output model)
* Super high-speed sampling cycle (10 times faster compared to existing models)
: 50ms sampling cycle and ±0.3% display-accuracy.
* Improved visibility with wide display part and high luminance LED
* High performance controlling with heating/cooling control and automatic/manual control modes
* PC parameter setting via USB cable and RS485 connection (Modbus RTU)
: DAQMaster - free PC loader program supported
: Dedicated USB cable - sold separately (SCM-US)
* SSR output/Current output selectable
* SSRP output (standard/phase/cycle/control selectable

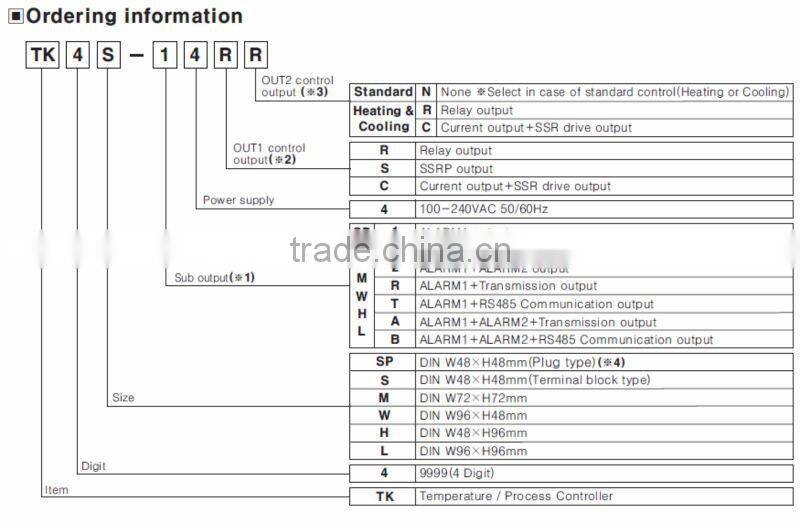

TK4S, TK4M, TK4W, TK4H, TK4L, TK4SP, TK4SP-14CC
TK4SP-14RN, TK4SP-14SN, TK4SP-14CN, TK4SP-14RR
TK4SP-14SR, TK4SP-14CR, TK4SP-14RC, TK4SP-14SC
TK4S-14RN, TK4M-14RN, TK4W-14RN, TK4H-14RN, TK4L-14RN,
TK4S-14SN, TK4M-14SN, TK4W-14SN, TK4H-14SN, TK4L-14SN,
TK4S-14CN, TK4M-14CN, TK4W-14CN, TK4H-14CN, TK4L-14CN,
TK4S-14RR, TK4M-14RR, TK4W-14RR, TK4H-14RR, TK4L-14RR,
TK4S-14SR, TK4M-14SR, TK4W-14SR, TK4H-14SR, TK4L-14SR,
TK4S-14CR, TK4M-14CR, TK4W-14CR, TK4H-14CR, TK4L-14CR,
TK4S-14RC, TK4M-14RC, TK4W-14RC, TK4H-14RC, TK4L-14RC,
TK4S-14SC, TK4M-14SC, TK4W-14SC, TK4H-14SC, TK4L-14SC,
TK4S-14CC, TK4M-14CC, TK4W-14CC, TK4H-14CC, TK4L-14CC,
TK4S-24RN, TK4M-24RN, TK4W-24RN, TK4H-24RN, TK4L-24RN,
TK4S-24SN, TK4M-24SN, TK4W-24SN, TK4H-24SN, TK4L-24SN,
TK4S-24CN, TK4M-24CN, TK4W-24CN, TK4H-24CN, TK4L-24CN,
TK4S-24RR, TK4M-24RR, TK4W-24RR, TK4H-24RR, TK4L-24RR,
TK4S-24SR, TK4M-24SR, TK4W-24SR, TK4H-24SR, TK4L-24SR,
TK4S-24CR, TK4M-24CR, TK4W-24CR, TK4H-24CR, TK4L-24CR,
TK4S-24RC, TK4M-24RC, TK4W-24RC, TK4H-24RC, TK4L-24RC,
TK4S-24SC, TK4M-24SC, TK4W-24SC, TK4H-24SC, TK4L-24SC,
TK4S-24CC, TK4M-24CC, TK4W-24CC, TK4H-24CC, TK4L-24CC,
TK4S-R4RN, TK4M-R4RN, TK4W-R4RN, TK4H-R4RN, TK4L-R4RN,
TK4S-R4SN, TK4M-R4SN, TK4W-R4SN, TK4H-R4SN, TK4L-R4SN,
TK4S-R4CN, TK4M-R4CN, TK4W-R4CN, TK4H-R4CN, TK4L-R4CN,
TK4S-R4RR, TK4M-R4RR, TK4W-R4RR, TK4H-R4RR, TK4L-R4RR,
TK4S-R4SR, TK4M-R4SR, TK4W-R4SR, TK4H-R4SR, TK4L-R4SR,
TK4S-R4CR, TK4M-R4CR, TK4W-R4CR, TK4H-R4CR, TK4L-R4CR,
TK4S-R4RC, TK4M-R4RC, TK4W-R4RC, TK4H-R4RC, TK4L-R4RC,
TK4S-R4SC, TK4M-R4SC, TK4W-R4SC, TK4H-R4SC, TK4L-R4SC,
TK4S-R4CC, TK4M-R4CC, TK4W-R4CC, TK4H-R4CC, TK4L-R4CC,
TK4S-T4RN, TK4M-T4RN, TK4W-T4RN, TK4H-T4RN, TK4L-T4RN,
TK4S-T4SN, TK4M-T4SN, TK4W-T4SN, TK4H-T4SN, TK4L-T4SN,
TK4S-T4CN, TK4M-T4CN, TK4W-T4CN, TK4H-T4CN, TK4L-T4CN,
TK4S-T4RR, TK4M-T4RR, TK4W-T4RR, TK4H-T4RR, TK4L-T4RR,
TK4S-T4SR, TK4M-T4SR, TK4W-T4SR, TK4H-T4SR, TK4L-T4SR,
TK4S-T4CR, TK4M-T4CR, TK4W-T4CR, TK4H-T4CR, TK4L-T4CR,
TK4S-T4RC, TK4M-T4RC, TK4W-T4RC, TK4H-T4RC, TK4L-T4RC,
TK4S-T4SC, TK4M-T4SC, TK4W-T4SC, TK4H-T4SC, TK4L-T4SC,
TK4S-T4CC, TK4M-T4CC, TK4W-T4CC, TK4H-T4CC, TK4L-T4CC,
