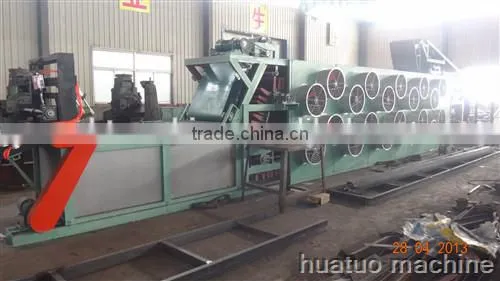

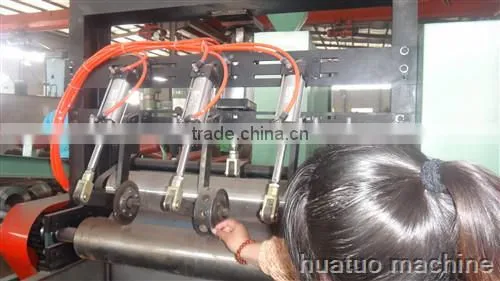

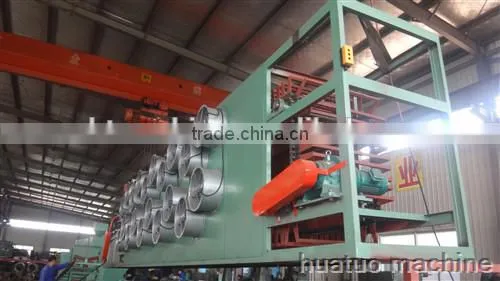

High Technology Suspension Type Rubber Sheet Batch-off Cooling Machine

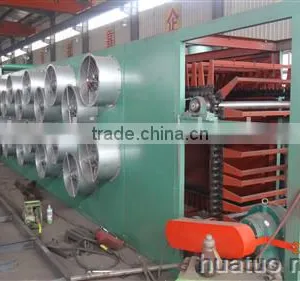

High Technology Suspension Type Rubber Sheet Batch-off Cooling Machine photo-1

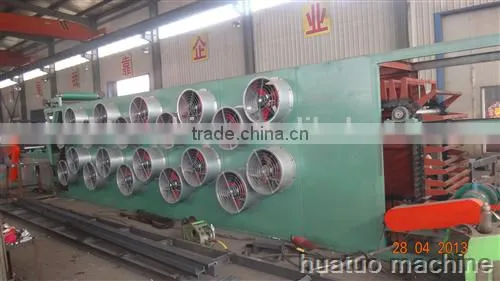

High Technology Suspension Type Rubber Sheet Batch-off Cooling Machine photo-2

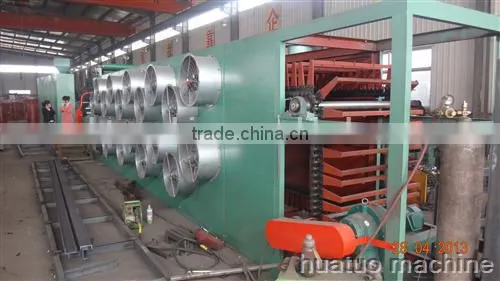

High Technology Suspension Type Rubber Sheet Batch-off Cooling Machine photo-3

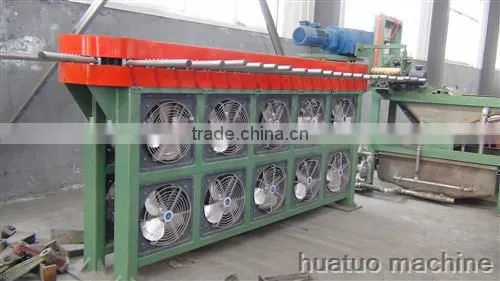

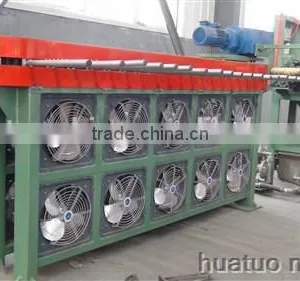

High Technology Suspension Type Rubber Sheet Batch-off Cooling Machine photo-4

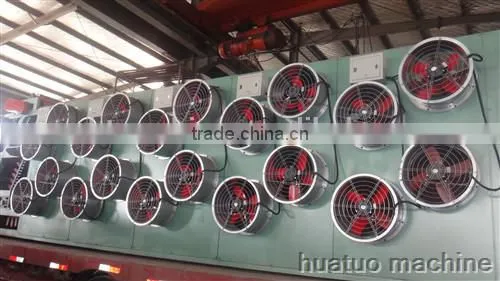

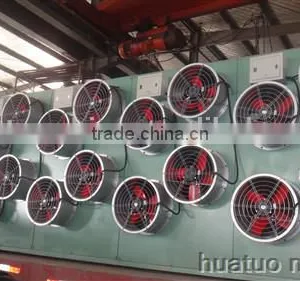

High Technology Suspension Type Rubber Sheet Batch-off Cooling Machine photo-5

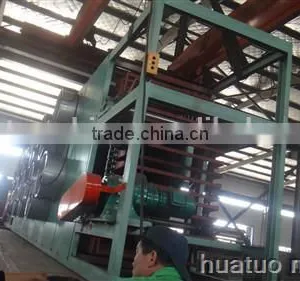

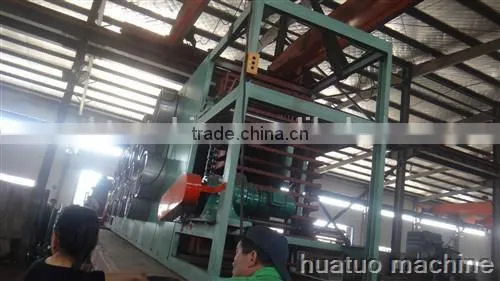

High Technology Suspension Type Rubber Sheet Batch-off Cooling Machine photo-6
US$ 6,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HuaTuo
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name HuaTuo
Model Number XPG-800
Voltage 380V , or according to customer
Power(W) 90kw
Dimension(L*W*H) 8000x1000x1500
Weight 20 tons
Certification CE,SGS ISO9001:2008, CE ,SGS ,ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

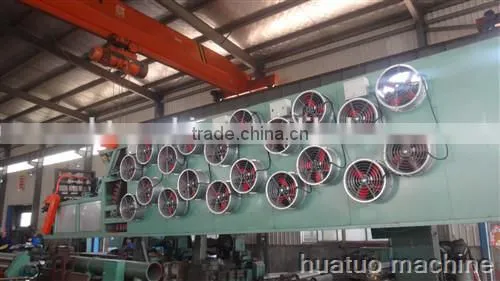

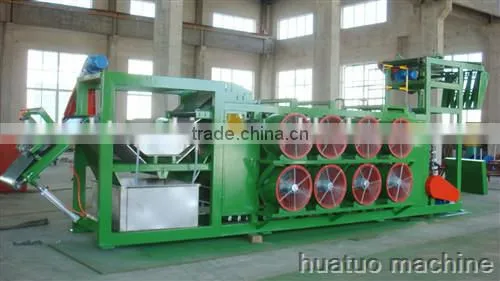

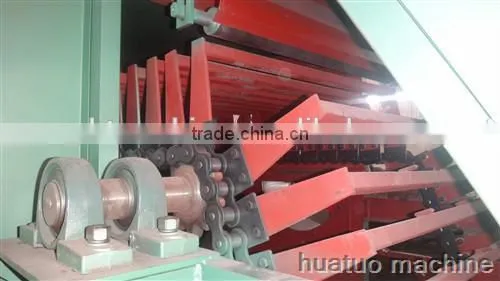

High Technology suspension type Rubber Sheet batch-off cooling machine







 Usage

    The operations of separate applying, air cooling, drying, cutting and wigwag stacking are performed in a single machine,

forming continuous production at high efficiency.



 Advantage

1. Rubber slabs are soaked thus applied with the separant so that the coating is even without pollution to the environment.

2.  A long tim is set for air cooling of rubber slabs so that the cooling effect is good.

3.  Slabs can be cut to length during operation and the length is adjustable.

4.  Use of PLC control and the frequency-control speed regulatioin makes it possible to control the whole process.



Technical parameters

Type

XPG-600

XPG-800

XPG-900

Max. rubber sheet width

600mm

800mm

900mm

The thickness of the rubber sheet

4-10mm

4-10mm

6-12mm

Rubber sheting temperature over room temperature after cooling

10

10

5

Conveying linear speed

3-24m/min

3-35m/min

4-40m/min

Swing sheet length

1-1.3m

1-1.3m

1-1.3m

Hanging height of the sheet hanging bar

1000-1500m

1000-1500m

1400m

Number of cooling fans

12 sets

20-32 sets

32-44 sets

Total power

16kw

25-34kw

34-50kw

Weight

11tons

22tons

34tons

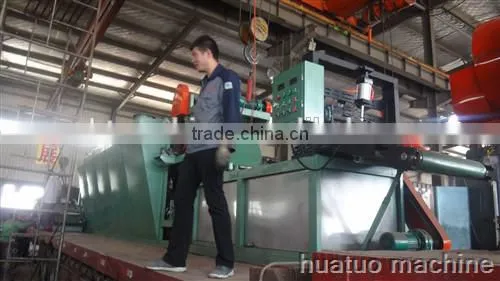

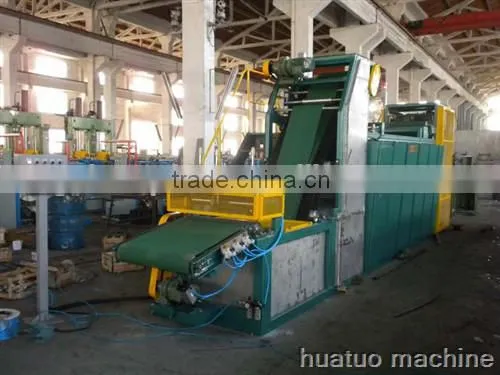

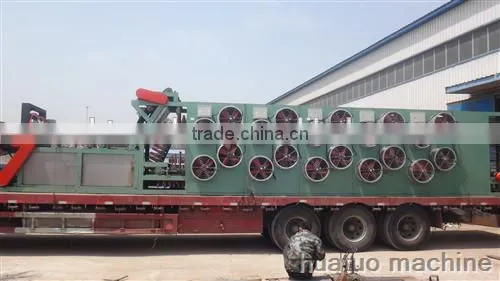

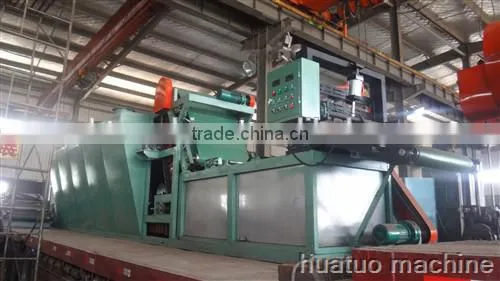

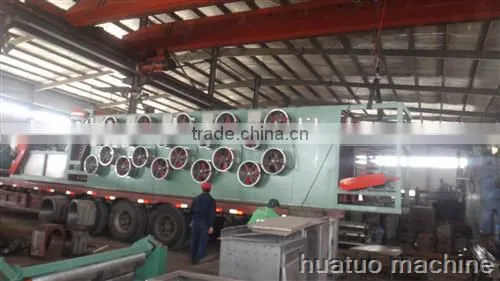

High Technology suspension type Rubber Sheet batch-off cooling machineHigh Technology suspension type Rubber Sheet batch-off cooling machineHigh Technology suspension type Rubber Sheet batch-off cooling machineHigh Technology suspension type Rubber Sheet batch-off cooling machineHigh Technology suspension type Rubber Sheet batch-off cooling machineHigh Technology suspension type Rubber Sheet batch-off cooling machineHigh Technology suspension type Rubber Sheet batch-off cooling machineHigh Technology suspension type Rubber Sheet batch-off cooling machineHigh Technology suspension type Rubber Sheet batch-off cooling machineHigh Technology suspension type Rubber Sheet batch-off cooling machineHigh Technology suspension type Rubber Sheet batch-off cooling machineHigh Technology suspension type Rubber Sheet batch-off cooling machine
