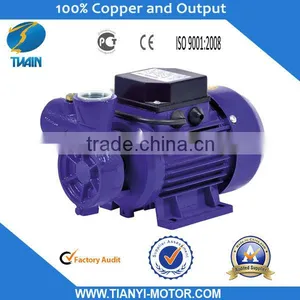

DB-125B 1.3HP Electric Motor Water Pump

Specifications

DB-125B 1.3HP Electric Motor Water Pump
1) 1 year warranty
2) CE,ISO,SGS etc.
3) Free spare parts
4) Fast delivery

DB-125B 1.3HP Electric Motor Water Pump



Application

The pump is with peripheral impeller containing numerous radial blades in its edge. The particular shape of the blades rapidly transfers radial re-circulation motion to the fluid on entry to the pump, between the impeller blades and the double channel, machined on each side of the pump body.  They have various appearances and motor shells to the different operating requirements. They are reliable, economical and simple to use.



Operating conditions
Liquid temperature up to 60
Ambient temper up to 40
Total suction lift to 9m
Continuous duty



Construct

Pump
Pump body: Cast Iron
Impeller: Brass
Mechanical seal: Stainless steel/Carbon-ceramic



Motor
Motor : Closed, externally ventilated
Insulation class: B and F
Protection class: IP44 or IP54
Shaft: 45# Steel / Stainless steel
Thermal protector (if required)
Cooling:Externally ventilation



Main Market

Southeast Asia, Middle East, Africa, Europe, America, etc.



Our Enterprise Spirit

The Market is the Core and The Quality is the Life.
We welcome worldwide merchants to join us for common development !



FAQ

Q: What is your MOQ of this item?

A: Our MOQ is a full 20ft container, but for the first time cooperation, we accept samples order to check quality.

Q: Is it all right to make customers’own brand name?

A: Sure, we can be your OEM manufacturer with your authorization of brand.

Q: What are your payment terms?

A: 30% T/T deposit, 70% balance before shipment or L/C at sight.

Q: How long is your warranty?

A: One year after receive B/L.

Q: What is the delivery time?

A: 25-30 days after receiving your L/C or T/T deposit.
