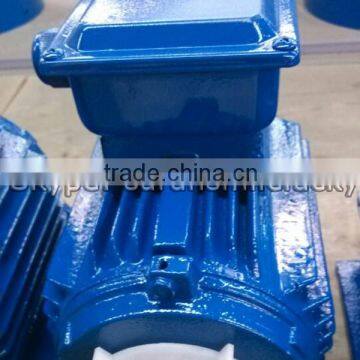

YCL Series Single-phase the Small Electric Motors

Specifications

YCL Series Single-phase the small electric motors

DESPRITION

1) The YCL series motor is similar to YC series in appearance. Compared with YC series motor of same output the thermal rise and reduced by 8.47K and 1.81A respectively, in the average, the efficiency go up by 4.21 per cent, max-torque increase by 0.064, min torque by 0.408, starting torque by 0.348 and power factor by 0.16.

2)YCL series single-phase heavy-duty capacitor start asynchronous motor is suitable for driving small lathe and water pump, especially good for families and workshops where only single-phase power is available. This series motors are designed with advanced technique and made of fine materials. It also has many other good characteristics such as nice function. lower noise, lower temperature-rise and starting current, higher starting torque, reliable operation, easy maintenance and nice appearance. The YCL series motor is produced in conformity with IEC standards.

OPERATING CONDITIONS

1. Ambient temperature: -15 to 40
2. Altitude:not exceed 1000m

3. Rated voltage:220V
4. Rated Frequency: 50HZ, 60HZ

5. Protection class :IP44/IP54

6. Insulation class :B/F

7. Cooling method :ICO141

8. Duty: S1(continuous)

BENEFITS

1) Water dust and vermin resistant

2) 100% Copper wire

3) Corrosion resistant

4) Reliable in country, city or factory environment

5) Quality First, Service First

6) Very low power consumption

7) Superior life

OUR ENTERPRISE SPIRIT
The Market is the Core and The Quality is the Life.We welcome worldwide merchants to join us for common development!

MAIN MARKET

Southeast Asia, Middle East, Africa, Europe, America, etc.

FAQ

1. Q: What is your MOQ of this item?

A: Our MOQ is a full 20ft container, but for the first time cooperation, we accept samples order to check quality.

2. Q: Is it all right to make customers’own brand name?

A: Sure, we can be your OEM manufacturer with your authorization of brand.

3. Q: What are your payment terms?

A: 30% T/T deposit, 70% balance before shipment or L/C at sight.

4. Q: How long is your warranty?

A: One year after receive B/L.

5. Q: What is the delivery time?

A: 25-30 days after receiving your L/C or T/T deposit.

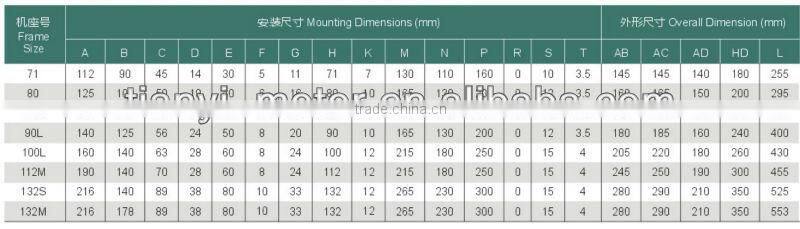

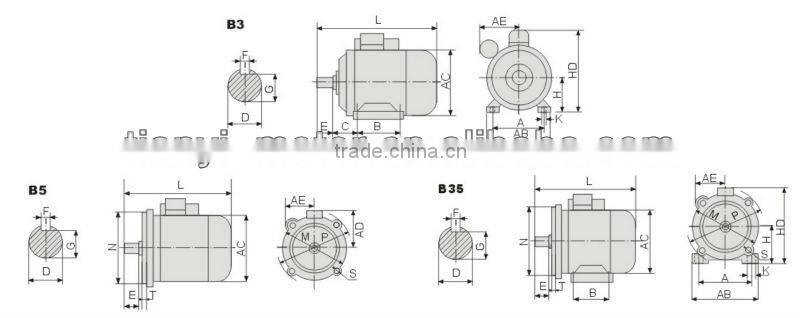

INSTALLATION SIZE AND OVERALL DIMENSION
