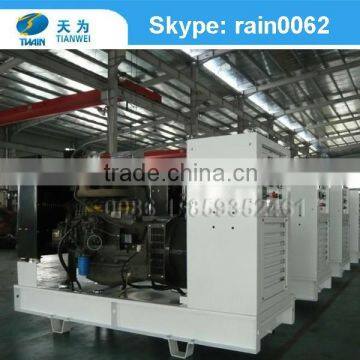

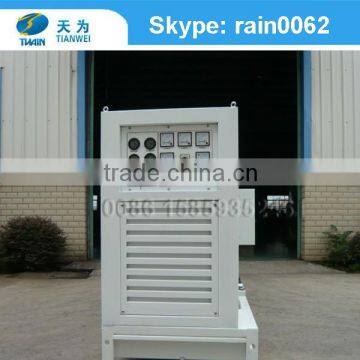

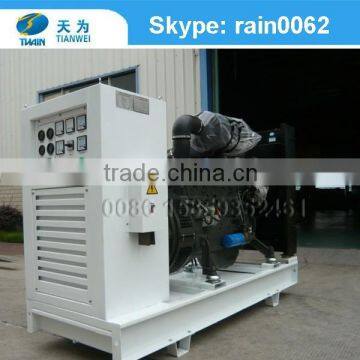

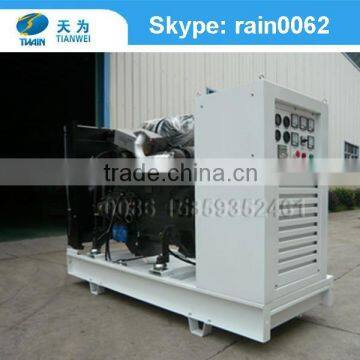

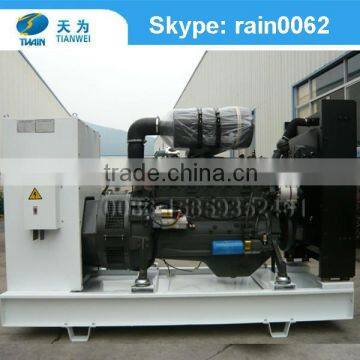

Deutz Diesel Generating Power Water Cooling Generators 80KVA
US$ 2,500 - 16,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Twain
Model Number:
Deutz
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Daewoo Diesel Generators Set With Stamford Generator DoosanUS$ 2,500 - 16,000MOQ: 1 Piece -
YuChai Power Generator With Copy Stamford Alternator 120kwUS$ 2,500 - 16,000MOQ: 1 Piece
-
VOLVO Genset for Diesel Engine Electric Power Generators 150kvaUS$ 2,500 - 16,000MOQ: 1 Piece
-
Generator With Diesel Engine 80KW Gen-set for IndustrialUS$ 2,500 - 16,000MOQ: 1 Piece
-
ShangChai Generator Big Power 500kva Generating Electric PowerUS$ 2,500 - 16,000MOQ: 1 Piece
Place of Origin
Fujian, China
Brand Name
Twain
Model Number
Deutz
Output Type
AC Three Phase
Speed
1500rpm/1800rpm
Frequency
50Hz/60Hz
Rated Power
10KW(12.5KVA) to 1600KW(2000KVA)
Rated Voltage
110V/220V, 220V/380V, 230V/400V
Rated Current
16A to 3036A
Deutz Diesel generating power water cooling generators 80KVA
Deutz diesel generator set
can be coupled with A.C.synchronous brushless alternator such as Stamford, Leroy Somer,Marathon etc.
| Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNRD18A | 12 | 15 | 14 | 18 | F2L912 | ≤238 | 2 | 1.88 | 100*120 |
| GNRD37A | 28 | 35 | 30 | 37 | F3L912 | ≤232 | 3 | 2.82 | 100*120 |
| GNRD41A | 31 | 39 | 33 | 41 | F3L913 | ≤228 | 3 | 3 | 100*125 |
| GNRD52A | 38 | 47 | 42 | 52 | F4L912T | ≤228 | 4 | 3.77 | 102*125 |
| GNRD55A | 40 | 50 | 44 | 55 | F4L913 | ≤228 | 4 | 4.08 | 100*120 |
| GNRD65A | 48 | 60 | 52 | 65 | F4L912T | ≤228 | 4 | 4.08 | 102*125 |
| GNRD75DA | 50 | 62 | 60 | 75 | BF4L912 | ≤221 | 4 | 4.08 | 102*125 |
| GNRD77A | 55 | 69 | 62 | 77 | F6L912 | ≤228 | 6 | 5.65 | 100*120 |
| GNRD85A | 64 | 80 | 68 | 85 | F6L913 | ≤228 | 6 | 6.12 | 102*125 |
| GNRD96A | 72 | 90 | 77 | 96 | F6L912T | ≤228 | 6 | 6.12 | 100*120 |
| GNRD102A | 78 | 97 | 82 | 102 | BF6L913 | ≤228 | 6 | 6.12 | 102*125 |
| GNRD144A | 105 | 131 | 115 | 144 | BF6L913C | ≤228 | 6 | 6.12 | 102*125 |
| GNRD50 | 37 | 46 | 40 | 50 | D226B-3D | ≤215 | 3 | 3 | 105*120 |
| GNRD70 | 51 | 64 | 56 | 70 | TD226B-3D | ≤215 | 3 | 3 | 105*120 |
| GNRD95 | 69 | 86 | 76 | 95 | TD226B-4D | ≤215 | 4 | 4 | 105*120 |
| GNRD150 | 100 | 125 | 120 | 150 | TD226B-6D | ≤215 | 6 | 6 | 105*120 |
| GNRD185 | 135 | 169 | 148 | 185 | TBD226B6D | ≤215 | 6 | 6 | 105*120 |
| GNRD200 | 150 | 188 | 165 | 200 | TBD234V6 | ≤210 | V6 | 10.8 | 128*140 |
Engine
1. Genuine Deutz diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon,
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon,
2. Brushless, 4 poles, rotation magnet
3. IP21-23 enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤ ± 1% THF < 5%, low radio interference
3. IP21-23 enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤ ± 1% THF < 5%, low radio interference
Control System choice:
1. Common panle: With Unit voltage, tri-phase load current and frequency display. Water temperature and oil pressure display. Fuel level and fuel temperature display, with self-protection
2. Digital, Intelligentized panel. From manual start module, AFM module, to micro-computerize AMF/ATS and Automatic Parallel module, for meeting your different demand.
1. Common panle: With Unit voltage, tri-phase load current and frequency display. Water temperature and oil pressure display. Fuel level and fuel temperature display, with self-protection
2. Digital, Intelligentized panel. From manual start module, AFM module, to micro-computerize AMF/ATS and Automatic Parallel module, for meeting your different demand.
Soundproof canopy:
1)With steel sheet
2)Stainless steel locks
3)Control panel viewing window for monitoring the status of the generator set
4)Good ventilation system and anti-heat radiation construction
5)Effective anti-vibration devices to ensure the generator set run steadily
6)Super silent materials inside to ensure the noise lower than 70 dB 7 meters away
7)Emergency stop button mounted outside
8)Side lockable door easy for maintenance and installation
9)Lube oil and cooling water drains piped to exterior of the canopy
1)With steel sheet
2)Stainless steel locks
3)Control panel viewing window for monitoring the status of the generator set
4)Good ventilation system and anti-heat radiation construction
5)Effective anti-vibration devices to ensure the generator set run steadily
6)Super silent materials inside to ensure the noise lower than 70 dB 7 meters away
7)Emergency stop button mounted outside
8)Side lockable door easy for maintenance and installation
9)Lube oil and cooling water drains piped to exterior of the canopy
Accessories:
Standard accessories: Standard 40 radiator mounted on kid. Common steel frame, circuit nreaker, damper, exhaust silencer, flexible pipe,battery and connecting wire, Standard tool skit, operation manual and document.
Optional accessories: Engine collant and oil heater, alternator space heater, cooling for heating exchange, communictaion interface, battery charger by main supply,, ATS and paralleling system,silent canopy and moving trialer
Service scope:
OEM service, special pattern design service, 12 months warranty service.
OEM service, special pattern design service, 12 months warranty service.
Factory Inspection, the test items before delivery are mainly as follows:
1. Each generator set should be put into commission more than 4 hours totally. They are tested on idle load, fully load and 10% overload.
2. The noise level is be tested.
3. All the metres on the control panel should be tested
4. The appearance of the gensets and all of the label and nameplate shall be checked.
1. Each generator set should be put into commission more than 4 hours totally. They are tested on idle load, fully load and 10% overload.
2. The noise level is be tested.
3. All the metres on the control panel should be tested
4. The appearance of the gensets and all of the label and nameplate shall be checked.
