3phase 6 cylinder electric generator diesel 800kva Specification :

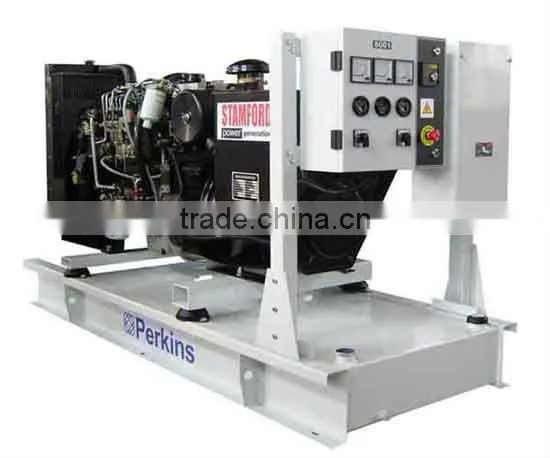

3phase 6 cylinder electric generator diesel 800kva
1. 3phase 6 cylinder electric generator diesel 800kva with stamford, Leroy Somer, Marathon ,and China brand alternator .
2.We supply spare parts during the whole service life.
3.One year warranty or 1500hours .Ane we are manufacturer with 2 factories in weifang city ,after sale service guranteed.
4.Perkins ,Cummins engine 750kva with global warranty .
5.Open frame type /Silent type /weatherproof type /Trailer type /Container type at your option.
| Genset Model | Open Type | SP640GF | ||||
| Silent Type | SP640GFS | |||||
| Prime Power(kW/kVA) | 640/800 | |||||
| Standby Power(kW/kVA) | 720/900 | |||||
| Diesel Engine | Model | 4006-23TAG3A | ||||
| Type | water-cooled,inline, 4-stroke,direct injection ,wet cylinder liner | |||||
| Rated Power(kW) | 705 | |||||
| Intake Type | Turbocharged | |||||
| No.of Cylinder | 6.L | |||||
| Bore x Stroke(mm) | 160x190 | |||||
| Compression Ratio | 13.6:1 | |||||
| Mechanical Governor Rate | 5% | |||||
| Electronic Governor Rate | 1% | |||||
| Noise Level (dBA) | 100 | |||||
| Exhaust Temperature(°C) | 514 | |||||
| Lub oil Capacity(L) | 62 | |||||
| Rated Fuel Consumption(L/h) | 94.1 | |||||
| Alternator | Model | XN6C | ||||
| Rated Power(kW/kVA) | 640/800 | |||||
| Power Efficiency | 93.6% | |||||
| Voltage Regulation | ±1.0 | |||||
| Excitation Type | Brushless | |||||
| Insulation Class | H | |||||
| Overall Size(mm) | Length | 4450 | ||||
| Width | 1750 | |||||
| Height | 2350 | |||||
| Gross Weight(kg) | 4706 | |||||
3phase 6 cylinder electric generator diesel 800kva :
| a) Diesel engine with all accessories, 3 filter, electric systems | |||||||
| b) Alternator | |||||||
| c) Steel structure | |||||||
| d) Fan and water tank cooling system | |||||||
| e) Flange connector | |||||||
| f) 12 / 24V starting motor and charge engine | |||||||
| g) Air cleaner, fuel cleaner, oil cleaner | |||||||
| h) On-board control panel | |||||||
| i) MCCB air conservation switch | |||||||
| j) 12 / 24V starting accumulator and battery line | |||||||
| k) Set shock absorber | |||||||
| l) High-efficient silencer |
3phase 6 cylinder electric generator diesel 800kva Control Panel :
a)Automatic alarm system:The unit has the acousto-optics alarm system and arrestor for any situation as the start defeat,the water is over temperature,the oil pulls down,over speed,over load and over current.
b)Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
2)Starting system :starter is used to start engine
3)Short circuit protection :MCCB air switch
4)Cooling system :combined cooling water tank fitted to meet the requirment of radiation at ambient temperature 40
5)Filter system :Oil,fuel and air filter
6)Accessories:exhaust elbow,bellow ,muffler
| Q: Could I use my own LOGO or design on goods? |
| A: Yes, customized logo and design are available. |
| Q: Can I choose the color of diesel generator? |
| A: Yes, customized color is available. |
| Q: What is the delivery time? |
| A:10-25days. |
| Q: How to installation diesel generator? |
| A: Overseas engineering service available. |
| Q: what is the payment term? |
| A: TT, LC at site, Western Union etc. |
