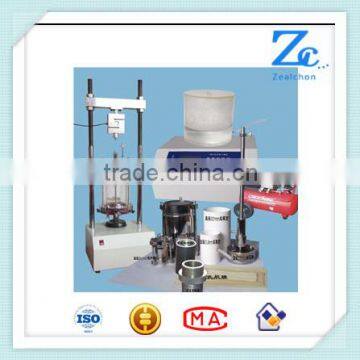

unsaturated soil AUTO triaxial test ,triaxial test apparatus,triaxial soil test

FOB Price

USD $1 - $800 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Tianjin Shanghai Guangzhou Xiamen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China	Brand Name	Zeachon
Model Number	C129	Power	Electronic
Usage	Other, triaxial apparatus

Product Description

Specifications

1,unsaturated soil AUTO triaxial test ,triaxial test apparatus,triaxial soil test
2, Durable

Main feature

Name: unsaturated soil AUTO triaxial test ,triaxial test apparatus,triaxial soil test

-It is the expansion of the traditional triaxial test. It is mainly used to study soil that is above characteristics underground water level. It can simulate the scene of the reaction condition and saturated state.
-Standard test simulate axial and radial stress, pore water pressure, Pore pressure test of saturated soil and unsaturated sample in actual state. (record the change of the data values simultaneously)

-It can automatically control parameters of axial stress, strain, pore water pressure,pore air pressure, radial pressure, volume change. It also can complete linear change and unsaturated soil test

-It uses back pressure and air pressure to test sample. It can do Unsaturated soil test under In addition to fully saturated conditions.

-The system measure axial force displacement strain, radial stress (volume change), pore water pressure, Reading table gas pressure, differential pressure by Computer, control instrument, software, display storage, Drawings,

technical parameters

parameters	details
test size	¢39.1mm ¢61.8mm
Rate	0.001mm—4.8mm/min stepless speed regulation
axial force	0-10KN 0-30KN 0-60KN
Axial force strain (displacement)	0-15mm±0.001mm
transubstantiation	0-100ml±0.01ml
radial direction(Confining pressure)	0-2MPa±0.01kPa can set as constant
back pressure water pressure	0-2MPa±0.01kPa 0-2MPa±0.01kPa can set as constant
pore water pressure	0-2MPa±0.01kPa,can set as constant
pore air pressure	0-2MPa±0.01kPa,can set as constant
Voltage	220V±5V 50Hz
power	2.5kW
Terracotta panels	0-50kPa water pressure below 0-1MPa gas pressure above

Company Picture

Lab Picture

Certification

Packaging & Shipping

Packaging Details: Wooden Box

Shipping Delivery: Sea & Air Transportation
