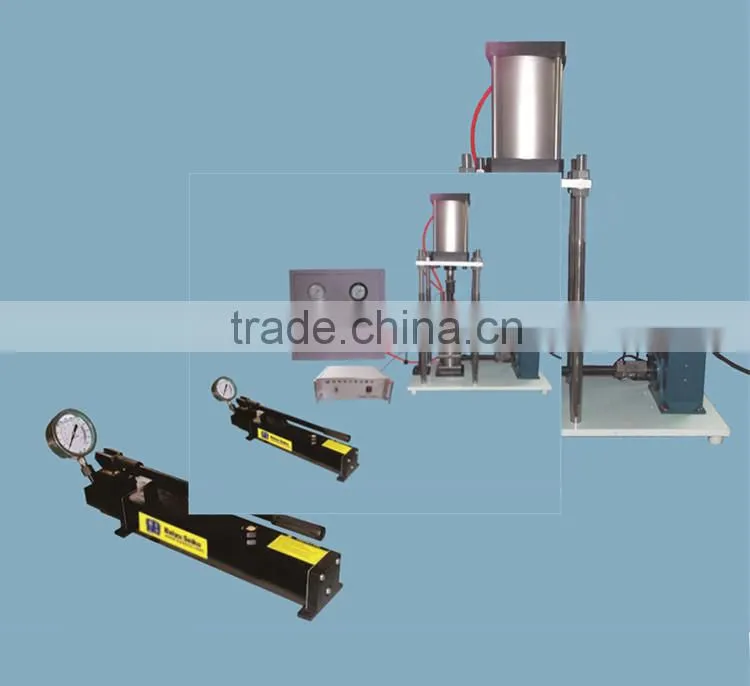

Help CenterC062 Hand Hydraulic Rock Direct Shear Apparatus YZJ - 2
Related Products
-
C063 - A Hot Sale Indoor Lab Rock Sampler TesterUS$ 200 - 1,000MOQ: 1 Piece -
C065 Digital Automatic Rock Point Load TesterUS$ 900 - 2,000MOQ: 1 Piece
-
C066 Lab Aggregates Accelerated Polishing MachineUS$ 1,600 - 1,700MOQ: 1 Piece
-
C067 Civil Laboratory Coarse Aggregate Doria Din Abrasion TesterUS$ 1,200 - 2,000MOQ: 1 Piece
-
Concrete Core Cutting MachineUS$ 800 - 900MOQ: 1 Piece
Specifications

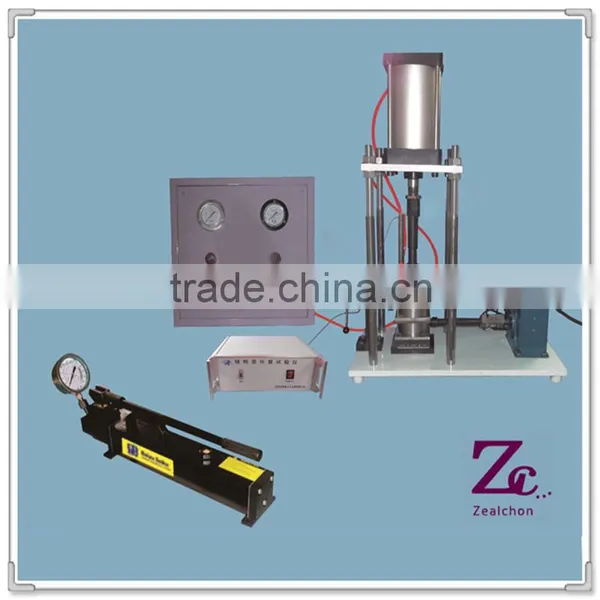

1,Calculate the relationship of normal stress and shear when rock2,C062 Hand hydraulic rock direct shear apparatus YZJ -
Rock direct shear test is horizontal shear a group rock specimens of same type under different normal load, according to the coulomb's law expression to determine the rock shear strength parameters. This experiment is suitable for rock structure plane (such as the joint surface, bedding face, schistosity planes and cleavage surface, etc.), rock and concrete, mortar and bond direct shear test.
| Technical Parameters | |
| Parameter Names | Details |
| Test size | ¢50 mm x 50 mm (square: 70 mm * 70 mm * 70 mm / 150 mm * 150 mm * 150 mm optional) |
| Pressurized hydraulic | 300KN |
| Vertical deformation | 0-12.7mm±0.001mm |
| Horizontal shear load | 500KN |
| Horizontal displacement digital display | 0-12.7mm±0.001mm |
| Work mode | Hand hydraulic loading pump maximum load 60MPa |
| Sample shear box material | Made by high strength steel |
| High cleaning machinery hydraulic oil NO.46 | |
| Packaging Detail: | YS C049 - A Rock triaxial compression tester is packed by standard wooden case |
| Delivery Detail: | 20 days after payment confirmed |
Xi’an Zealchon Electronic Technology Co.,Ltd adhering to the "professional, honest, and providing the best service" business philosophy, with the guidance of professors and researchers from the Well-known institutions in China, developed a series of leading domestic and international standards, Technology class detecting instrument for asphalt and asphalt mixture, Road, bridge deck, geotechnical, structural, etc and OEM designed 12 series more than 100 kinds of laser productswith high power and long service time.
