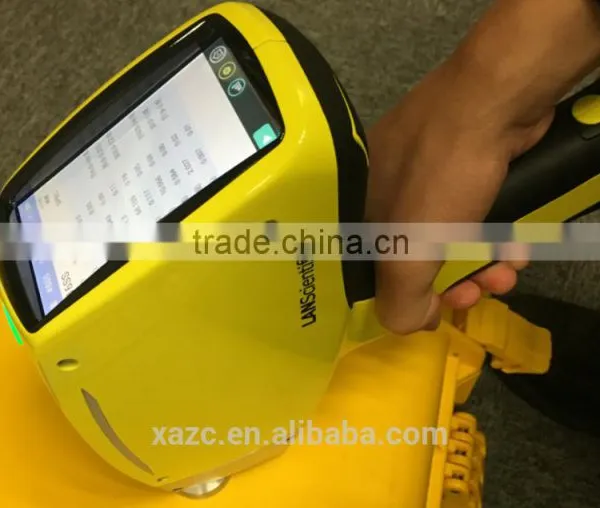

X3G800 Portable stainless steel xrf Analyzer

Elements can be analyzed

-------------------------------------------------- ------------------------------

Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Zr, Nb, Mo, Hf, W, Ta, Re, Pb, Ag, Sn, Bi, Sb, and the standard configuration of elements can be realized advanced customization, user added or modified to suit the use of specific environment.

Alloys can be analyzed

-------------------------------------------------- ------------------------------

 Ferroalloy series: stainless steel, chrome / molybdenum alloy steel, low-alloy steel

Nickel-based alloy series: nickel alloys, nickel / cobalt superalloys

Cobalt-based alloy series

 Titanium-based alloy series

Copper-based series: bronze, brass, copper-nickel alloy

 High temperature alloys: molybdenum tungsten alloy

Aluminum

Solutions

-------------------------------------------------- ------------------------------

 Metal identification / scrap metal sorting

 QA / QC management metal production, processing and manufacturing casting, etc.

 Pharmaceutical and biomedical

 Cathode material identification, petroleum refining and petrochemical industries

The main function

-------------------------------------------------- ------------------------------

It can be used to detect the carbon content of chromium in the detection accuracy of 0.03% of the content - for assessment velocity-promoted corrosion (FAC) of.

 It can be used for analysis of iron-based alloys, nickel-based alloys, cobalt based alloys, copper alloys, titanium-based alloys, mixed alloys.

Can accurately identify a variety of complex alloys, such as 304 and 321, P91 and 9 chromium, titanium and titanium seven.

It can be used to identify thousands of different alloy grades. The standard library includes 250 kinds of alloys, the user can customize the 300 kinds of alloys, according to the common name of various alloys, various properties of a unified standard number (UNS), the American Society of Mechanical Engineers number (ASME), and military norms retrieval .

The X3G Knows Metal and Alloys

When you need a reliable analysis tool to provide fast and accurate Positive Material Identification, turn to the X3G. From turnings, shavings, rods, and wires to small parts and components, to more sizeable material or structures, the X3G provides anywhere, anytime testing with faster and more accurate results than ever before.

Specifications

Model: X3G800
Weight: 1.5 kg with batteries
Dimensions: 30cm(L)*23.5cm(W)*9.8cm(H)
Excitation Source: X-ray tube with Ag target; max voltage 50KV
Filters Five (5) available automatic filter positions
Detector: Peltier cooled 10 mm2 Silicon Drift Detector
Power: 2 rechargeable Li-Ion batteries; 6 hours operation per battery; AC adapter is optional
Operating Range: -10°C to 50°C
Computer/Display: with  65,536 colors; back lit; touch screen
Testing Modes Assay and Pass/Fail
Calibrations
Universal (automatically selects proper calibration); Polyethylene plastics; PVC
plastics; Mid-density (glass, ceramics); Alloys; Solders
Data Storage: 16GB standard memory.
Radiation Safety Password protected, No sample (backscatter) shutoff, five minute inactive log-in
Languages Supported: English, Chinese and other 5 languages
Warranty: One year

Standard Accessories

Waterproof Carrying Case

Two (2) Li-ion Batteries

User Interface Guide

Mini USB Cable

316 Stainless Steel Calibration Check Reference Coin

Integrated Wrist Strap

Analyzer Software

Factory Authorized Training and Support
