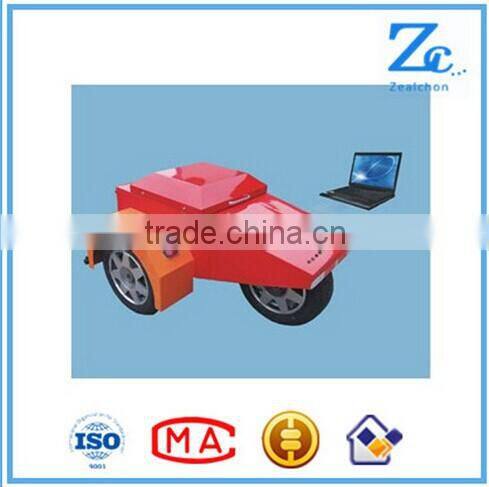

B002 Pavement Roughness Testing Equipment (viameter),Profilometer
US$ 1,000 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
Zealchon
Model Number:
B002
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
B004 Vehicular Laser Pavement Roughness Meter/Pavement ProfilometerUS$ 1,000 - 2,000MOQ: 1 Set -
B011 Pavement Moisture Permeation Apparatus/Pavement Moisture PermeameterUS$ 100 - 500MOQ: 1 Set
-
B027 Electric Sanding Device(measuring Pavement Structural Depth)US$ 1,000 - 2,000MOQ: 1 Set
-
B033 Pavement Deflectometer(Benkelman Beam) Benkelman RulerUS$ 100 - 200MOQ: 1 Set
-
C117 YCD-2 Scene Loading Plate Soil Base Rebound Modulus Tester/CBR on SiteUS$ 2,000 - 3,000MOQ: 1 Set
Place of Origin
Shaanxi, China
Brand Name
Zealchon
Model Number
B002
Power
Electronic
Usage
Other, surface roughness test equipment
Product Description
Main feature
Continuous flatness gauge is used to measure the σof surface roughness , expressed in mm, calculation interval length is 1000 m and printing results is convenient (less than 100 m press close button to print the results).
technical parameters
| parameters | details |
| Flatness meter testing baseline length | 3 m error: ± 1% |
| Sensors | 0-25 mm ± 0.01 mm |
| Working environment | - 10 °C~+ 40 °C |
| Sampling spacing | 0.1 m |
| The maximum speed | 25 km/h |
| Appearance size | 4061 * 600 * 600 (mm) |
| Elongation | 4061 mm |
| Shorten | 2450 mm |
| Voltage | 12 V Built-in battery, work for 12 h |
| Apparatus, weight | 235 kg |
| Controller weight | 6 kg, can be used in setting road number, pile number of mileage number |
| sampling interval | 0.1 m error: 0.1 mm |
| resolution | 0.01 mm |
| Out-of-tolerance setting | 0-15 mm k + k - positive and negative value H ,unit ,mm ;cumulative value s,unit, cm2 |

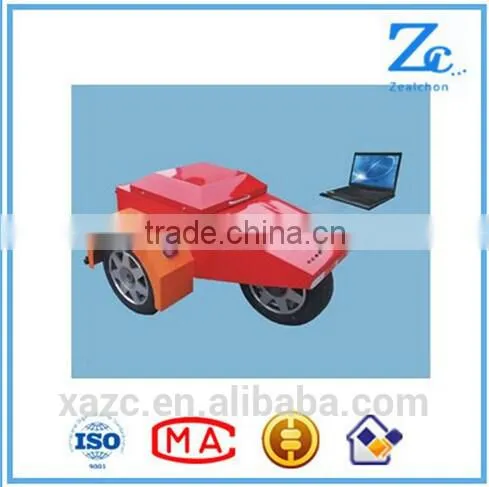

Product pictures:
Packaging & Shipping
Our Services
The warranty is one year, within 1 year, if there is any problems, we will follow you to slove it, and could do the
replacement for the parts and accessoires.
if still does not working after checking, the machine could be send back.
Anyway, we will try our best to make sure your after-service is totally fufilled if there is any concern
