B027 Electric sanding device(measuring pavement structural depth)
The instrument used to measure depth of asphalt pavement and cement concrete road surface construction, evaluate the macro structure of the airports, ports, DAMS, road surface.
|
YLPY-3 Electric sanding method of pavement structure depth tester YLPY – 3
|
Manual sanding method of pavement structure depth tester |
12V power source: 12V |
Measuring tube closed at one end, volume: 25ml±0.15ml |
boundary dimension470mm×160mm×140mm |
boundary dimension470mm×160mm×140mm |
The sand funnel driving range: 290mm |
Push plate aluminum diameter length50mm height: 86mm rubber sheet thickness 1.5mmΦ50mm |
Sanding move rate 9-15mm/s |
wind screen 300mm×300mm×300mm |
Sand funnel opening width 2.7mm, Sanding belt size 50mm thickness: 4mm |
Special sand, The amount of sand 0.15-.03mm, autogamy |
The capacity of sand funnel170ml, The amount of sand 0.15-.03mm, autogamy |
The special rubber feet length 180mm width 100mm height 100mm |
The capacity of Standard measuring cylinder 50ml |
measure gauge 0mm-300mm |
wind screen 300mm×300mm×300mm |
|

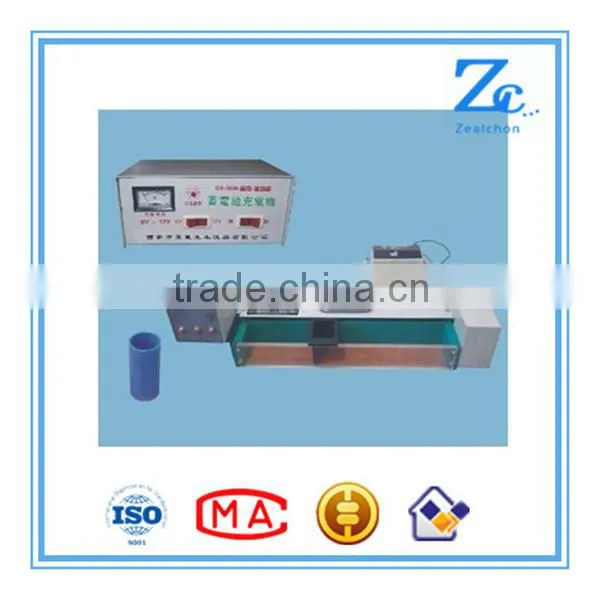

Product picutres:
