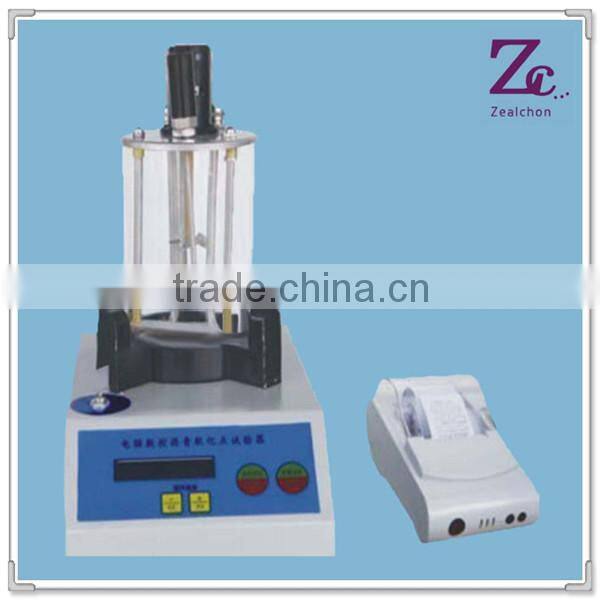

automatic computer petroleum asphalt softening point YLRH-2,softening point testing machine
Technical parameters
| 1.ITEM NUMBER | A3-2 |
| 2. Measuring Range | -5-270°C |
| 3. Test range | 5-180 °C |
| 4. Heating rate | (5 ± 0.5 )°C / min |
| 5. Heating method | heating speed is controlled by PID |
| 6. Detection way | automatic test, manual test |
| 7. Steel ball quality | 3.5 g ±0.05 g |
| 8. Ball diameter | 9.53 mm |
| 9. Boundary dimension | 330 * 230 * 520mm |
| 10. Ball sinking | 25.4 mm |
| 11. Timing range | 0-99 points in 99 seconds |
| 12. Temperature measuring accuracy | 0.1 °C |
| 13. power | 1KW |
| 14. External Dimension | 340 *230*340mm |
| 15. Weight | 4.5 kg |
| 16. power supply voltage | 220V |
| 17. ambient temperature | 5 ~ 40 °C |
| 18. environment humidity | ≤ 85% |
Main features
1. Temperature controlled by the instrument,one for the error.
2. Equipped with external temperature probe, reflecting the temperature sensitively.
3.The speed controlled with PID and fuzzy logic algorithm ,heating is linear.
4. The new appearance, more convenient to operate
5. High magnetic stirring device makes test temperature better distribution.
6. Automatic and manual, two ways to record the test results , the average can be calculated automatically.
7. With miniature printer can print the test results in real-time.
8. There are 232 connector can interface with microcomputer.
9. LCD display screen, can display temperature and time in real-time.
10. High temperature can be measured, medium is water or glycerin.
USAGE
It is used for testing asphalt’s softening underthe specified conditionsand the temperature of which drop at 25 mm, computer can control the heating rate, storage, processing, the test result can be stored and processed automatically.
