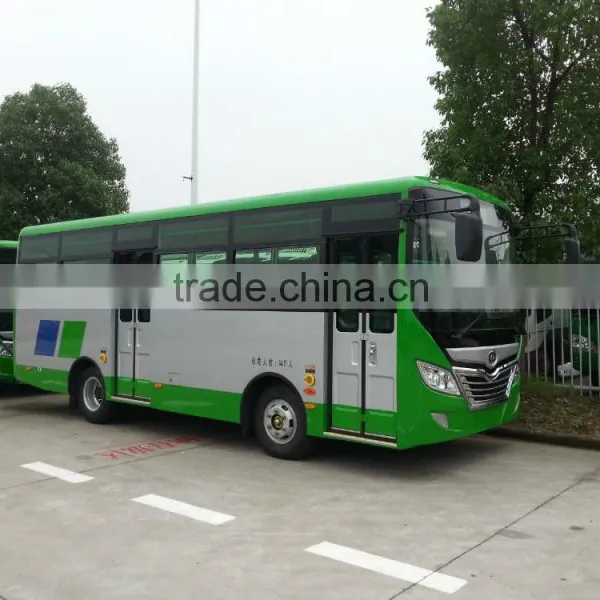

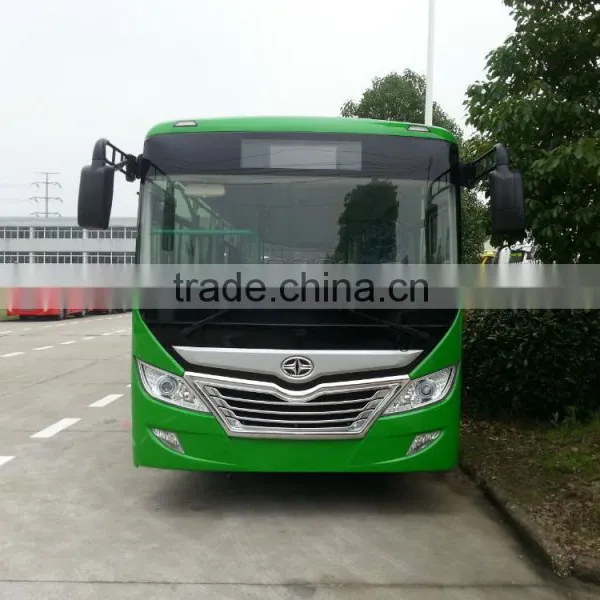

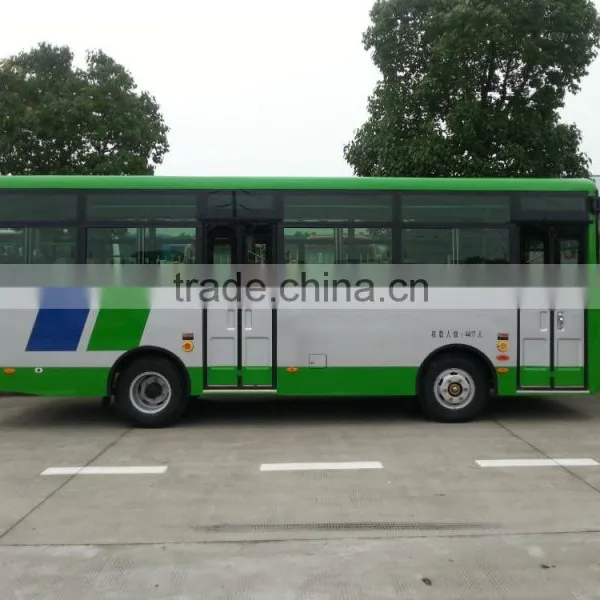

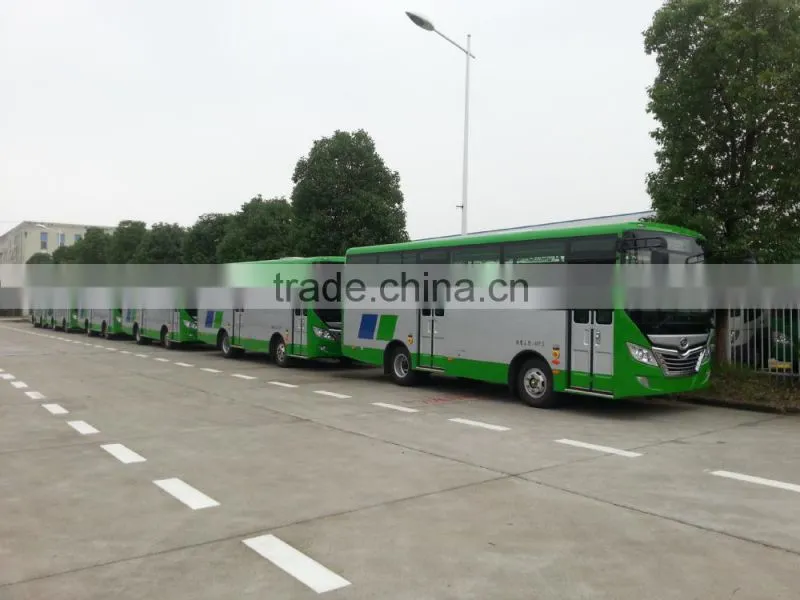

China New 7.3m 16-30 Seats Manual Front Engine City Bus

Name: China New 7.3m 16-30 Seats Manual Front Engine City Bus
Brand: HUAXIN
SKU: 109272297
Availability: InStock

US$ 17,800 - 35,000 MOQ: 2 Units

Key Specifications

Seats:

21 - 40

Emission Standard:

Euro 4

Transmission Type:

Manual

Wuxi Huace Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Seats 21 - 40

Emission Standard Euro 4

Transmission Type Manual

Max Speed 51 - 70 km/h

Steering Position LHD

Fuel Type Diesel

Dimensions (L x W x H) (mm) 7265*2265*2855/3090

Place of Origin Jiangsu, China

Brand Name HUAXIN

Model Number HM6735CFD4J

Specifications
Model			HM6735CFD4J
DIMENSIONS & WEIGHTS
Overall dimension (mm)		Length	7265
		Width	2265
		Height	2855/3090
Wheelbase (mm)			3308
Thread (mm)		Front/rear	1830/1600
Curb vehicle weight (kg)			4450/4630
Gross vehicle weight (kg)			7450
Seating capacity (persons)			27(double doors)30(single door)
ENGINE
Model			YC4FA115-40(Euro IV)
Type			4-cylinder, in line, water-cooled, direct injection, diesel, turbocharged, inter-cooling
Displacement (cc)			2982
Max. Power (hp/rpm)			115/3200
Max. Torque (N-m/rpm)			300/1600-2400
Fuel tank (liter)			90
DRIVE TRAIN
Clutch			Hydraulic, Single plate, dry type diaphragm spring
Gearbox			5 speed manual
Max. gradeability (%)			30
CHASSIS
Frame			Ladder shaped, ‘] ’ section
Suspension, front/rear			Leaf springs 9/11
Shock absorber, front/rear			Double action shock absorbers
Steering			Recirculating-ball
Brake	Type		Air brake
	Front/rear		Drums
Power steering			With
Tires			7.50-16
FOB SHANGHAI
