Stainless Steel Submersible Pump Sewage Drainage Pump Multistage Pump

Stainless Steel Submersible Pump Sewage Drainage Pump Multistage Pump thumbnail-1
Stainless Steel Submersible Pump Sewage Drainage Pump Multistage Pump photo-1
US$ 25 - 800 MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
chaoqian
Theory:
Other
Contact Supplier Request Quote Chat Now
Zhuji City Chaoqian Pump Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name chaoqian
Theory Other
Structure Single-stage Pump
Usage Water
Power Other
Standard or Nonstandard Standard
Fuel Other
Pressure Other
Application Sewage

Characteristics&use range:

stainless steel structure

sing(three) phase power source

made of  standard AISI 304(ph value4-10)

made of standard AISI 316L (ph value0-12)



Feature:

SS pump casing

SS shaft

Mechanical seal: graphite to ceramic and silicon carbide to silicon carbide

Thermal overload protector in single phase motor



Model Head
m		 Capacity
m3/min		 Voltage,Frequency
V,Hz		 Output Power
KW/HP		 Discharge
Size
mm		 Packing Size
mm		 G.W
KG		 QTY/20"GP
Unit
QDX5-10-0.37B 5 MAX16 10 MAX13 220V/50HZ  380V/50HZ 0.37KW (0.49HP) 40 255*190*400 12 1500
QDX10-10-0.55B

10

MAX:20

10

MAX:13


220V/50HZ  380V/50HZ

0.55KW

(3/4HP)

  50  255*190*400  13  1384
QDX15-10-0.75B

15

MAX:24

10

MAX:14


220V/50HZ  380V/50HZ

0.75KW

(1HP)

  50  255*190*400  15  1200



Model

capacity m3/h

head m

v/hz

output power kw/hp

discharge size mm

NW kgs

GW kgs

Packing size mm

Qty/20" GP

WQ7-7-0.55KW

7 Max:15

7 max:9

220V/50Hz  380V/60Hz 115V/60Hz 127V/60Hz

 0.55kw(3/4 hp)

 65

 9.5

 10

 230*230*510

 1110

WQ20-5-0.75KW

20 Max:25

5 max:10

220V/50Hz  380V/60Hz 115V/60Hz 127V/60Hz

 0.75kw/1hp

 65

 11.5

 12

 230*230*525

 1110

WQ5-15-0.75KW

5 Max:10

15 max:20

220V/50Hz  380V/60Hz 115V/60Hz 127V/60Hz

 0.75kw/1hp

65

11.5

 12

 230*230*525

 1110

WQ10-7-0.75KW

10 Max:20

7 max:12

 220V/50Hz  380V/60Hz 115V/60Hz 127V/60Hz

 1.1kw/1.5hp

 65

 11.5

 12

 230*230*525

 1110

WQ7-15-1.1KW

7 Max:15

15 max:17

 220V/50Hz  380V/60Hz 115V/60Hz 127V/60Hz

 1.1kw/1.5hp

 65

 13

 13.5

 230*230*535

 1110

WQ10-10-1.1KW

10 Max:15

10 max:16

 220V/50Hz  380V/60Hz 115V/60Hz 127V/60Hz

 1.1kw/1.5hp

 65

 13

13.5

 230*230*535

 1110

WQ15-7-1.1KW

15 Max:20

7 max:12

 220V/50Hz  380V/60Hz 115V/60Hz 127V/60Hz

 1.5kw/2hp

 65

 13

13.5

 230*230*535

 1110

WQ10-15-1.5KW

10 Max:20

15 max:18

 220V/50Hz  380V/60Hz 115V/60Hz 127V/60Hz

 1.5kw/2hp

 65

 14

 14.5

 230*230*540

 1000

WQ15-10-1.5KW

15 Max:25

10 max:15

 220V/50Hz  380V/60Hz 115V/60Hz 127V/60Hz

 1.5kw/2hp

 65

 14

 14.5

 230*230*540

 1000

WQ25-7-1.5KW

25 Max:30

7 max:12

 220V/50Hz  380V/60Hz 115V/60Hz 127V/60Hz

 1.5kw/2hp

 65

 14

 14.5

 230*230*540

 1000





Technical Data
Model Head
m		 Capacity
m3/min		 Voltage,Frequency
V,Hz		 Output Power
KW/HP		 Discharge
Size
mm		 Packing Size
mm		 G.W
KG		 QTY/20"GP
Unit
QDN25-6-0.75KW

25

MAX:33

6

MAX:10

 220V/50Hz,220V/60Hz
380V/50Hz,110V/60Hz		 0.75KW
(1HP)		 50 220x220x460 13.3 1300
QDN15-14-1.1KW

15

MAX:20

14

MAX:17

 220V/50Hz,220V/60Hz
380V/50Hz,110V/60Hz		 1.1KW
(1.5HP)		 25 140x140x335 5.2 3461
QDN25-9-1.1KW

25

MAX:40

9

MAX:12

 220V/50Hz,220V/60Hz
380V/50Hz,110V/60Hz		 1.1KW
(1.5HP)		 25 140x140x380 6.5 2769
QDN40-6-1.1KW

40

MAX:50

6

MAX:10

 220V/50Hz,220V/60Hz
380V/50Hz,110V/60Hz		 1.1KW
(1.5HP)		 40 165*165x375 7.6 2368
QDN3-25-0.55KW 3
Max:11		 25
Max:27		 220V/50Hz,115V/60Hz
380V/60Hz,127V/60Hz		 0.55KW
(3/4HP)		 40 165x165x380 8.5 2117
QDN3-30-0.75KW 3
Max:12		 30
Max:33		 220V/50Hz,220V/60Hz
380V/50Hz,110V/60Hz		 0.75KW
(1HP)		 50 220x220x445 12.3

1300
QDN3-35-11KW

3
Max:12

35
Max:38

 220V/50Hz,220V/60Hz
380V/50Hz,110V/60Hz

 1.1KW

(1.5HP)

  50  220*220*445  12.9  1300
QDN6-24-1.1KW 6
Max:20		 24
Max:28		  220V/50Hz,220V/60Hz
380V/50Hz,110V/60Hz

1.1KW

(1.5HP)

  50  220*220*485  16  1300
QDN8-20-1.1KW 8
Max:20		 20
Max:25		  220V/50Hz,220V/60Hz
380V/50Hz,110V/60Hz

1.1KW

(1.5HP)

  50  220*220*485  16  1300
QDN6-30-1.5KW

6

MAX:16



30

MAX:33

  220V/50Hz,220V/60Hz
380V/50Hz,110V/60Hz

1.5KW

(2HP)

  50  220*220*530  17  1058
QDN10-20-1.5KW

10

MAX:25

20

MAX:25

  220V/50Hz,220V/60Hz
380V/50Hz,110V/60Hz

1.5KW

(2HP)

  50  220*220*530  17  1058
QN10-32-2.2KW

10

MAX:30

32

MAX:38


380V/50Hz

2.2KW

(3HP)

  65  200*240*640  28  642
QN15-34-3KW

15

MAX:33

34

MAX:38


380V/50Hz,

3KW

(4HP)

  65  200*240*660  30  600

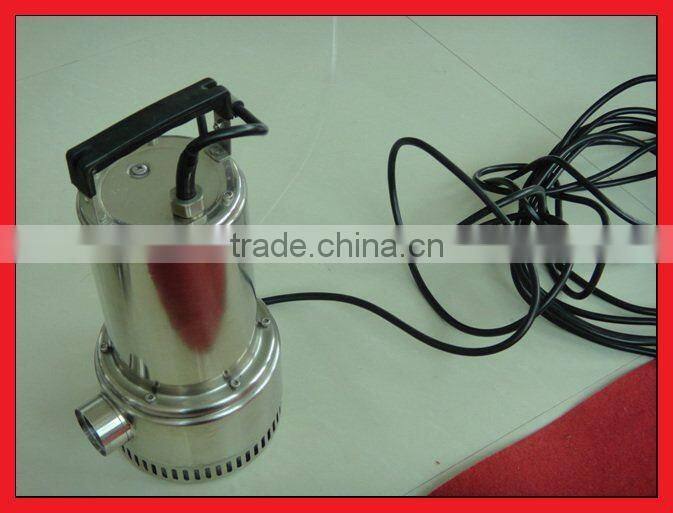

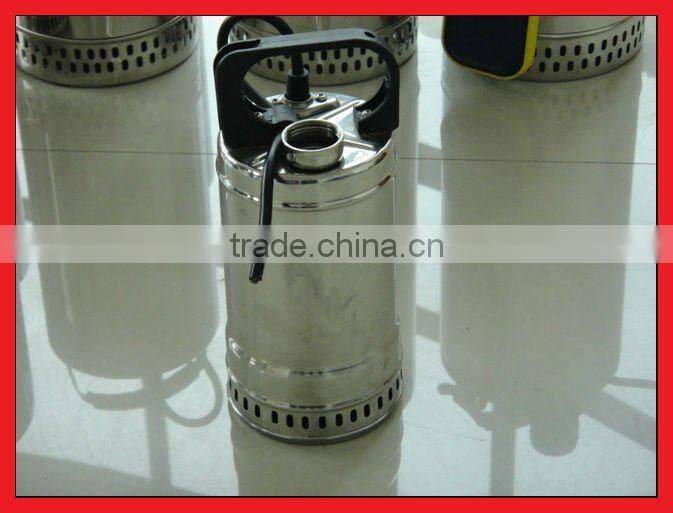

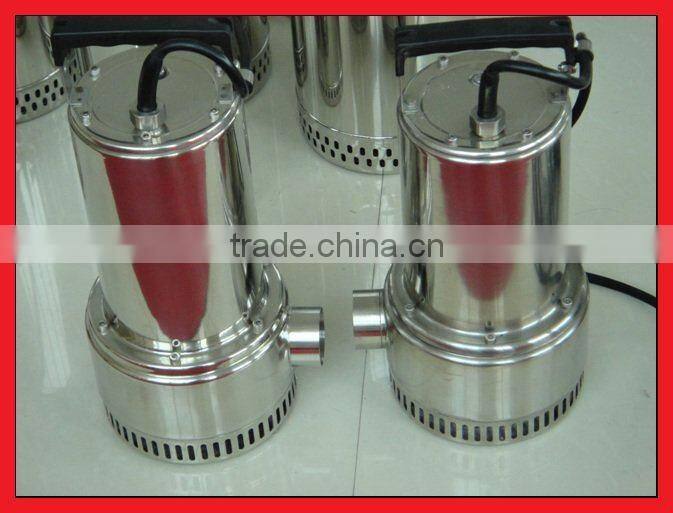

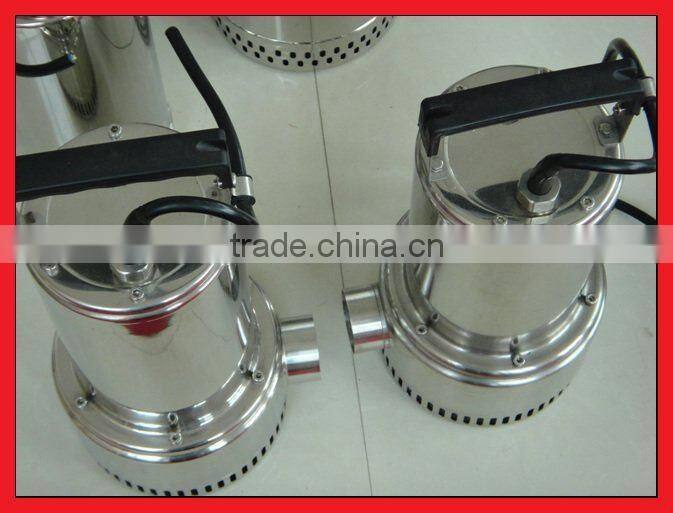

Stainless steel submersible pump sewage drainage pump multistage pumpStainless steel submersible pump sewage drainage pump multistage pumpStainless steel submersible pump sewage drainage pump multistage pumpStainless steel submersible pump sewage drainage pump multistage pumpStainless steel submersible pump sewage drainage pump multistage pumpStainless steel submersible pump sewage drainage pump multistage pumpStainless steel submersible pump sewage drainage pump multistage pump



Stainless steel submersible pump sewage drainage pump multistage pump



Stainless steel submersible pump sewage drainage pump multistage pumpStainless steel submersible pump sewage drainage pump multistage pumpStainless steel submersible pump sewage drainage pump multistage pumpStainless steel submersible pump sewage drainage pump multistage pump
